Your monitor drops to 8-bit at 4K 120Hz over HDMI because the full video signal may exceed what the GPU, HDMI port, cable, monitor mode, or chroma setting can carry together. The fix is usually to change the output format, use DisplayPort, verify HDMI 2.1 support end to end, or accept 8-bit for SDR gaming, where it often has little visible penalty.
Is your premium 4K screen suddenly showing “8-bit” the moment you switch to 120Hz, even though HDR and deep color were the whole reason you bought it? In real setup checks, the most reliable win is confirming the entire signal chain before blaming the panel: source, GPU output, cable, port, refresh rate, HDR mode, and monitor firmware all matter. You’ll get a clear way to decide whether this is a real image-quality problem, a bandwidth tradeoff, or just a settings label that looks scarier than it is.
The Short Version: 4K 120Hz Is a Heavy Signal
A 4K 120Hz signal asks your display link to move a lot of data. At 3840 x 2160, the screen is refreshing about 8.3 million pixels 120 times per second, and every bump in color depth or chroma quality increases the load. That is why a monitor can run 4K 60Hz at 10-bit, then fall back to 8-bit when you enable 120Hz or 138Hz over HDMI.
Color depth is only one part of the equation. A modern 8-bit signal usually means 8 bits per RGB channel, which gives 256 tonal steps per channel and about 16.7 million color combinations. A 10-bit signal increases that to 1,024 steps per channel and about 1.07 billion combinations, which helps most with gradients, HDR highlights, fog, skies, shadows, and color grading.
The reason this feels inconsistent is that HDMI branding does not always tell the whole story. A monitor may advertise HDMI 2.1, but the GPU port, cable quality, monitor input mode, supported chroma formats, and firmware behavior still decide what combination of resolution, refresh rate, color depth, and HDR actually works.
What “8-bit” Really Means in Windows and GPU Panels
When your operating system or GPU control panel says 8-bit, it usually means 8 bits per color channel, not “8-bit color total.” That distinction matters because many users remember older “32-bit color” desktop menus and assume 8-bit means an outdated color mode. In normal desktop language, 8-bit RGB is still full modern SDR color for most office work, browsing, spreadsheets, coding, streaming, and competitive gaming.
The problem becomes more meaningful when HDR is enabled. HDR10 content typically benefits from 10-bit output because the whole point is smoother tone mapping across a wider brightness range. If you see banding in a sunset, smoke effect, dark game menu, or bright HDR skybox, 8-bit output can be part of the problem, though compression, poor HDR mastering, game settings, gamma, and monitor processing can also cause banding.
For text-heavy work, chroma format can matter more than bit depth. Full 4:4:4 chroma keeps colored text edges and fine UI lines sharp, while reduced chroma can make desktop text look slightly smeared. That is why a clean 4K 120Hz 8-bit RGB or 4:4:4 signal can feel better for productivity than a 10-bit mode that forces compromised chroma.
Why HDMI Drops to 8-bit at 4K 120Hz
The common cause is bandwidth negotiation. Your GPU and monitor exchange supported modes, then the driver exposes combinations that should be stable. If 4K 120Hz plus 10-bit plus full chroma plus HDR is too much for any part of the chain, the driver may reduce bit depth to 8-bit, reduce chroma, lower refresh rate, or hide the mode entirely.
This is why the same monitor may behave differently over DisplayPort. One 42-inch OLED monitor report described HDMI 2.1 being limited to 8 bpc at 138Hz with HDR enabled, while DisplayPort allowed 138Hz and 10 bpc at the same refresh rate. That does not prove every HDMI implementation is flawed, but it shows the right troubleshooting mindset: compare ports instead of assuming the panel itself is the limit.
High-end 4K gaming monitors are now pushing combinations like 4K, 240Hz, OLED response times, HDR, and console-ready HDMI support. Modern 32-inch 4K OLED models with a 240Hz refresh rate make bandwidth planning more important than it was in the 4K 60Hz era. The more ambitious the mode, the more every link in the chain matters.
Is 8-bit Actually Bad for Gaming?
For SDR competitive gaming, 8-bit is often fine. Refresh rate, response time, input lag, adaptive sync, frame pacing, and visibility in dark scenes usually affect performance more than the jump from 8-bit to 10-bit. If you play shooters at 4K 120Hz with SDR enabled, staying at 8-bit can be a rational choice if motion is clean and text remains sharp.
For immersive HDR gaming, 10-bit becomes more valuable. Open-world skies, neon lighting, fog, volumetric effects, and shadow gradients can reveal banding faster than a spreadsheet or web page. The value is not that your eye separately identifies a billion colors; it is that the display has finer tonal steps between colors, so transitions look less posterized.
Use case |
8-bit at 4K 120Hz |
10-bit at 4K 120Hz |
Office work and coding |
Usually excellent if chroma is full |
Nice to have, rarely decisive |
Competitive SDR gaming |
Often the smarter performance choice |
Lower priority than refresh and latency |
HDR gaming |
Can show banding in gradients |
Preferred when the full chain supports it |
Photo and video work |
Acceptable for casual edits |
Strongly preferred for serious color work |
Console play |
Depends on console and monitor mode |
Best for HDR when stable |
For serious 4K gaming, sharpness, high refresh, low response time, adaptive sync, and at least a 120Hz refresh rate are usually core priorities. That stack is useful: do not sacrifice a stable, responsive 120Hz experience just to force 10-bit if the result is flicker, blank screens, or reduced text clarity.
The Practical Fix Path
Start by checking the port and cable. Use the monitor’s highest-bandwidth HDMI input, not a secondary HDMI port with lower capabilities. Use a certified ultra-high-speed HDMI cable when using 4K 120Hz, especially with HDR. A cable that works at 4K 60Hz is not automatically stable at 4K 120Hz with deeper color.

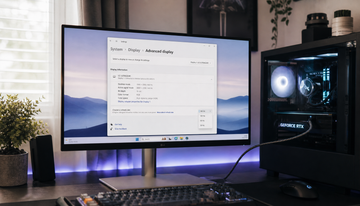

Next, open your GPU control panel. Look for the display settings where you can choose resolution, refresh rate, output color format, output color depth, dynamic range, pixel format, or similar options. The target for desktop clarity is usually RGB or YCbCr 4:4:4 with full range when available. If 10-bit only appears when you lower refresh rate, the system is telling you the current mode is bandwidth-limited or firmware-limited.
Then test a deliberate tradeoff. Try 4K 120Hz 8-bit RGB, then 4K 120Hz 10-bit with any available chroma option, then 4K 100Hz or 4K 60Hz 10-bit RGB. If 10-bit appears only at lower refresh rates, the monitor is probably functioning normally within its supported signal modes. If DisplayPort gives you 10-bit at the same refresh rate, use DisplayPort for PC gaming and reserve HDMI for consoles.
Do not ignore firmware and drivers. Monitor firmware can affect HDMI behavior, HDR handshakes, and mode tables. GPU drivers can also change what modes are exposed. If the monitor previously supported 10-bit at 4K 120Hz and suddenly stopped after a driver or firmware change, moving to the newest stable release is usually safer than chasing random color profiles.
HDMI vs DisplayPort: Which Should You Use?
For a desktop gaming PC, DisplayPort is often the cleaner path when the monitor supports the refresh rate and color depth you want. It can avoid some HDMI handshake quirks and may expose PC-focused timings more consistently. In one practical example, DisplayPort delivered the desired high-refresh 10 bpc mode when HDMI did not.
For consoles, HDMI remains the required path for 4K 120Hz output. That means console users need to be more careful when buying. Top 4K gaming monitors may support modern console features through HDMI and higher-bandwidth DisplayPort standards, but the exact feature set still depends on the monitor model and input implementation.
Office users should weigh this differently. If your day is split between spreadsheets, meetings, browser tabs, and a little after-hours gaming, USB-C docking, ergonomics, KVM, and text clarity may matter more than 10-bit at 120Hz. Monitors with USB-C docking can replace a separate dock, which may be a bigger daily upgrade than deeper color in SDR apps.
When You Should Upgrade Hardware
Upgrade only after you identify the bottleneck. If your GPU lacks the needed HDMI capability, a new cable will not fix it. If your monitor’s HDMI input is limited but DisplayPort works, a new monitor is unnecessary unless you specifically need HDMI for a console. If 10-bit appears at 60Hz but not 120Hz, the monitor may be operating exactly as designed.
A monitor upgrade makes sense when you need 4K high refresh, HDR, accurate color, and modern inputs all at once. Business-focused displays often prioritize comfort, connectivity, and sharp text, including screen size, pixel density, brightness, adjustability, and connectivity. Gaming-first displays prioritize motion, HDR, adaptive sync, and input bandwidth. The best choice depends on whether your pain point is color precision, motion clarity, desk simplicity, or console compatibility.
FAQ
Should I choose 10-bit 60Hz or 8-bit 120Hz?
For competitive gaming and general desktop use, 8-bit 120Hz is usually the better experience because motion and responsiveness are immediately visible. For HDR movies, photo editing, video grading, or visually rich single-player games, 10-bit 60Hz may look smoother in gradients and highlights.
Does 8-bit mean my monitor is defective?
Not by itself. Many displays and GPUs expose 8-bit at demanding refresh rates because that is the stable mode for the selected signal format. A defect is more likely if the monitor cannot reach advertised modes with a known-good cable, updated firmware, correct input, and supported GPU.
Is 8-bit + FRC the same as native 10-bit?
No. 8-bit + FRC rapidly alternates neighboring tones to simulate intermediate shades, and it can look close to native 10-bit in games and media. Native 10-bit is preferable for professional color work where repeatability and grading precision matter.
What setting matters most for sharp desktop text?
Full chroma, typically RGB or 4:4:4, matters a lot for text. If forcing 10-bit makes the driver use reduced chroma, a full-chroma 8-bit mode may look cleaner for office work.
Final Word
A drop to 8-bit at 4K 120Hz over HDMI is usually a signal-chain limit, not a failed monitor. Lock in the cleanest stable mode for your use: full-chroma 8-bit for fast SDR work and gaming, 10-bit for HDR and color-critical visuals, and DisplayPort when your PC monitor handles it better than HDMI.
