HDR Monitor Contrast: Fix Lost Bright Detail & Clipping

Raising contrast on an HDR monitor can make the image look punchier, but it can also push near-white tones past the display’s usable range. Once that happens, clouds, reflections, explosions, snow, white UI panels, and glossy highlights can collapse into flat white with little or no texture.

Ever raise contrast in an HDR game and notice that the sunlit sky, chrome reflections, or bright spell effects suddenly look less detailed instead of more realistic? A few calibration checks, including near-white test patterns and correct peak-brightness matching, can usually reveal the problem in minutes. Here is how HDR contrast works on monitors, why bright areas lose detail, and what to adjust before blaming the panel.

What Contrast Actually Does on an HDR Monitor

Contrast is the relationship between the darkest black and brightest white a monitor can show. A display with higher contrast can separate more tones between black and white, which is why OLED, mini-LED, and strong VA panels often look more dimensional than basic office displays. In general monitor terms, contrast ratio measures the gap between the deepest black and brightest white, while brightness describes how much light the screen emits.

In SDR, contrast adjustment is usually easier to understand: raise it too far, and bright gray steps begin merging into white. HDR adds another layer because the monitor is not just stretching a simple SDR signal. It must map a much wider brightness range into the panel’s real hardware limits.

HDR Uses More Brightness Data Than Many Monitors Can Show

HDR content may contain highlight information mastered for 1,000, 4,000, or even higher peak-brightness targets, while many desktop monitors cannot reproduce that full range in real scenes. As a result, HDR content carries more brightness, shadow, and color information than the display can always show directly, so the monitor, operating system, GPU, console, or game has to compress the signal through tone mapping.

That compression is not automatically bad. Good tone mapping keeps the bright object bright while preserving visible steps inside it. Bad or overly aggressive mapping turns a bright area into one flat value, so a sunlit cloud loses its layered edges, a white shirt loses fabric texture, or a muzzle flash becomes a plain white patch.

Why “More Contrast” Can Mean Less Detail

Higher contrast is useful only when the monitor still keeps tonal separation. Once near-white tones merge, the image may appear more intense at first glance but less informative. A practical way to spot this is with a white ramp test pattern: if the last few near-white boxes look identical, the monitor is clipping highlight detail.

White ramp test pattern showing near-white steps merging when contrast is set too high

This is why a contrast value such as 75 is not a universal best setting. Display behavior varies by panel type, HDR mode, firmware, and tone-mapping curve. A setting that works on a 600-nit gaming monitor may be too high on a portable HDR display, and an OLED ultrawide may need different handling in HDR black-level modes versus peak-brightness modes.

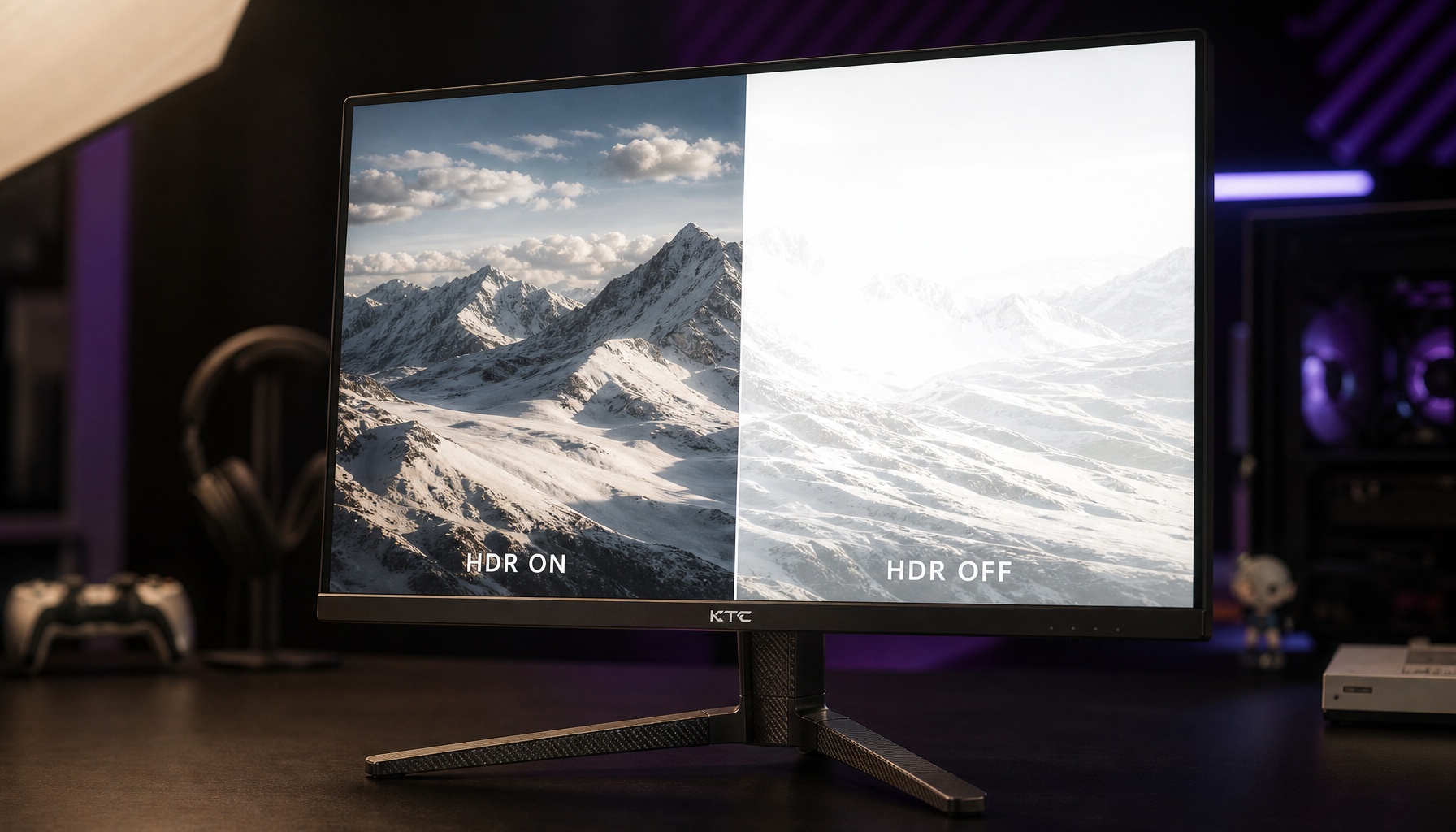

Why Bright Areas Lose Detail When Contrast Is Raised

Bright-area detail disappears when several near-white values are forced into the same output level. On-screen, that means different brightness steps are no longer visible as separate tones. The technical term is clipping, but the visible symptom is simple: “bright” becomes a single blank highlight instead of a textured highlight.

On monitors, this often appears in predictable places: white clouds, snowfields, glossy car paint, metallic reflections, bright HUD elements, fire, lightning, skyboxes, and specular highlights in games. In HDR movies, it can show up as blown-out lamps, faces lit by windows, or white clothing with no visible folds.

Contrast Controls the Bright End

Brightness and contrast are often confused, but they affect different parts of the image. Brightness is usually used to make dark details visible without making black areas look gray, while contrast changes the bright end. If contrast controls are pushed too high, the brightest steps can merge and highlight detail is lost.

For a gaming monitor, this can be especially noticeable because HDR games often include intense light sources and bloom effects. A racing game might look more dramatic with contrast raised, but the reflective road surface may lose fine wet texture. A sci-fi shooter may gain punch in neon effects, yet lose separation inside bright energy shields or white armor panels.

Tone Mapping Can Stack Up

Tone mapping can happen in more than one place. A console, PC GPU, game engine, operating system HDR pipeline, and monitor HDR preset may each apply some kind of brightness interpretation. When multiple systems try to “help,” tone mapping conflicts can compress luminance too hard, clip bright effects, crush shadows, or make colors look unnaturally dense.

A common example is setting an in-game HDR peak brightness target far above what the monitor can actually sustain. If a game is set to 2,000 nits on a monitor that peaks around 600 nits, the display has to compress the signal aggressively. The result can be harsh highlight roll-off, washed highlight texture, or bright effects that look intense but flat.

Local Dimming and Panel Limits Matter

LCD gaming monitors with mini-LED backlights can produce strong HDR highlights, but local dimming zones are still larger than many bright objects. A small starfield, white subtitle, or glowing UI icon may trigger different backlight behavior than a full-screen snow scene. That means highlight detail can shift depending on how much of the screen is bright.

Diagram showing mini-LED local dimming zones activating for small bright objects on a gaming monitor

OLED monitors handle pixel-level contrast differently because each pixel emits its own light, but they still have peak-brightness limits and automatic brightness behavior. On an ultrawide OLED, a small bright reflection may look excellent, while a large bright desktop window or snowy HDR scene may be tone-mapped down to protect power and heat limits.

Settings That Commonly Cause HDR Highlight Loss

The first setting to check is not always the monitor’s contrast slider. HDR highlight loss can come from the operating system, the game, the GPU control panel, the monitor’s HDR mode, or a mismatch between SDR and HDR settings. Treat the monitor as part of a chain, not as a standalone knob.

Operating system HDR also behaves differently depending on the display mode. On multi-monitor setups, HDR must be enabled for the selected HDR-capable display, and duplicated laptop-to-external-display mode does not support HDR in the same way as extended display mode. For a gaming laptop connected to an external HDR monitor, using “Extend these displays” is often the cleaner setup than mirroring the built-in screen.

The Most Common Problem Settings

Setting or Condition	What It Can Do to HDR Highlights	Practical Monitor Guidance
Monitor contrast set too high	Merges near-white tones into flat white	Use a white ramp pattern and lower contrast until near-white steps separate
Game peak brightness set above panel capability	Forces aggressive tone mapping	Match the game’s HDR peak to the monitor’s realistic peak brightness
Dynamic contrast enabled	Changes brightness processing scene by scene	Disable it during calibration; use certified HDR modes first
HDR simulation or vivid game preset	Boosts color and brightness beyond accurate mapping	Start from Standard, Custom, User, sRGB, or a certified HDR mode
Operating system HDR not calibrated	Incorrect black level or peak brightness mapping	Run the operating system’s HDR calibration tool
SDR brightness slider set poorly	Makes desktop SDR content look washed out or too dim in HDR mode	Adjust SDR content brightness separately from HDR peak settings
Multi-monitor HDR handshake issue	Can change clipping behavior or reported peak brightness	Test with only the HDR monitor active, then reconnect other displays

Dynamic contrast deserves special caution. Manufacturers may advertise extremely high dynamic contrast numbers because the monitor can adjust backlight or processing in real time, but dynamic contrast is not the same as stable native contrast in a mixed scene. For HDR calibration, consistency matters more than a dramatic marketing ratio.

Keep SDR and HDR Settings Separate When Possible

A setting that makes HDR games look vivid can make SDR content look wrong. Users switching between SDR and HDR games have reported that boosting contrast and color for HDR may make non-HDR content appear overly vivid afterward, especially when picture settings are not fully stored by content type. This issue is common enough that HDR and SDR picture settings are often discussed as needing separate handling.

On a monitor used for both work and gaming, this matters. You may want SDR mode to keep spreadsheets, browser windows, and creator tools neutral, while HDR mode should preserve highlight detail in games and movies. If your monitor lets you save profiles, keep one calibrated SDR profile and one HDR profile instead of constantly changing a single shared preset.

How to Calibrate HDR Without Blowing Out Bright Areas

A reliable calibration process is simple: warm up the display, remove image-processing tricks, set black level first, then set contrast and HDR peak brightness while watching test patterns. Do this in the same room lighting where you normally use the monitor. A bright room, a dark bedroom, and a daylight office can make the same display setting feel different.

Gamer calibrating HDR monitor contrast settings using a gray ramp test pattern

Before changing settings, let the monitor run for about 30 minutes. Then start from a neutral preset such as User, Custom, Standard, or sRGB when available. Disable Eco Mode, Dynamic Contrast, automatic brightness, black enhancers, eye-care modes, HDR simulation, and overly aggressive game presets before judging detail.

Use Test Patterns, Not Just Game Screenshots

Photos and game scenes are useful for final checking, but they are poor first tools because you may not know what detail should be visible. A gray or white ramp shows whether near-white steps stay distinct, while a PLUGE-style black pattern shows whether dark steps are crushed or lifted.

A good practical sequence is:

Set the monitor to the HDR mode you actually plan to use.
Confirm the operating system or your console is outputting HDR.
Set black level or brightness so the first useful dark steps are visible without making black look gray.
Set contrast so the brightest near-white steps remain separate.
Set the game’s HDR peak brightness close to the monitor’s real capability.
Recheck a real HDR scene with clouds, metal, fire, snow, or bright UI.
Save the profile if the monitor supports separate presets.

For gaming, also verify refresh rate after calibration. An operating system can default some displays to 60 Hz even when the monitor supports much higher refresh rates, and an operating system may default to settings that make a new monitor look underwhelming out of the box. On a 144 Hz, 165 Hz, 240 Hz, or higher-refresh monitor, HDR quality and motion settings both need checking.

Use an HDR Calibration Tool When Available

An operating system’s HDR calibration app can help set peak brightness, black level, and tone mapping for supported displays. It is especially useful when a monitor looks washed out, clips too early, or behaves differently after changing cables, GPU settings, or display modes. It does not replace the monitor’s own OSD settings, but it helps the operating system understand the display’s usable HDR range.

For multi-monitor setups, test one variable at a time. A forum report on an OLED gaming monitor described inconsistent HDR tone mapping where clipping appeared at different brightness levels depending on boot state and whether multiple monitors were connected. That kind of behavior is not guaranteed on every display, but it is a useful reminder: if HDR highlight detail changes unexpectedly, simplify the setup and retest.

Choosing Monitor Hardware That Preserves Highlight Detail

Settings help, but hardware still sets the ceiling. A monitor with limited peak brightness, weak native contrast, poor local dimming, or crude HDR processing cannot preserve the same highlight detail as a well-tuned OLED or mini-LED model. The goal is to buy enough headroom for the way you actually use HDR.

General-use monitors often sit around 250 to 350 nits, while brightness above 400 nits is more appropriate for brighter rooms, HDR content, gaming, and movies. For serious HDR gaming, look beyond the box label and check independent measurements for sustained brightness, peak brightness in small windows, EOTF tracking, color volume, and local-dimming behavior.

Gaming Monitors

For HDR games, prioritize real HDR capability over the presence of an HDR badge. A high-refresh 27-inch or 32-inch monitor can be excellent for competitive play but still mediocre for HDR if it lacks enough brightness or local dimming. If you play bright, cinematic titles, a monitor that can preserve near-white steps at high brightness will matter more than a small contrast-slider boost.

KTC 27-inch MiniLED HDR gaming monitor displaying vivid racing game with preserved highlight detail

OLED gaming monitors provide excellent black levels and pixel-level contrast, which helps dark-scene separation. Mini-LED monitors can deliver stronger full-screen and small-window brightness, depending on the model. Both can look excellent, but both still require correct HDR peak-brightness settings in games.

Ultrawide Monitors

Ultrawide HDR displays add another variable: large bright areas. A 34-inch or 49-inch ultrawide can show more sky, snow, UI, or bright map area at once, which may trigger stronger tone mapping or automatic brightness limits. If you play racing, flight, space, or open-world games, test wide bright scenes rather than only small highlight demos.

A real-world monitor model is a useful reminder that HDR issues are not always fixed by one popular setting. In a company community case, a user reported crushed blacks in both HDR black-level and HDR peak-brightness modes, tested different computers, cables, ports, operating system HDR calibration, firmware updates, and multiple players. That example focused on shadow detail rather than blown highlights, but it shows the same principle: HDR image quality depends on the whole chain, not a single contrast number.

Portable Monitors

Portable HDR monitors are convenient for laptops and consoles, but many have limited brightness and power headroom. On battery-powered setups, an operating system may disable HDR to save power, then re-enable it when plugged in. If a portable monitor looks flatter on the road than at your desk, check power mode, HDR status, and brightness limits before changing contrast.

For portable use, avoid chasing maximum contrast in a bright room. Raise overall brightness if needed, reduce glare, and use a preset that keeps near-white detail intact. A slightly less punchy image with visible clouds and UI detail is usually better than a high-contrast image that clips everything above mid-bright white.

Quick Fix Checklist for HDR Highlight Detail

Use this checklist when bright areas lose texture after increasing contrast:

Confirm HDR is active on the correct display in the operating system, the console, or the GPU panel.
Set the monitor to a certified or standard HDR mode instead of a vivid or simulated HDR preset.
Disable Dynamic Contrast, Eco Mode, automatic brightness, black enhancers, and extra color boosters while testing.
Run the operating system’s HDR calibration tool or the console’s HDR calibration tool.
Set the game’s peak brightness close to the monitor’s real measured or advertised HDR capability.
Use a white ramp pattern and lower contrast until the brightest visible steps are separate.
Recheck with real content that includes clouds, snow, reflections, bright lights, and white UI elements.

If only one game looks wrong, adjust that game’s HDR settings first. If every HDR source looks clipped, focus on monitor HDR mode, operating system calibration, GPU output format, and the display’s contrast setting.

FAQ

Q: Should I set contrast to 100 for HDR gaming?

A: Usually no. A 100 contrast setting can make HDR look more intense, but it can also clip near-white tones. Use a white ramp pattern and stop raising contrast once the brightest steps start merging.

Q: Why does HDR look brighter but less detailed than SDR on my monitor?

A: The HDR signal may exceed your monitor’s real brightness range, so tone mapping compresses the highlights. If the game, operating system, GPU, and monitor all apply extra processing, bright detail can flatten even though the image looks brighter overall.

Q: Is this problem worse on cheap HDR monitors?

A: Often, yes. Monitors with low peak brightness, weak native contrast, edge-lit backlights, or limited HDR processing have less room to preserve highlight detail. However, even premium OLED and mini-LED monitors can clip highlights if HDR peak brightness, contrast, or tone mapping is set incorrectly.

Final Takeaway

Increasing contrast does not create more HDR detail by itself. It only helps when the monitor still separates the brightest tones instead of forcing them into the same white level. For gaming monitors, ultrawides, portable displays, and high-refresh desktop setups, the best result usually comes from matching HDR peak brightness to the panel, using a neutral HDR mode, disabling extra processing during calibration, and checking both black-level and near-white test patterns.

The practical rule is simple: if clouds, reflections, snow, fire, or bright UI elements lose texture after a contrast increase, back the setting down. A slightly less dramatic HDR image with visible highlight gradation is more accurate, easier to play on, and usually better-looking over a full gaming session.
