Console HDR highlights usually look clipped because the console, game, and monitor disagree about how bright the image should be, or because the monitor cannot accurately show the brightness the HDR signal is asking for.
You enable HDR on your console, load a familiar game, and suddenly clouds, lamps, snow, explosions, or the sun turn into flat white patches with no texture. The practical fix is usually a settings chain: monitor HDR mode first, console HDR calibration second, game HDR sliders third. This guide explains what is actually happening and how to tell whether the issue is a setting problem or a monitor hardware limit.

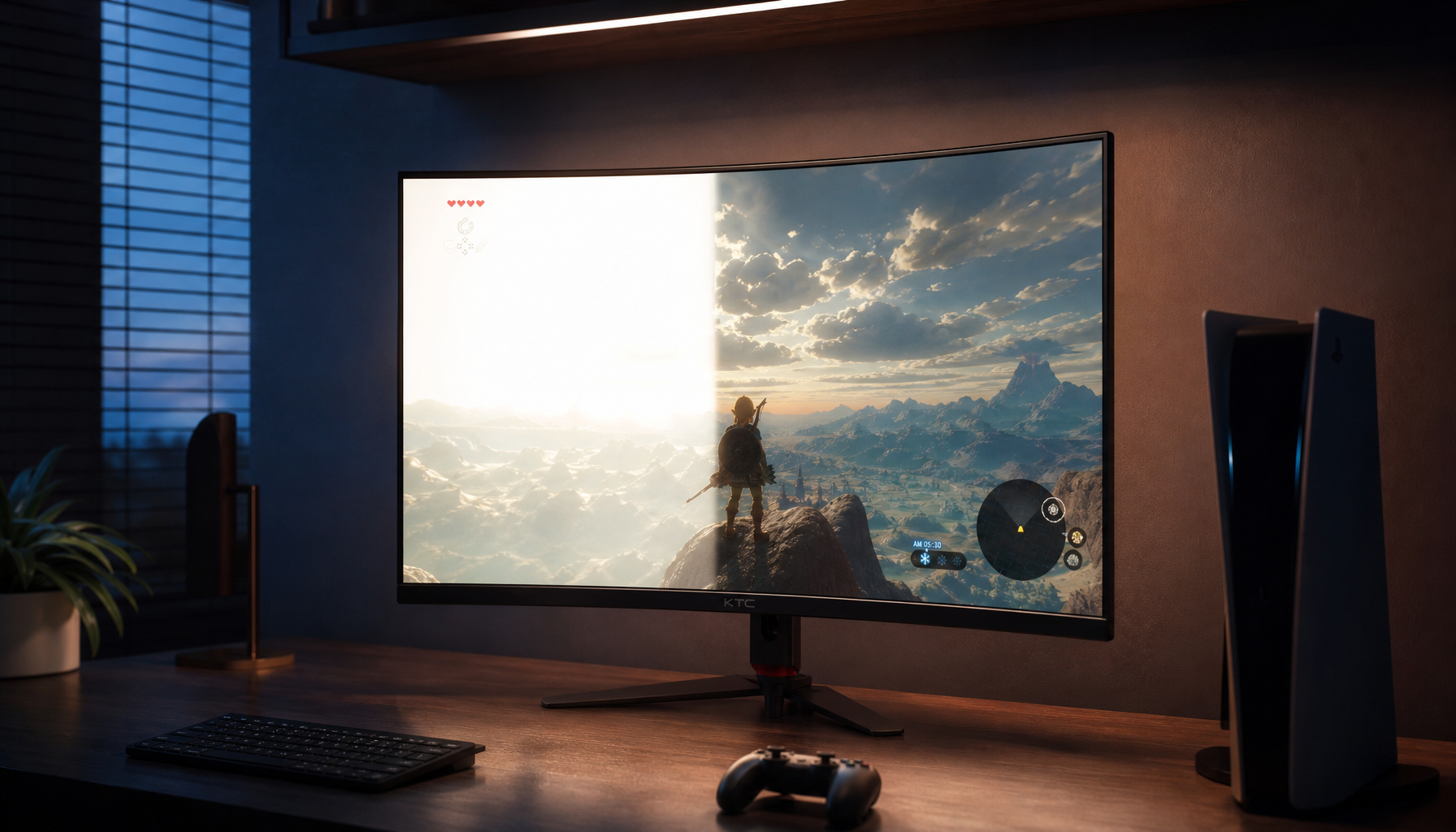

What Clipped HDR Highlights Look Like on a Monitor
Normal HDR brightness vs. lost highlight detail
HDR is supposed to make bright objects look more intense without erasing detail. A bright sky should still have cloud texture. A headlight should glow, but the shape of the lamp should remain readable. A flame should look hot without becoming a solid white blob.
HDR highlight clipping happens when the brightest parts of the signal run out of usable headroom somewhere in the chain. On a gaming monitor, that can show up as blank white clouds, a sun with no edge detail, dull gray highlights, blooming around bright objects, or snow and sand that lose all texture.
A simple test while gaming
Use a repeatable scene instead of judging HDR from a random explosion. Pause in a bright outdoor area with clouds, snow, reflective metal, or a lamp against a dark background. Toggle HDR off and on, then look for texture, not just brightness.
A practical example: if SDR shows cloud shapes but HDR turns the same sky into a smooth white sheet, that is likely clipping or overly aggressive tone mapping. If HDR is brighter but the cloud structure remains visible, the monitor is probably preserving highlight detail correctly.
Why Console HDR Clips on Gaming Monitors
Tone mapping is the main translation step
A console may send HDR10 video with brightness information that exceeds what your monitor can physically display. HDR tone mapping compresses that brightness and color data into the monitor’s real limits, including peak brightness, contrast, color volume, and local dimming behavior.
If the tone curve is too hard, highlights hit a ceiling and become flat. If the curve is too soft, the whole image may look dim or washed out. HDR10 also uses static metadata, meaning one set of brightness guidance can apply to a whole title rather than changing perfectly for every scene.
The console, game, and monitor may each be tone mapping
Console HDR is usually cleaner than computer HDR because the console sends a controlled full-screen HDR signal, but it is still not automatic. Console HDR setup often includes system-level calibration screens for black point and highlight clipping, and many games add their own HDR sliders afterward.
That creates a common problem: the console is calibrated for one peak brightness, the game is set for another, and the monitor applies its own HDR tone map on top. The result can be blown-out skies, over-bright menus, crushed dark detail, or highlights that look different from one game to the next.
“HDR supported” does not mean “good HDR”
Many gaming monitors can accept an HDR10 signal but still have limited HDR performance. A monitor with modest peak brightness, weak contrast, edge-lit dimming, or no meaningful local dimming may need to compress highlights heavily, which can make HDR look clipped, gray, or less natural than SDR.
A 1,000-nit-class monitor or OLED-style display typically has more room to preserve bright detail than a basic HDR monitor or portable display. For comparison, a Mini LED HDR1400 model such as a Mini LED 27” 4K 160Hz HDR1400 gaming monitor can be a useful spec reference when comparing displays, but it still needs proper console calibration and game-level HDR settings to avoid clipping. That does not mean every 1,000-nit display is automatically accurate, but it usually gives the tone mapper more useful headroom than a low-brightness panel.
The Best Order for Fixing Console HDR Settings
Start with the monitor, not the console
Set the monitor to its real HDR picture mode before touching console calibration. Disable unnecessary picture enhancements such as dynamic contrast, extreme saturation modes, black equalizers, and artificial sharpening while you test. These features can change the tone curve after calibration, making the console’s HDR setup less reliable.
Use the monitor’s correct video port and cable for the console’s target output. For current consoles, that usually means using the monitor port that supports the required refresh rate, HDR, and bandwidth for your preferred mode, such as 4K at 120 Hz where supported. If you switch ports, picture modes, or refresh rates later, rerun HDR calibration.
Then run console HDR calibration
On the console HDR setup screens, adjust the black and white patterns carefully. The usual goal is to move the highlight slider until the symbol is just barely invisible or just disappears, depending on the console’s instructions. Do this in normal room lighting, not with sunlight hitting the panel.
This step tells the console roughly where your monitor clips. If you set the maximum brightness too high, games may send highlights your monitor cannot display cleanly. If you set it too low, HDR may look dull because the console compresses highlights too early.
Adjust each game last
After system calibration, use the game’s HDR sliders. Look for settings named peak brightness, paper white, UI brightness, HDR brightness, luminance, or contrast. Set peak brightness to match the monitor’s real capability when the game allows a numeric value, then adjust paper white so menus, snow, clouds, and bright walls look natural rather than glowing.
A useful field test is to tune the game in a bright scene and a dark scene before deciding it is fixed. If lamps look detailed in a dark room but clouds still clip outdoors, lower the game’s peak brightness or HDR brightness slightly. If faces look dim while highlights are preserved, raise paper white rather than pushing peak brightness higher.
Settings and Specs That Matter Most
Parameter |
What It Controls |
Bad Setting or Weak Spec |
Practical Fix |
Monitor HDR mode |
How the display maps HDR brightness |
Wrong picture mode, fake HDR effect, dynamic contrast |
Use the monitor’s native HDR mode before calibration |
Console-side black point and highlight clipping point |
Max brightness set above the monitor’s real range |
Rerun calibration after changing ports, modes, or refresh rate |
|
The game’s assumed display brightness |
Highlights sent too bright for the monitor |
Match the monitor’s real HDR capability, then fine-tune down |
|
Paper white / UI brightness |
Brightness of normal whites and menus |
Washed-out image or glowing UI |
Raise or lower separately from peak brightness |
RGB range / black level |
Video levels between console and monitor |
Raised blacks, crushed blacks, odd contrast |
Match console and monitor range settings |
Local dimming |
Backlight control around bright objects |
Blooming, gray blacks, haloing |
Use a better dimming mode or a display with stronger dimming/OLED |
Real highlight headroom |
HDR accepted but highlights flatten quickly |
Choose a monitor with higher real HDR brightness and contrast |
RGB range and black level can mimic HDR problems
A range mismatch can make HDR look worse even when tone mapping is not the main issue. If the console outputs full RGB but the monitor expects limited range, blacks may crush and bright areas can look harsh. If the console outputs limited range but the monitor expects full, the image may look washed out with gray blacks.
The safest approach is to use auto settings only if both devices negotiate correctly. If the image looks obviously wrong, manually match both ends: full-to-full for many monitor-style setups, or limited-to-limited for video-style setups. After changing range, check both a dark scene and a bright sky before adjusting HDR sliders again.
Local dimming affects highlight detail and blooming
Local dimming can improve HDR by making bright objects stand out against darker areas, but weak dimming can also create halos or muddy highlights. Edge-lit monitors and displays with very few dimming zones often struggle with small bright objects, such as stars, lamps, subtitles, or UI elements over dark backgrounds.
OLED-class black levels and stronger full-array local dimming usually preserve perceived contrast better. For console gaming, that matters as much as advertised peak brightness because HDR is not only about how bright a highlight gets; it is about whether the display can keep bright and dark detail separated at the same time.
When Calibration Helps and When the Monitor Is the Limit
Calibration can reduce clipping, not create missing hardware
Good calibration can fix many blown-out HDR scenes. It can tell the console not to send unrealistic highlight levels, align game sliders with the monitor’s behavior, and prevent range mismatches from exaggerating contrast problems.
But calibration cannot make a low-brightness monitor perform like a high-end HDR display. If the panel has limited brightness, weak contrast, no useful local dimming, or poor HDR firmware, the best result may still be a compromise: fewer clipped highlights, but less impact than a stronger HDR monitor.
How to decide if you need a better HDR monitor
If HDR looks clipped in only one game, the game’s HDR settings are the first suspect. If HDR looks clipped across several games, especially after proper console calibration, the monitor’s tone mapping or hardware is more likely the bottleneck. If SDR consistently looks cleaner and more detailed than HDR, the display may be accepting HDR signals without delivering a satisfying HDR image.
For buying guidance, look beyond the “HDR compatible” badge. Prioritize real peak brightness, sustained brightness, contrast, local dimming quality, OLED-class black levels, 10-bit processing or strong dithering, video-interface bandwidth for your console mode, and reviews that test HDR tone mapping instead of only listing specifications.
Console HDR Troubleshooting Checklist
- Set the monitor to its native HDR mode before starting console calibration.
- Turn off dynamic contrast, fake HDR effects, extreme color modes, and black equalizer settings while testing.
- Confirm the console and monitor are using a compatible video port, cable, resolution, refresh rate, and HDR output mode.
- Match RGB range or black level settings between the console and monitor if auto mode looks wrong.
- Rerun the console HDR calibration screens and set the highlight pattern exactly as instructed.
- Adjust the game’s HDR peak brightness and paper white settings after system calibration.
- Test the same bright scene and dark scene again before deciding whether the monitor hardware is the limiting factor.
FAQ
Q: Why do HDR skies and clouds look flat white on my console monitor?
A: The monitor is probably running out of highlight headroom, or the console/game is sending brightness levels above what the monitor can tone map cleanly. Lower the game’s peak brightness first, then rerun the console HDR calibration if the issue appears in multiple games.
Q: Should I leave HDR on all the time for console gaming?
A: For HDR games on a capable monitor, yes, HDR can be worth leaving enabled. For SDR games, menus, streaming apps, or monitors with weak HDR performance, SDR may look more predictable because the display is not forced to tone map content beyond its comfortable range.
Q: Does a high refresh rate make HDR highlights clip?
A: High refresh rate itself does not cause clipping, but bandwidth limits can change output format, bit depth, chroma format, or HDR behavior depending on the console, cable, port, and monitor. If HDR looks worse at 120 Hz than 60 Hz, check the video port capabilities and console video output details.
Practical Next Steps
If your console HDR looks blown out, fix the chain in order: monitor HDR mode, console calibration, then game-level sliders. Do not start by randomly changing every picture setting, because that makes it harder to know which adjustment helped.
For a gaming monitor purchase, treat HDR support as the starting point, not the answer. A monitor that preserves cloud texture, lamp detail, and bright UI elements without gray blacks or harsh clipping will usually have stronger real brightness, better contrast, better dimming, and more predictable tone mapping than a basic HDR-compatible display.
