Why Calibration Can't Fix Backlight Bleed & Uniformity

Software calibration can make a monitor look more accurate, but it cannot repair physical light leakage, uneven panel pressure, or backlight hardware problems. For gaming monitors, ultrawides, high-refresh-rate displays, and portable monitors, calibration may reduce how obvious the issue looks, while replacement or warranty service is often the real fix for severe fixed defects.

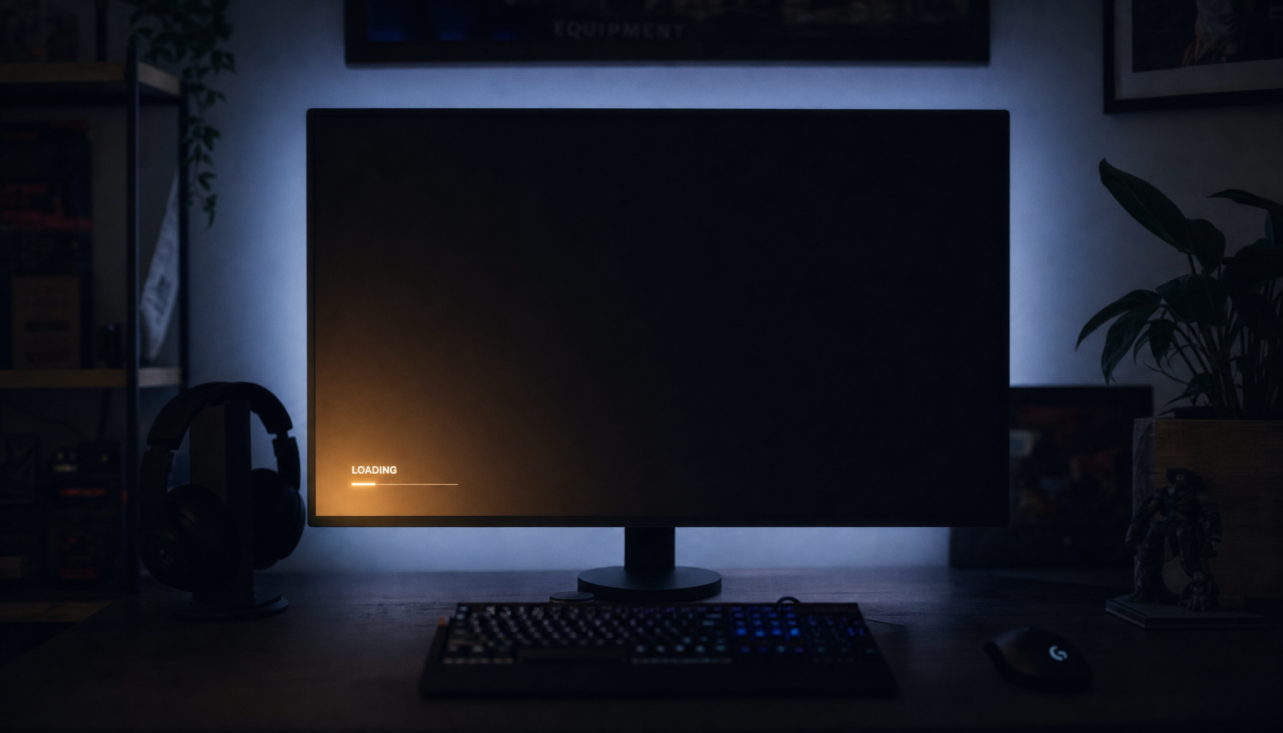

You load a dark game scene, the room lights are off, and one corner of your new monitor looks gray while the center stays black. A controlled check after a 20- to 30-minute warm-up, normal brightness, and multiple test screens can quickly separate a setting problem from a panel problem. This guide explains where calibration helps, where it stops, and how to decide whether to keep, adjust, exchange, or return a display.

What Software Calibration Can Actually Change

Software calibration changes how the signal is mapped to the screen. It can adjust white point, gamma, grayscale balance, color accuracy, brightness targets, and color profiles, which matters if a monitor looks too blue, too warm, washed out, or inaccurate in standard dynamic range content. For mixed gaming, desktop work, and streaming, a gamma target around 2.2 is a common starting point because it balances shadow detail with normal midtone contrast.

A colorimeter or spectrometer can improve measured color accuracy, especially at the center of the screen where the sensor is usually placed. That is useful for a 27-inch gaming monitor that ships with an overly cool white point, or an ultrawide that looks too saturated in its default gaming mode. However, calibration usually corrects the measured area, not every corner, edge, and zone across the panel.

Calibration Is Not a Physical Repair

Split image contrasting software color calibration on the left with the physical LED backlight hardware inside a monitor on the right, illustrating why calibration cannot fix physical light leakage

Backlight bleed and many uniformity issues come from the monitor’s physical construction. Edge sealing, diffuser film alignment, bezel pressure, chassis stress, light guide behavior, backlight emitter variation, and assembly tolerances can all make one part of a liquid-crystal display panel brighter than another. Software can tell pixels what values to show, but it cannot loosen a stressed panel, realign optical films, or stop light from leaking through a liquid-crystal display stack.

That is why a calibrated monitor can still have a glowing corner in dark scenes. The color may be more accurate, and gray ramps may look cleaner, but a fixed bright patch near the edge may remain because backlight bleed is physical, not just a tone-curve error.

Why Backlight Bleed and Uniformity Problems Are Often Confused

Backlight bleed is unwanted light leaking through a liquid-crystal display panel when black or near-black content should be displayed. It often appears as bright corners, edge haze, light strips, or irregular cloudy patches. On a dark loading screen, a space game, or a black letterbox bar in a movie, the affected area looks gray because the local black floor is higher than the rest of the screen.

Screen uniformity is broader. It includes brightness consistency and color consistency across the entire display, from center to corners. Poor luminance uniformity may look like dim sides, bright corners, or clouding, while poor color uniformity may show as pink, blue, yellow, dirty gray, or banded areas on neutral backgrounds. Panel uniformity means the display stays consistent across the whole screen, not just accurate at one test point.

Backlight Bleed vs. Wide-Angle Panel Glow vs. Clouding

Diagram comparing backlight bleed, wide-angle panel glow, and clouding on LCD monitors, showing that none can be fixed by software calibration

Wide-angle panel glow is not the same as backlight bleed. Wide-angle panel glow usually changes when you move your head, adjust viewing distance, or look from a different angle. True backlight bleed tends to stay in the same location, such as the lower-left corner, even when your head position changes.

Clouding is more like uneven patches or hazy areas across the panel. It can be related to pressure, diffuser behavior, panel layering, or uneven backlight distribution. On ultrawide monitors, large 32:9 or 21:9 panels can make these variations easier to notice because your eyes compare a wider surface at once, especially in dark-mode apps and games with large shadow areas.

Issue	What It Looks Like	Usually Changes With Viewing Angle?	Can Calibration Fix It?	Best Practical Response
Backlight bleed	Fixed bright corner, edge strip, or light leak on black screens	Usually no	No	Lower brightness to reduce visibility; return or exchange if visible in normal use
Wide-angle panel glow	Gray or silvery glow on dark content, often near corners	Yes	No	Adjust seating position, viewing distance, and room lighting
Clouding	Irregular bright patches or haze across dark screens	Usually no	No	Test after warm-up; seek replacement if distracting
Poor brightness uniformity	One side or zone looks dimmer or brighter	Usually no	Not fully	Check with gray, white, and black screens; compare against normal content
Poor color uniformity	Pink, yellow, blue, or dirty-gray tint areas	Usually no	Only partly	Use calibration for overall color, but exchange severe tint bands
Incorrect color settings	Too blue, too warm, oversaturated, washed out	No	Yes	Calibrate white point, gamma, color mode, and color profile

Why Dark Gaming Scenes Make the Problem Look Worse

Dark scenes expose uneven black levels because there is less image detail to distract your eyes. When a game shows a cave, loading screen, night map, space background, or black UI overlay, small luminance differences become easy to compare. A bright edge that is barely noticeable on a desktop wallpaper may become distracting in a horror game or cinematic role-playing game.

High-refresh-rate gaming monitors often ship in aggressive picture modes with high factory brightness, boosted contrast, black stabilizer settings, sharpening, high-dynamic-range toggles, or dynamic contrast features. These modes can make uniformity flaws more visible because they push the backlight harder or lift shadow detail. High brightness and high-dynamic-range modes can reveal small panel variations that look less severe at everyday standard-dynamic-range brightness.

Ultrawide and Portable Monitor Trade-Offs

Ultrawide monitors give you more horizontal screen area, but that also means more panel surface to keep uniform. A small edge-brightness difference on a 24-inch display may be tolerable, while the same pattern across a wide panel can stand out during dark games, timeline editing, or spreadsheet work in dark mode. Some 27-inch wide-angle liquid-crystal panels have been reported with edge brightness roughly 15% to 20% above the center, and wider displays can make similar variation easier to see in real content.

Portable monitors have a different challenge: thin chassis design. A slim enclosure is convenient for travel, but it can also make panel pressure, frame tension, and edge-light compromises more noticeable. If a portable display shows a fixed bright strip along one edge after warm-up and at normal brightness, calibration is unlikely to remove it.

How to Test Before Blaming Calibration

Start with a realistic test, not an exaggerated one. Let the monitor warm up for 20 to 30 minutes, reset major picture enhancements, use the native resolution, and connect through a stable digital input such as a wired display connection, a reversible multi-purpose cable connection, or a common digital video connection. Then check full-screen black, dark gray, 50% gray, and white images from your normal seating distance.

Testing at maximum brightness in a completely dark room can reveal flaws, but it can also make minor issues look worse than they are in daily use. A more practical first pass is 30% to 50% brightness, or roughly 120 to 150 nits for typical standard-dynamic-range desktop and gaming use. A controlled test should include warm-up, basic setting resets, and full-screen gray, black, and white checks before you decide whether the monitor is defective.

A Practical Home Test Sequence

Person checking monitor uniformity by viewing a gray test screen at different head positions during a backlight bleed home test

Warm up the monitor for 20 to 30 minutes.
Set brightness to your normal range, then test again at 30%, 50%, and 70%.
Disable high dynamic range, dynamic contrast, local contrast boosters, sharpening, and black stabilizer features.
Use native resolution and the normal refresh rate you actually use for gaming.
Show full-screen black, dark gray, 50% gray, and white screens.
Sit at your normal distance and then move your head slightly left, right, higher, and lower.
Test another input or device if possible, such as a laptop, console, or second computer.
Open real content: a dark game, a movie with letterbox bars, a dark-mode app, and a neutral gray page.

A fixed bright patch that stays in the same place at 30%, 50%, and 70% brightness is more likely to be backlight bleed than a calibration issue. A glow that shifts or fades as your head moves is more likely to be wide-angle panel glow. Backlight bleed usually stays fixed, while viewing-angle-dependent glow points to panel behavior rather than edge leakage.

Photo Checks Without Exaggerating the Problem

Photos can help document a defect for a return or warranty claim, but automatic phone exposure often exaggerates black-screen flaws. If you want repeatable tracking, use the same test image, distance, and manual camera settings each time. A practical reference setup is f/4.0, ISO 200, and a 2-second exposure at about 100 nits, then compare photos only against other photos taken the same way.

Do not judge a monitor only by a long-exposure black-screen photo at maximum brightness. A panel that looks terrible in a photo may be acceptable in normal games and desktop work. The more important question is whether the defect is visible from your normal seat, at your normal brightness, in the content you actually use.

Settings That Can Reduce Visibility but Not Fix the Panel

Lowering brightness is the most reliable setting change because it reduces the total backlight output available to leak through the panel. If you normally run a gaming monitor at 80% brightness in a dim room, dropping to 30% to 50% can make a corner glow much less noticeable while also being easier on your eyes. This does not repair the panel; it only reduces the amount of light involved.

Bias lighting can also help. A soft light behind the monitor raises the room’s black reference, so a grayish corner on the screen may look less severe to your eyes. Lowering brightness and bias lighting can reduce perceived severity, but neither changes the monitor’s backlight structure.

KTC gaming monitor on a desk with bias lighting behind it, demonstrating how ambient backlighting reduces perceived backlight bleed severity

Be Careful With Gamma, Contrast, and Black Stabilizer

Gamma changes can hide some shadow unevenness, but they can also crush dark detail or make midtones look wrong. Raising black stabilizer settings may reveal enemies in dark competitive games, but it can lift blacks and make bleed or glow more obvious. Lowering contrast too far may reduce harshness, but it can flatten the image.

For most standard-dynamic-range gaming and desktop use, start near gamma 2.2, set brightness to a comfortable level, and disable aggressive dynamic contrast features while testing. If you need a brighter profile for daytime use, create a separate preset instead of judging uniformity only under that harsh condition.

What About Color Profiles?

A color profile can improve color-managed apps, but it cannot make an edge-lit corner physically darker. It also will not fix a yellow-tinted strip on the left side if the monitor’s right side is the area that was measured during calibration. Color profiles are useful for photography, design, and accurate desktop color, but they are not a cure for uneven backlight behavior.

Some monitors offer uniformity compensation modes, usually on professional or creator-focused displays. These modes can reduce certain brightness or color differences by limiting output in brighter zones, but they may reduce peak brightness, contrast, or performance behavior. For gaming monitors, especially high-refresh-rate models, the feature may be absent or impractical for fast play.

When to Adjust, Keep, Return, or Replace

A small amount of glow or mild unevenness can be normal for many liquid-crystal display monitors, especially wide-angle gaming displays. If the issue appears only on a pure black screen at maximum brightness in a dark room, but not in games, movies, work apps, or web browsing, it may not be worth exchanging. Panel lottery is real: a replacement can be better, similar, or worse.

Return or exchange becomes more reasonable when a fixed bright patch remains visible after warm-up, across multiple inputs, at everyday brightness, and in normal content. This is especially true if it distracts you during dark games, movies, dark-mode apps, or creative work. Warranty service or replacement is more realistic than further calibration when the defect remains fixed after practical checks.

Buying Guidance for Better Uniformity Odds

If black uniformity matters, do not buy only by refresh rate, response time, and resolution. Look for monitor reviews that include black uniformity photos, gray uniformity tests, contrast measurements, local dimming behavior, and notes about panel variance. For ultrawides, pay extra attention to edge and corner consistency because the wider panel gives unevenness more room to show.

Panel type matters, but none is perfect. Self-emissive displays avoid traditional liquid-crystal display backlight bleed because each pixel emits its own light and can turn off individually, but self-emissive displays have their own risks, including image retention considerations. Vertical-alignment liquid-crystal display monitors often deliver deeper native contrast than wide-angle liquid-crystal panels, but may have viewing-angle and response-time trade-offs. Wide-angle liquid-crystal panels can be excellent for speed and color, but glow and black uniformity are common buying considerations.

FAQ

Q: Can professional calibration remove backlight bleed?

A: No. Professional calibration can improve white point, grayscale, gamma, brightness targets, and color accuracy, but it cannot stop physical light leakage through the panel. If the same bright corner remains visible after warm-up at normal brightness, calibration will not remove it.

Q: Is backlight bleed the same as wide-angle panel glow?

A: No. Backlight bleed is usually fixed in one area, such as a corner or edge. Wide-angle panel glow often changes when you move your head, adjust your viewing angle, or sit farther from the screen. Both can show up in dark gaming scenes, which is why they are often confused.

Q: Should I test backlight bleed at 100% brightness?

A: You can use 100% brightness as a stress test, but do not make it your only test. Check the monitor at your normal brightness, then around 30% to 50%, and judge it with real content. A flaw that appears only in a black-screen stress test may be less important than one that shows up during normal gaming, movies, or work.

Practical Next Steps

If your monitor has a bright corner or uneven dark screen, test it before spending hours on calibration. Warm it up for 20 to 30 minutes, reset aggressive picture features, use native resolution, and check black, dark gray, 50% gray, and white screens at normal brightness. Then compare what you see against actual games, movies, and desktop use.

Use calibration for what it does well: better color, better grayscale, a sane gamma curve, and a comfortable brightness target. Use returns, exchanges, or warranty service for what calibration cannot change: fixed backlight bleed, distracting clouding, severe tint bands, dim strips, or uniformity flaws that remain visible across devices and normal settings.
