Split a 32:9 Monitor into Two 16:9 Virtual Displays

A 32:9 super-ultrawide monitor can work like two side-by-side 16:9 displays, but the best method depends on whether you need true separate displays or just better window control.

Ever opened one app full-screen on a 49-inch monitor and felt like the window was absurdly wide? On a 5120 x 1440 super-ultrawide, splitting the screen into two 2560 x 1440 zones gives you the practical feel of dual QHD monitors without a center bezel. This guide shows the main ways to do it, where each method works well, and what to check before you give up refresh rate, HDR, or full-screen behavior.

Why 32:9 Maps So Cleanly to Two 16:9 Displays

A 32:9 monitor is essentially two 16:9 displays placed side by side, which is why the format is often compared to a dual-monitor setup without a physical bezel. The math is simple in practical terms: a 5120 x 1440 panel can become two 2560 x 1440 workspaces, while a 3840 x 1080 panel can become two 1920 x 1080 workspaces. That makes a 49-inch 32:9 gaming monitor especially useful for people who want one continuous panel but still think in “left screen, right screen” workflows.

The 32:9 format is also wider than a typical 21:9 ultrawide, with a 3.56:1 shape compared with 21:9’s 2.33:1 shape. Consumer super-ultrawide monitors became more common after a brand’s 49-inch monitor, and newer product-class displays pushed the category into higher resolutions such as 5120 x 1440 and 7680 x 2160. That matters because the higher the native resolution, the more convincing each virtual half feels as a standalone display.

For a monitor buyer, the key question is not only “Can it split?” but “What kind of split do I need?” A software split is usually enough for browser, spreadsheet, chat, and editing workflows. A hardware split through Picture-by-Picture mode is better when you need two real inputs, two operating system displays, a console beside a PC, or more predictable full-screen behavior.

Choose the Right Split Method

There are four common ways to divide a 32:9 monitor: Picture-by-Picture mode, operating system snap zones, third-party window managers, and virtual monitor commands. They all create a cleaner desktop, but they do not behave the same way. The difference shows up quickly when you launch a game full-screen, share only one “monitor” in a meeting, connect a laptop and desktop at the same time, or try to capture one half in a recording app.

Picture-by-Picture is the closest match to two physical monitors because the display itself treats separate inputs as separate screen areas. Software zoning is simpler if you use one computer and mostly need windows to land in predictable places. Some operating system users may also experiment with virtual monitor commands, though desktop environment support can be inconsistent: one example defined virtual monitors on a 5120 x 1440 monitor, but a desktop environment still treated the monitor as one 5120 x 1440 screen while a recording app recognized the virtual regions.

Method	Best For	Feels Like Two Real Monitors?	Typical Strength	Main Limitation
Picture-by-Picture	Two devices, full-screen apps, consoles, screen sharing	Yes	Hardware-level split with separate inputs	May reduce refresh rate, HDR, adaptive sync, or resolution depending on the monitor
Operating system snap zones / OS window management	Daily productivity on one PC	No	Fast, simple window placement	Full-screen apps may still take the whole panel
Third-party window manager	Custom layouts and repeatable zones	No	Flexible 50/50, 25/50/25, or app-specific layouts	Usually does not create true separate displays
Virtual monitor commands	Advanced setups, capture experiments	Sometimes	Can define virtual regions inside one physical display	Desktop environments may ignore boundaries

Method 1: Use Picture-by-Picture for True Dual 16:9 Displays

Picture-by-Picture, often shortened to PBP, is the monitor-based solution. Instead of asking the operating system to fake two screens, you connect two display cables to the monitor and use the monitor’s on-screen display menu to place one input on the left and one input on the right. A 5120 x 1440 monitor in two-way PBP can commonly present itself as two 2560 x 1440 regions, which is the cleanest version of a dual 16:9 setup on a 32:9 panel.

This is the method to choose when you want one desktop PC on the left and a laptop on the right, a gaming PC beside a streaming PC, or a console beside a desktop. A tech forum user described using an ultrawide monitor’s built-in split mode to run two full-screen applications side by side, with the split configured through the monitor rather than desktop software. That distinction matters: a game, media app, or video call sees a real display area instead of one giant canvas.

The tradeoff is that PBP often changes what the monitor can do. Depending on the model, enabling PBP may disable variable refresh rate, limit HDR, cap refresh rate, change color settings, or reduce available resolution. Before buying a 49-inch OLED or mini-LED gaming monitor specifically for PBP, check the manual for supported PBP resolutions, refresh rates, input combinations, and whether both halves can run at your target refresh rate, such as 120 Hz, 144 Hz, or 240 Hz.

Practical PBP Setup

Connect two video cables from your PC to the monitor if you want one computer to behave like it has two displays. For example, use one video connection for the left half and another video connection for the right half. Then open the monitor’s on-screen display menu, enable Picture-by-Picture, select the two inputs, and arrange them left and right.

Two video cables connected to the rear of a curved gaming monitor for Picture-by-Picture dual-input setup

In your operating system, open display settings and confirm that two displays appear. Set them to the same scaling if you want the cursor and windows to feel consistent across the split. On a 5120 x 1440 monitor, each side should ideally appear as 2560 x 1440; on a 3840 x 1080 model, each side should ideally appear as 1920 x 1080. If the monitor only exposes lower-resolution modes, that is a monitor firmware or input-bandwidth limitation rather than an operating system snapping problem.

Method 2: Use Software Zones for One-Computer Productivity

If you only use one PC, software window zones are usually the fastest answer. They do not create two real displays, but they make the monitor behave like a disciplined workspace. You can set a left zone and right zone at 50% each, then drag windows into place instead of manually resizing them every morning.

This approach is especially good for productivity work on high-refresh monitors because it preserves the monitor’s normal single-input mode. You are more likely to keep the panel’s full native resolution, high refresh rate, HDR mode, and adaptive sync support than you would in PBP. For everyday use, that means you can run a browser on the left, a document editor on the right, and still launch a 32:9 racing game or flight simulator later without changing monitor input settings.

The downside is full-screen behavior. Many full-screen games, media players, and screen-sharing tools still see one giant display. An operating system feature request captures the real-world problem well: users with 5120 x 1440 monitors often want better snapping behavior where left, center, and right zones are respected instead of every maximized window occupying the entire panel. Software zones solve window placement, but they do not always solve display identity.

Recommended Zone Layouts

For a clean two-display feel, start with a 50/50 layout. On a 5120 x 1440 screen, that gives you two 2560 x 1440 work areas. This is ideal for dual-browser work, coding plus documentation, video editing timelines plus bins, or dashboard monitoring on one side and communication apps on the other.

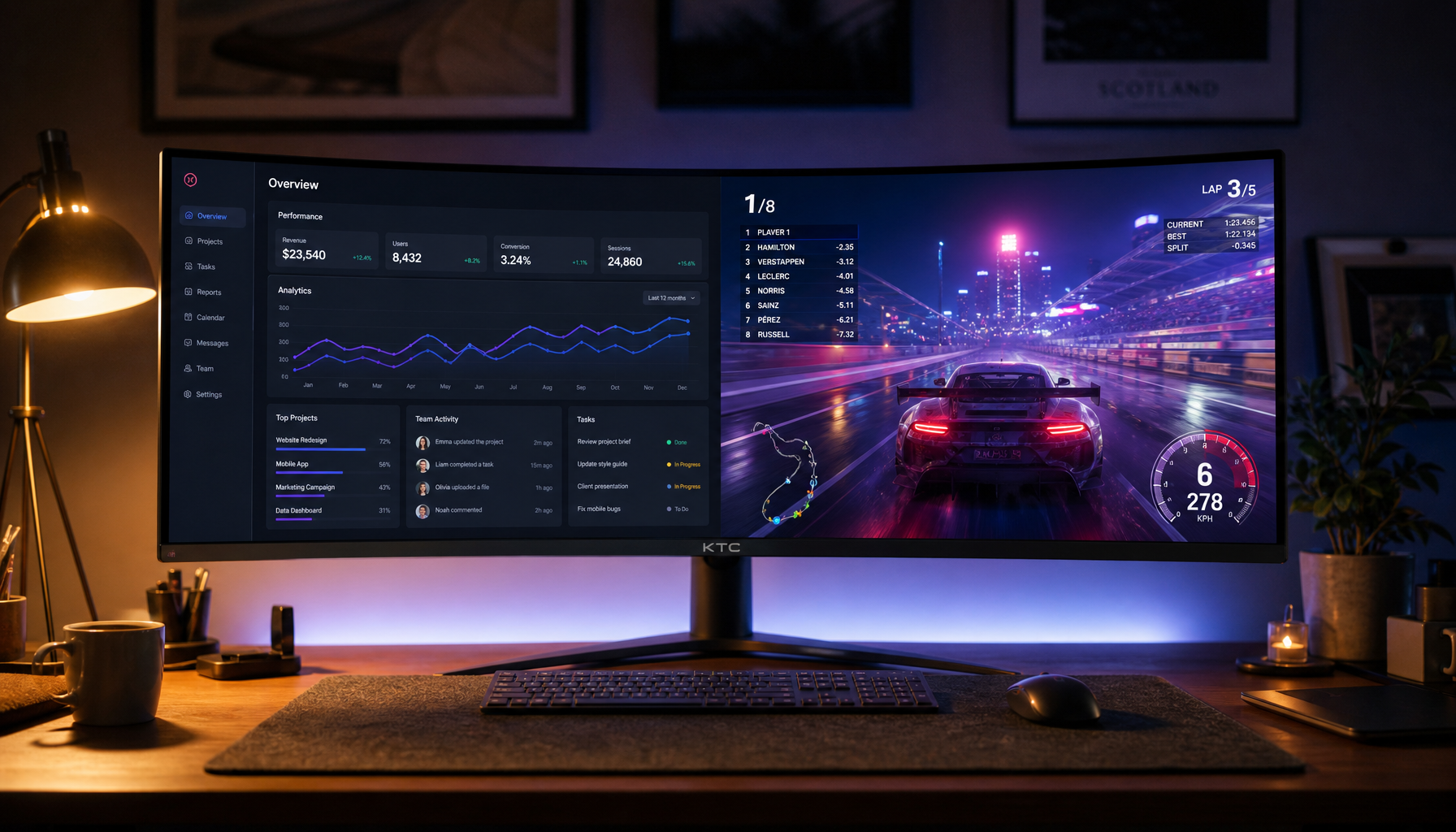

49-inch curved super-ultrawide monitor showing split-screen setup with productivity apps on the left and a racing game on the right

If you find that two equal halves make your main app too wide or too narrow, try a 60/40 or 70/30 split. A productivity forum discussion about moving from a 27-inch display to a 34-inch ultrawide highlights a common adjustment: a single maximized app can feel too large, so placing the main app centered at roughly two-thirds or three-quarters width may feel more natural. On a 32:9 monitor, the same idea often becomes a wide center workspace with narrow utility zones on the sides.

Method 3: Use Virtual Monitor Commands Carefully

On some operating systems, virtual monitor commands can divide one physical 32:9 panel into named logical regions. In one documented setup, a 5120 x 1440 monitor was split into three virtual monitors: 1280 x 1440 on the left, 2560 x 1440 in the center, and 1280 x 1440 on the right. For a two-way 16:9 split, the same concept would be two 2560 x 1440 regions.

A two-zone example for a 5120 x 1440 display would look like this, with the output name changed to match your system:

virtual-monitor-command --setmonitor LEFT 2560/597x1440/336+0+0 video-output-1

virtual-monitor-command --setmonitor RIGHT 2560/597x1440/336+2560+0 none

virtual-monitor-command --fb 5120x1440

virtual-monitor-command --listactivemonitors

Use this as an advanced tool, not a guaranteed fix. The example found that the virtual monitor command reported the virtual regions, but the desktop environment still treated the screen as one 5120 x 1440 display for normal desktop behavior. A recording app could recognize the virtual monitors, which makes the method interesting for streaming and capture workflows, but your window manager determines whether maximize, snap, and full-screen actions respect the split.

Gaming, Streaming, and High-Refresh Tradeoffs

For gaming monitors, the biggest decision is whether you care more about true dual-display behavior or keeping the panel’s best gaming features. In single-input mode, a 32:9 monitor is at its strongest: full resolution, high refresh rate, adaptive sync, HDR, and low-latency gaming modes are usually most available there. This is the mode you want for games that support 32:9 properly, especially racing, flight, simulation, strategy, and productivity-heavy gaming setups with a chat app, browser maps, or monitoring tools beside the game.

Gamer immersed in a panoramic flight simulation spanning a full 32:9 super-ultrawide monitor with a chat app snapped on the side

PBP is better when you need two independent full-screen sources. For example, a streamer might run a game console on the left half and a streaming PC dashboard on the right, or a reviewer might compare a laptop output and desktop output on the same panel. The cost is that many monitors treat PBP as a compatibility mode, so you need to verify whether your target combination supports the refresh rate and features you expect.

Streaming desk with a curved monitor in Picture-by-Picture mode showing a console game on the left and streaming dashboard on the right

Screen sharing is another practical reason to care. If your workday includes frequent video calls, a software-zoned 5120 x 1440 desktop may be awkward because sharing the full screen can show an extremely wide, hard-to-read image. PBP or true OS-recognized displays can make it easier to share only one 16:9 half at a normal aspect ratio.

Action Checklist

Confirm your native resolution: 3840 x 1080, 5120 x 1440, or 7680 x 2160.
Decide whether you need true separate displays or only better window placement.
Use Picture-by-Picture if you need two devices, full-screen apps, or cleaner screen sharing.
Use software zones if you use one PC and want to preserve high refresh rate, HDR, and adaptive sync.
Test full-screen apps, video calls, and recording software before committing to one workflow.
Save your monitor’s PBP input settings and your window manager layout as presets if the software allows it.
Recheck scaling after every graphics driver, operating system, or monitor firmware update.

FAQ

Q: Can a 32:9 monitor really become two 16:9 displays?

A: Yes, if the monitor resolution divides cleanly into two 16:9 halves. A 5120 x 1440 display splits into two 2560 x 1440 areas, and a 3840 x 1080 display splits into two 1920 x 1080 areas. The result is visually similar to two widescreen monitors side by side, but whether your computer sees them as two displays depends on the method you use.

Q: Is Picture-by-Picture better than a window manager?

A: Picture-by-Picture is better when you need two real display inputs, two computers, a console plus PC, or reliable full-screen separation. A window manager is better for one-computer productivity because it is easier to switch layouts and usually keeps the monitor’s full single-input feature set. For most office, browsing, coding, and editing workflows, software zones are simpler.

Q: Will splitting the monitor reduce refresh rate or gaming performance?

A: Software zones usually do not reduce performance because the monitor still runs as one native display. Picture-by-Picture can reduce available refresh rate, HDR, adaptive sync, or resolution depending on the monitor and input combination. If you bought a 240 Hz super-ultrawide for gaming, test PBP before assuming both halves can run with the same features as full-width mode.

Practical Next Steps

Start with the least disruptive setup: create a 50/50 software layout and use it for a full workday. If your pain points are only window placement and oversized apps, that may solve the problem without touching monitor inputs. If you still need full-screen apps to stay on one half, or you want a laptop, console, or second PC on the same panel, move to Picture-by-Picture.

For display buyers, check the monitor’s PBP details before purchase, not just the panel size and refresh rate. The important buying questions are whether the monitor supports two equal 16:9 halves at the resolution you want, whether your preferred ports work together in PBP, and which gaming features remain available. As a comparison point, the a brand 49-inch 5120 x 1440 180Hz ultrawide monitor is the kind of spec sheet to check when weighing whether a super-ultrawide’s native resolution and refresh-rate tradeoffs fit a two-zone workflow. A 32:9 monitor can replace two displays cleanly, but only if its split mode matches the way you actually use your desk.
