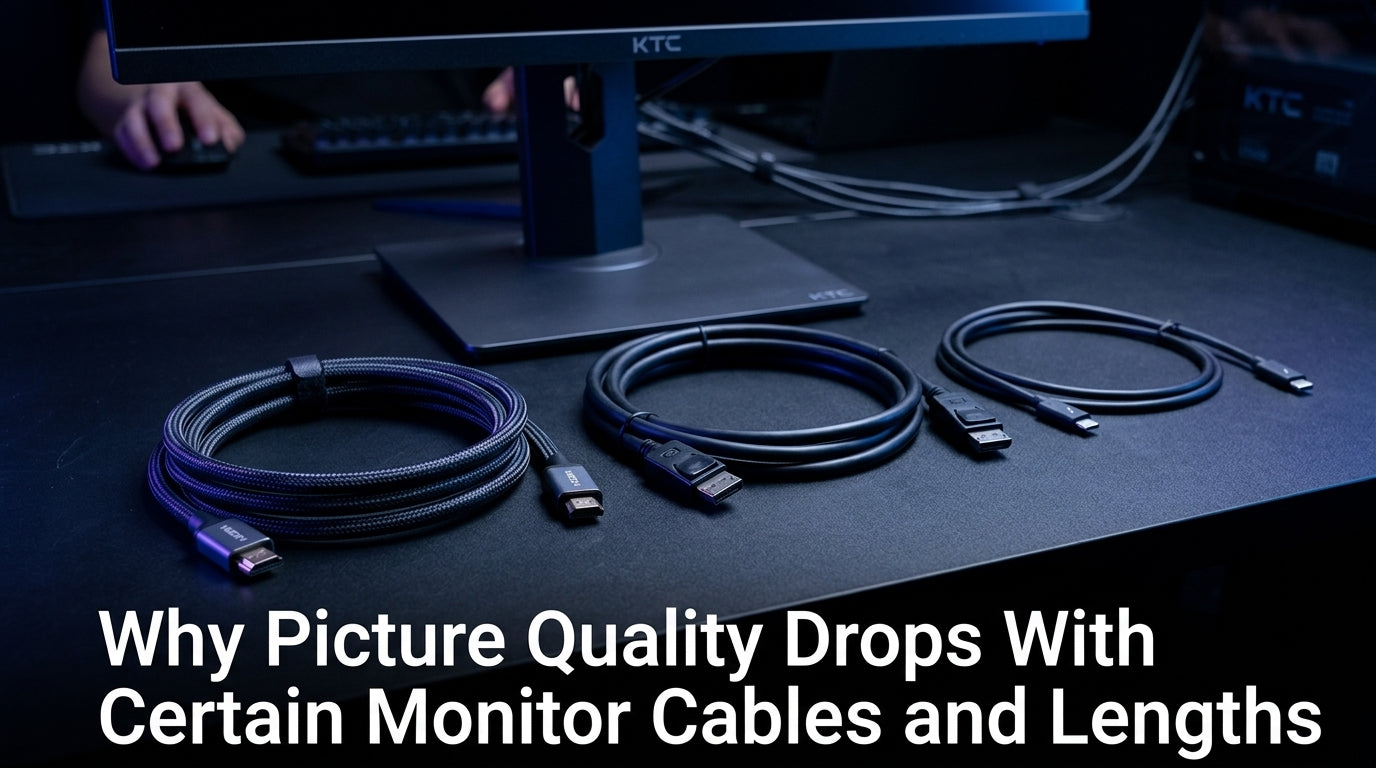

Monitor Cable Length & Picture Quality Explained

Q: Why does my monitor still show 4K but lose 120 Hz?

Resolution is only part of the data load. Moving from 4K at 60 Hz to 4K at 120 Hz roughly doubles the data rate; if the cable, port, or adapter cannot handle the higher bandwidth, the system will often keep the 4K resolution but drop the refresh rate to 60 Hz.

Q: Is HDMI or DisplayPort better for gaming and ultrawide monitors?

For PC gaming and high-refresh monitors, DisplayPort is usually the safer choice as it often provides more data throughput. HDMI 2.1 is also an excellent option for consoles and compatible monitors, but older HDMI versions may struggle with demanding high-resolution displays.

Monitor cables usually do not make a good digital image look a little softer. They either carry the full signal cleanly, or they trigger artifacts, dropouts, and lower refresh-rate fallbacks when the cable type, bandwidth, or length is wrong.

You swap to a longer cable, and your gaming monitor suddenly flickers, loses its smooth mode, or refuses to hold the settings you know it supports. Short runs of about 6 to 10 ft are usually much easier than longer passive runs when a display is pushing high resolution and high refresh. You will see when the cable is really the problem, which specs matter most, and how to choose the right link for gaming, ultrawide, and portable monitors.

Why the Image Changes at All

Analog blur vs. digital failure

VGA is an analog connection, so older monitor setups can lose edge definition, pick up interference, and show ghosting as resolution and signal frequency rise. That is why legacy VGA looks noticeably worse on modern LCD monitors than a direct digital link such as HDMI, DisplayPort, or DVI.

Digital video usually does not degrade gradually, which is why a weak HDMI or DisplayPort run on a gaming monitor more often shows sparkles, black screens, color errors, or random dropouts instead of a mildly softer picture. In practical terms, a bad digital link often looks like a monitor that falls back to 60 Hz, loses HDR, or blanks out during fast gameplay.

The same connector shape can hide very different bandwidth limits. A monitor port, GPU port, dock, adapter, and cable all have to agree on the same mode, so a display that supports high refresh on one input may quietly drop features on another.

Why Longer Cables Cause More Problems on High-Refresh Displays

Length reduces signal margin

HDMI distance gets shorter as signal bandwidth rises. A 1080p signal can often travel much farther than a demanding 4K signal, and high-bandwidth 4K at 60 Hz with full 4:4:4 color is usually far less tolerant than older or lower-bandwidth modes.

DisplayPort passive copper cables are most reliable on short runs for high-bandwidth modes. A passive DisplayPort cable may be fine around 7 to 10 ft for 4K at 60 Hz, but much more demanding modes such as 4K at 120 Hz with DSC can push passive reliability down to roughly 3 to 7 ft, while longer runs often need active or optical cable designs.

A 4K signal at 120 Hz needs about 23.88 Gbps for standard 24-bit color before transmission overhead, while 4K at 60 Hz needs about 11.94 Gbps and 4K at 144 Hz needs about 28.66 Gbps. That is why the same cable can behave perfectly on an office monitor at 60 Hz and then fail on a gaming or ultrawide display once you enable higher refresh.

Which Cable Type Makes Sense for Monitors Today

Match the cable to the display goal

DisplayPort usually offers more data throughput for PC gaming monitors, which makes it the safer default for high-refresh desktop displays, adaptive sync, and multi-monitor setups. HDMI is still a strong choice, especially for consoles and monitors with HDMI 2.1, but older HDMI versions are more likely to cap refresh or color features on demanding panels.

Cable type	Best fit for monitor setups	Where problems show first	Practical advice
VGA	Legacy displays only	Soft text, ghosting, interference	Avoid for gaming, high-refresh, and ultrawide monitors
DVI	Older 1080p or some 1440p setups	Resolution and refresh ceilings	Use only if both monitor and GPU are older
HDMI	Consoles, TVs, many modern monitors	Long runs at 4K, high refresh, HDR	Use the right speed class for the target mode
DisplayPort	PC gaming, high refresh, multi-monitor	Very high bandwidth over longer passive runs	Best default for demanding desktop monitors
USB-C with DP Alt Mode	Portable monitors, clean one-cable desks	No video, flicker, or power issues	Confirm video support, power support, and direct compatibility

Higher cable price does not improve digital picture quality by itself. A more expensive cable does not make text sharper or colors richer; what it can do is reduce errors, instability, and handshake failures when you are close to the limit.

To reach advertised HDMI performance, the cable has to match the bandwidth class. For monitor buyers, that usually means Premium High Speed or 18 Gbps class for solid 4K at 60 Hz with HDR, and Ultra High Speed for 4K at 120 Hz or similarly demanding gaming modes.

Why USB-C and Portable Monitors Fail Differently

USB-C portable monitors often need both Power Delivery and DisplayPort Alt Mode. A low-cost USB-C cable may charge a device but still fail to carry video, and some portable monitors need at least 30W while larger models can need as much as 60W to operate reliably.

A dock can lower the video budget by splitting USB-C’s high-speed lanes. In one practical case, a direct USB-C-to-DisplayPort connection enabled 4K at 120 Hz, while a docked path had much less usable video bandwidth and became the real bottleneck.

Simple physical checks solve a surprising number of portable-monitor problems. Fully seat the cable, clear lint from the port, power both devices off for about 30 seconds, reconnect directly, and verify the monitor is on the correct input before you assume the panel is defective.

How to Tell a Cable Problem From a Settings Problem

Read the symptom carefully

When bandwidth runs short, systems usually give up refresh rate first. After that, you may see reduced chroma, lower bit depth, lost HDR, or a complete signal failure, so a monitor that still shows 4K but only at 60 Hz is often telling you the link negotiated down.

Adapters and converters are more likely to complicate the path than a direct cable. A good first test is to remove docks, switch boxes, extensions, and format converters, then connect the monitor to the highest-spec port on the GPU with one short cable.

The monitor’s on-screen menu is often the fastest truth check. If the operating system says 3840 x 2160 but the monitor OSD shows 60 Hz instead of 120 Hz, the cable path or port choice is limiting the real mode.

Practical Next Steps

Buy for the exact mode you want

The safest buying rule is to match the cable to the exact mode you want, not just the connector shape. For a high-refresh gaming monitor, that means checking the best shared port version on the GPU and monitor first; for a portable monitor, it means confirming both video support and enough power on the same USB-C path.

For longer monitor runs, changing cable technology works better than gambling on a longer passive copper cable. If your desk or wall route needs more distance, active copper, active optical, or a structured extender is usually the reliable fix for high-bandwidth video.

If you are troubleshooting, it can help to swap in one known-good, short cable that matches the mode you want, such as a 1.5m DP 1.4, 1.5m HDMI 2.0/2.1, or 1.8m USB-C option like reliable short display cables for gaming and productivity monitors. That gives you a simple way to rule out cable length or spec mismatch before you blame the monitor or GPU.

Keep demanding HDMI or DisplayPort monitor runs as short as practical, ideally around 6 to 10 ft for desk setups.
Use DisplayPort first for high-refresh PC monitors unless HDMI 2.1 is the clearly better shared option.
Buy certified cable classes, not mystery cables with vague “8K” marketing.
Remove adapters, extensions, and docks before troubleshooting picture loss or refresh-rate drops.
For portable monitors, verify USB-C Power Delivery and DisplayPort Alt Mode on both the cable and the port.
Check the monitor OSD after every change so you confirm the real refresh rate and color mode, not just the desktop resolution.

FAQ

Q: Can an expensive cable make my monitor image sharper?

A: No. If a digital cable is already carrying the full signal correctly, a pricier one will not improve sharpness or color. Better cables mainly improve reliability when the setup is close to the bandwidth or length limit.

Q: Why does my monitor still show 4K but lose 120 Hz?

A: Resolution is only part of the load. Moving from 4K at 60 Hz to 4K at 120 Hz roughly doubles the data rate, so the system may keep 4K resolution but negotiate down to 60 Hz when the port, cable, dock, or adapter cannot hold the higher mode.

Q: Is HDMI or DisplayPort better for gaming and ultrawide monitors?

A: On PCs, DisplayPort is usually the safer choice for high-refresh and multi-monitor use because it often offers more headroom. HDMI 2.1 is also excellent if both the monitor and source support it, but older HDMI versions are easier to outgrow on demanding displays.
