How to Identify Banding and Posterization on Your Monitor Before It Ruins Your Final Output

Banding shows visible steps where a gradient should look smooth, while posterization turns subtle tones into harsh blocks. The fastest way to catch both is to test known gradients full-screen, compare SDR and HDR behavior, and isolate whether the flaw comes from the file, GPU output, cable, settings, or panel.

Does a dark game sky, product render, or edited portrait suddenly look like it has rings, stripes, or chunky shadow patches? A 10-minute gradient check can prevent bad exports, rejected creative reviews, and inaccurate HDR tuning before the final file leaves your desk. You’ll learn how to spot the artifact, prove where it starts, and tune your display chain with confidence.

What Banding and Posterization Look Like

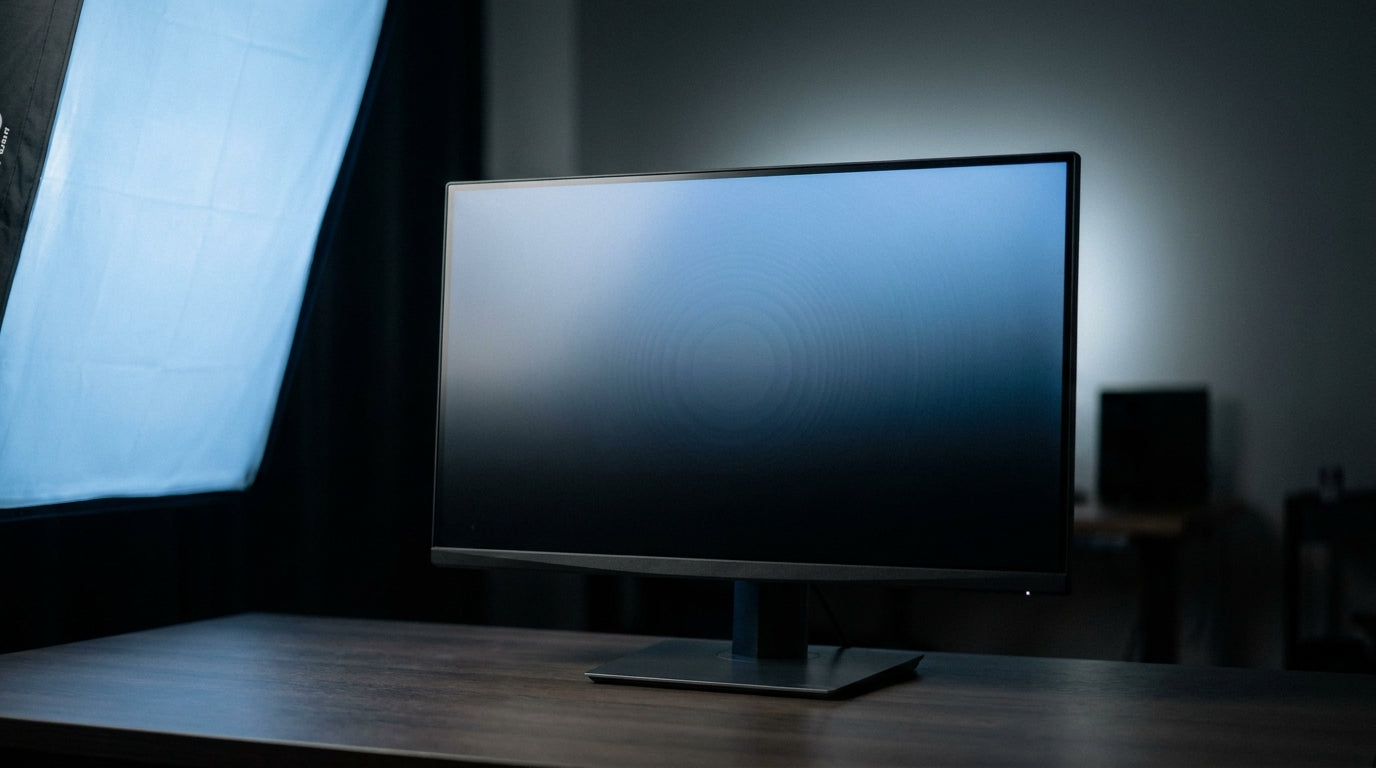

Color banding is a digital imaging artifact where smooth transitions appear as visible bands or steps. On a gaming monitor, it often appears in fog, smoke, loading screens, skies, bloom, and near-black scenes. On an office or creative display, it shows up in presentation backgrounds, photo skies, product shadows, soft UI gradients, and video fades.

Posterization is more aggressive. Instead of a gentle ramp from dark blue to light blue, you see abrupt color zones, almost like a low-color poster effect. The two terms are often used together because the visible symptom is similar: the screen cannot represent subtle tonal changes smoothly enough for the eye to accept them.

A simple real-world example is a dark gray-to-black wallpaper. If it looks smooth on your phone but shows wide rings on your monitor, the issue may not be the image itself. It could be your monitor mode, GPU color depth, HDR tone mapping, cable bandwidth, browser scaling, or the panel’s own gradation behavior.

Why It Happens Before You Notice It

Banding is usually a precision problem. An 8-bit signal gives 256 tonal levels per red, green, and blue channel, while 10-bit output gives 1,024 levels per channel. That extra precision matters because HDR, wide color, and high-contrast displays stretch subtle differences over a larger visual range.

The tricky part is that a premium display alone does not guarantee clean gradients. A browser-rendered gradient may still be limited by the output path, and even a 10-bit or 12-bit display can reveal stepping if the source, software, or signal chain is lower precision. Shader-gradient testing notes that standard 24-bit color output, meaning 8 bits per RGB channel, can still show visible banding on high-end displays because the rendered output is already constrained.

HDR makes the problem easier to see. HDR color banding can be exposed by bit depth, tone mapping, compression, cable bandwidth, GPU settings, firmware, or monitor processing. A 4K gaming display at 144 Hz may behave differently from the same monitor at 120 Hz if the connection cannot preserve the best color format at the higher refresh rate.

The Fast Visual Test: Full-Screen Gradients

Start with a neutral gradient test, not a movie, game, or social media image. A proper dynamic range banding test should show adjacent stripes increasing by similar visual increments, with no sudden jumps, color shifts, or uneven temperature changes across the gray ramp.

Run the test full-screen and inspect it from your normal working distance first, then lean in. For a 27-inch desk monitor, that often means checking from about 2 to 3 ft away, then closer for confirmation. If the gradient looks smooth at normal distance but slightly stepped up close, that may be acceptable for office work or gaming. If you can see obvious bands from your chair, it is a workflow problem.

Use red, green, blue, and neutral gray ramps. Gray is especially revealing because unwanted color casts become obvious. If the middle of a gray ramp turns greenish or magenta while the ends stay neutral, you may be looking at calibration, panel uniformity, or processing behavior rather than ordinary source banding.

Separate File Banding From Display Banding

The most reliable diagnostic move is comparison. Open the same gradient or image on another display, then compare a screenshot to what your physical monitor shows. If the screenshot looks smooth on another screen but your monitor shows bands, the likely problem is the output path, monitor processing, or panel behavior. If the artifact appears everywhere, the source file or render is probably already banded.

Creative workflows need one extra check: view the file at 1:1 scale. Pixel-sized dithering can be damaged by browser zoom, scaling, or image resampling. Gradient tests that use tiny noise-based dithering should be judged at native pixel scale because resizing can undo the effect and bring visible bands back.

For photo editors, a solar curve check is useful because it exaggerates subtle tonal breaks. In a careful photo-editing workflow, banding removal should be a last resort; the better move is to identify the cause earlier in editing or export. If the banding was introduced by an 8-bit export, aggressive compression, or a heavy adjustment layer, the monitor is only revealing a file problem.

Check the Signal Chain Before Blaming the Panel

A display can only show what the GPU sends. Confirm that the operating system and GPU control panel are outputting the intended resolution, refresh rate, color format, and bit depth. Incorrect range settings can make gradients look crushed or washed out, especially when RGB Full and limited-range video settings are mismatched.

Cable bandwidth matters. Common monitor issues often trace back to loose cables, unsupported refresh rates, outdated drivers, or insufficient HDMI and DisplayPort capability. For high-refresh 4K HDR, use a certified cable, test another port, and temporarily lower the refresh rate to see whether 10-bit output becomes available.

Here is the practical comparison that saves time:

Tune Monitor Settings for Clean Gradation

Disable image “enhancers” while testing. Dynamic contrast, vivid color, black equalizer, eco brightness, blue-light modes, and aggressive HDR modes can all make gradients look worse. These settings may be useful for competitive visibility or casual viewing, but they are poor choices for judging final output.

For color-critical work, start from a neutral preset such as sRGB, Creator, Standard, or a calibrated user mode. General LCD quality guidance recommends letting an average LCD warm up for about 30 minutes before judging gradation, and that advice tracks with real desk use: a cold panel can look different from the same panel after it stabilizes.

Brightness and room lighting also matter. A near-black gradient viewed in a bright room may hide problems, while the same gradient in a dark room can reveal every step. For final video, photo, or game-capture review, test under the lighting condition closest to where you make approval decisions.

HDR and Gaming: The High-Performance Trap

Gaming monitors are often pushed hardest at exactly the point where gradient precision gets fragile: high resolution, high refresh rate, HDR, VRR, and aggressive picture processing all at once. If banding appears in HDR games at 144 Hz, test 120 Hz before assuming the panel is defective. If it improves, you may have found a bandwidth or negotiation limit.

VRR can complicate perception. Some owner reports describe banding or posterization becoming more noticeable at lower frame rates, while disabling adaptive sync can reduce the issue in certain scenarios. That does not mean VRR is always the cause; it means the display’s processing path may change depending on refresh behavior, frame pacing, and monitor firmware.

For final capture review, pause the scene. Motion, compression, and fades can create temporary artifacts that are not identical to static gradient banding. A paused sky, smoke plume, or dark menu gives you a cleaner read on whether the monitor is stepping through tones or whether the content itself is compressed.

When Dithering Helps and When It Hides a Bigger Problem

Dithering adds controlled noise to disguise hard tonal transitions. It can be highly effective because the eye accepts a fine texture more naturally than a hard band. Color banding fixes commonly include dithering or increased bit depth, but those are not interchangeable solutions.

Dithering is a practical display and rendering tool, especially for gradients in web graphics, shaders, and exported images. Some shader workflows recommend adding a tiny amount of pixel-based noise, roughly one 8-bit grayscale level, to make soft gradients appear smoother without a heavy performance cost. For a portable smart screen or browser-based dashboard, that can be the difference between a premium-looking background and a cheap-looking one.

The limitation is important: dithering can mask transitions, but it does not restore lost tonal detail if the file has already been crushed by low bit depth or compression. For professional output, prefer higher-bit-depth rendering and export first, then use dithering as a controlled finishing technique.

Pros and Cons of Common Fixes

Final Pre-Output Check

Before approving a render, wallpaper pack, edited image, product mockup, or HDR gameplay capture, run one final pass with a neutral gradient, a color gradient, and the actual output file. View at native resolution, test SDR and HDR if relevant, and compare at least one second display when the result matters.

Clean gradients are not cosmetic. They are proof that your whole display chain is preserving subtle information from source to screen. Catch banding early, and your final output keeps the immersive depth, tonal control, and professional finish you intended.
