Use aspect-ratio-preserving scaling, pillarboxing, or windowed playback so 16:9 video and games stay correctly shaped on a 21:9 or 32:9 ultrawide monitor.
Ever open a show, game cutscene, or console feed on an ultrawide display and see faces stretched sideways or black bars taking over the sides? On a 3440x1440 monitor, a 2560x1440 image has the right height but not the right width, so one wrong scaling mode can turn a sharp 16:9 picture into a distorted full-screen image. Here is how to keep the image clean, avoid stretching, and choose the right setting for movies, games, streaming apps, and high-refresh-rate monitors.
Why 16:9 Content Shows Black Bars on an Ultrawide Monitor
Most TV shows, console games, web video players, and many esports titles are built around 16:9. Ultrawide monitors are wider: common 21:9 models add horizontal space, while 32:9 super-ultrawide panels are roughly like placing two 16:9 displays side by side. When 16:9 content is shown correctly on a wider screen, the monitor has empty space on the left and right, so it fills that space with vertical black bars.
Those bars are not a defect. They are the display preserving the original geometry of the content. If a 16:9 image is forced to fill a 21:9 or 32:9 panel, the width expands more than the height, which makes faces look wider, circles look oval, and game UI elements appear in the wrong proportions. A display explanation of letterboxing describes the same basic tradeoff: bars preserve the frame, while stretching or cropping changes what you see.
The 3440x1440 Example
A 3440x1440 ultrawide monitor has a 21:9-style shape. A 2560x1440 signal is 16:9. Both have 1,440 vertical pixels, but the 16:9 signal is 880 pixels narrower than the monitor’s native width.
If the monitor, GPU, or operating system uses full-screen scaling, that 2560-pixel-wide image is expanded across 3,440 pixels. The result fills the display, but it does not preserve the image. If the system uses aspect-ratio scaling or 1:1 scaling, the 2560x1440 image stays centered, with black bars on the sides.
Why This Matters More on Gaming Monitors
On a regular office display, distortion may be annoying. On a gaming monitor, it can affect aim perception, motion judgment, and UI readability. A stretched minimap, widened crosshair, or distorted character model is not just cosmetic; it changes how the game feels.
This is especially important when you lower resolution for performance. Moving from 2560x1440 to 3440x1440 increases the pixel workload by about 34%, so many players drop to 2560x1440 for higher frame rates. That can work well, but only if the scaling mode preserves the aspect ratio instead of stretching the image across the ultrawide panel.
Choose the Right Viewing Mode: Pillarbox, Crop, Zoom, or Windowed
There is no single best mode for every source. The right choice depends on whether you care more about accurate geometry, filling the screen, preserving the full frame, or reducing distractions.
Viewing option |
What it does |
Image quality |
Best for |
Main drawback |
Pillarboxing |
Centers 16:9 content with black bars on the sides |
Best geometry; often sharpest at native source size |
TV shows, console games, esports, accurate video playback |
Does not fill the ultrawide screen |
| Aspect-ratio scaling | Enlarges content as much as possible without distortion | Good, depending on scaling quality | PC games, media players, GPU scaling | May look slightly softer than native mapping | | 1:1 or no scaling | Shows every source pixel without resizing | Sharpest pixel mapping | Retro games, pixel art, testing, capture preview | Image may appear smaller | | Cropping | Cuts part of the image to fill more screen | Can stay sharp, but loses picture area | Cinematic content when framing still works | Removes top, bottom, or side content | | Zooming | Enlarges content beyond the visible frame | Similar to cropping, often app-controlled | Web video or casual streaming | Can hide subtitles, scoreboards, or HUD elements | | Stretching | Forces 16:9 to fill 21:9 or 32:9 | Distorted geometry | Rarely recommended | Faces, circles, UI, and aim feel wrong |

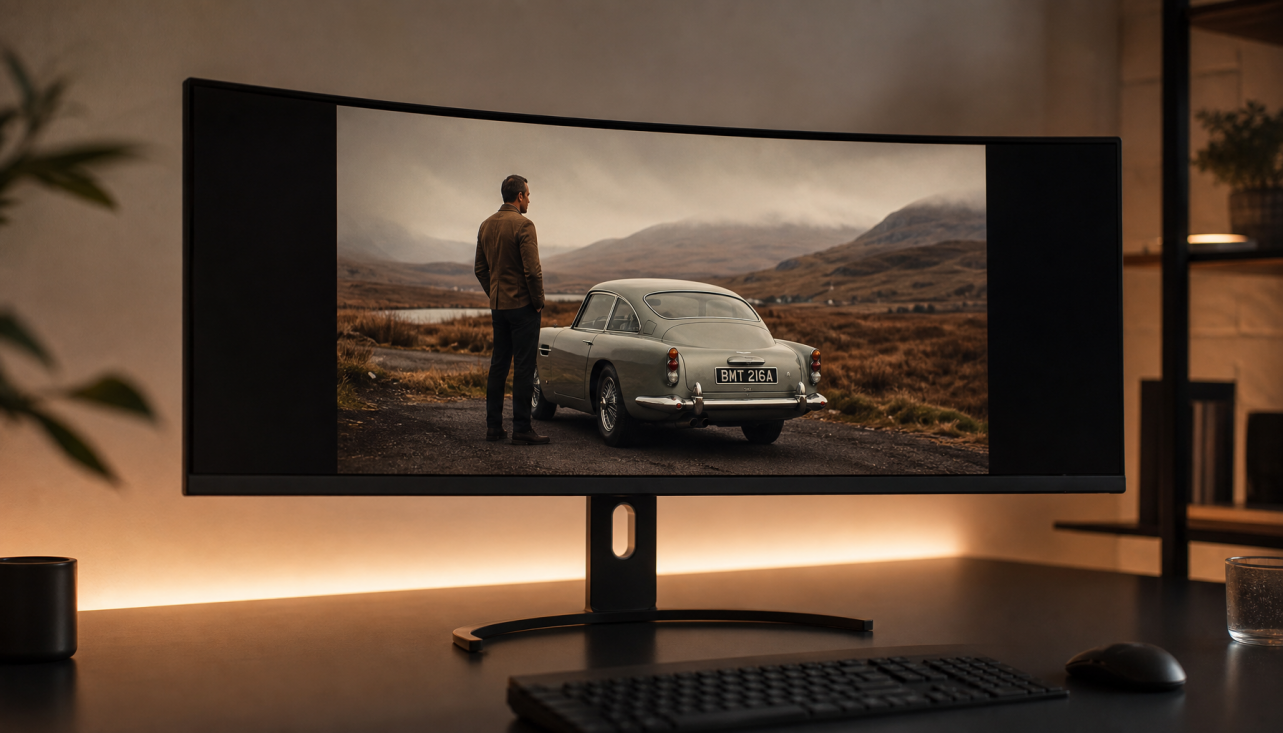

Pillarboxing is usually the cleanest answer for 16:9 material. It keeps the full frame and avoids distortion. In older display discussions, pillarboxing is described as using black bars instead of stretching non-widescreen content, and that definition still fits modern ultrawide setups.
When Cropping Makes Sense
Cropping can be acceptable when the content was framed loosely or when the video already has unused space. Some streaming players and browser extensions offer zoom modes that crop the top and bottom so the image fills more of a 21:9 screen. This can look immersive for some movies, but it is risky for subtitles, sports scoreboards, creator overlays, and game HUDs.
For competitive games, cropping is usually the wrong choice unless the game officially supports the target aspect ratio. If the engine renders a proper 21:9 field of view, that is different from cropping a 16:9 image. Cropping removes information; native ultrawide support adds horizontal view or adjusts the presentation correctly.
When Windowed Playback Is Better
Windowed playback is underrated. If a streaming app or browser insists on poor full-screen scaling, playing the video in a 16:9 window can preserve quality and leave room for chat, system monitoring, notes, or a second app on the same ultrawide desktop.
On a 32:9 monitor, this can be the most practical layout. A 16:9 video can sit on one side while a browser, Discord-like chat, or game guide stays on the other. You do not get an artificial full-screen effect, but you also avoid distortion, blurry scaling, and hidden interface elements.
Set Scaling Correctly in the Monitor, GPU, and Operating System
The safest setup starts with the monitor’s native resolution and refresh rate. For a 3440x1440 gaming monitor, set the desktop to 3440x1440 and the correct refresh rate, such as 144 Hz, 165 Hz, or whatever the panel officially supports. Then set the game, player, or console input to preserve aspect ratio.
Stretching often happens because one part of the chain overrides another. The game may output 2560x1440, the GPU may scale it to full panel, and the monitor may apply a “Wide” or “Full” mode on top. A practical ultrawide troubleshooting path is to confirm native resolution first, then use aspect-ratio scaling modes such as “Aspect Ratio,” “Maintain Aspect Ratio,” “No Scaling,” “Original,” “1:1,” or “Aspect.”
Monitor OSD Settings to Check
Start with the monitor’s on-screen display menu. Look for settings named “Aspect,” “Screen Size,” “Display Mode,” “Scaling,” “Wide Mode,” “Original,” “1:1,” or “Auto.” These names vary by brand, but the behavior is usually similar.
For 16:9 content on an ultrawide monitor, use “Aspect,” “Original,” “Auto,” or “1:1” when available. Avoid “Full,” “Wide,” or “Stretch” if the goal is accurate 16:9 playback. On some monitors, this setting only appears when the monitor receives a non-native signal, such as 2560x1440, 1920x1080, or a console input.
GPU Scaling Settings
Graphics control panels usually provide a second layer of control. For NVIDIA, AMD, and Intel graphics, look for display scaling or GPU scaling options and choose a mode that preserves aspect ratio. If the image still stretches, test both GPU scaling and display scaling because the better option can depend on the monitor firmware, input type, refresh rate, and whether HDR or variable refresh rate is enabled. On a 49-inch DQHD 32:9 display such as the KTC H49S66, a 16:9 source should use aspect-ratio or pillarbox scaling rather than stretching across the full panel.
A real-world Linux example shows why this setting can be system-dependent: a user with a 3440x1440 monitor reported that 2560x1440 appeared centered with side padding on Windows 10, while the same resolution stretched under Fedora 36 with GNOME and Wayland. That case involved Intel and NVIDIA hardware, and it illustrates that stretching behavior may come from the driver stack, compositor, desktop environment, or monitor scaling path.
Cable and Input Details
Use a cable and port that support the monitor’s full resolution and refresh rate. DisplayPort or a modern HDMI connection is usually preferred for high-refresh-rate ultrawide monitors. If the connection falls back to a lower resolution, the monitor may expose fewer scaling options or apply a full-screen stretch automatically.
Older setups also show why the input path matters. In one display forum discussion, ATI/AMD’s “centered timings” option was reported as available only for digital outputs, not analog connections. That matters less for current DisplayPort and HDMI setups, but the lesson remains useful: scaling features can depend on the connection type, not just the monitor size.
Best Settings for Streaming, Media Players, Consoles, and Games
For streaming video, start by turning off any browser extension, player setting, or monitor mode that claims to “fill” the screen. Many of those modes are simply zoom or stretch controls. If a 16:9 show looks wide, switch the player back to original aspect ratio, normal zoom, or default full-screen mode.
For local video playback, media players often provide better control than streaming apps. Look for aspect ratio options such as “Default,” “16:9,” “Fit to Window,” “Keep Aspect Ratio,” or “No Stretch.” Avoid manually forcing 21:9 unless the video itself is actually 21:9. A 16:9 file should remain 16:9, even when the monitor is wider.
Console Inputs on Ultrawide Monitors
Most consoles are designed around 16:9 output. If you connect one to a 21:9 or 32:9 monitor, expect side bars when the monitor is configured correctly. That is normal and usually preferable to stretching.
Set the console to a standard 16:9 resolution such as 1920x1080 or 2560x1440 when supported, then set the monitor scaling mode to “Aspect,” “Original,” or “1:1.” If the console image fills the ultrawide screen and looks wide, the monitor is probably using “Full” or “Wide” scaling.
PC Games and Cutscenes
PC games are more complicated because menus, gameplay, cutscenes, and pre-rendered videos may use different aspect ratios. A game may support 3440x1440 during gameplay but still show 16:9 cutscenes with side bars. That is not necessarily a problem; it may be the game preserving the original cutscene frame.
For games that stretch, set the desktop to the monitor’s native resolution, then match that resolution in the game. If you intentionally run 2560x1440 on a 3440x1440 monitor for performance, choose aspect-ratio scaling in the GPU or monitor menu. Ultrawide support still varies across game engines, older titles, esports games, menus, and cutscenes, so some content will remain locked to a 16:9 frame even on a high-end ultrawide display.
High-Refresh-Rate Considerations
Scaling should not force you to give up refresh rate, but poor signal negotiation can. After changing aspect or scaling settings, recheck the refresh rate in the operating system and in the game. A monitor that should run at 165 Hz may fall back to 60 Hz if the cable, port, color depth, HDR setting, or resolution combination exceeds the available bandwidth.
Also check variable refresh rate settings after troubleshooting. G-SYNC Compatible, FreeSync, or adaptive sync behavior can vary between full-screen exclusive mode, borderless windowed mode, and windowed playback. If a game looks correct but feels less smooth after a scaling change, verify both refresh rate and adaptive sync state.
Does Scaling Reduce Quality?
Scaling can reduce sharpness, but it depends on what kind of scaling is happening. Preserving aspect ratio maintains the correct shape; it may still resize the image. Non-uniform scaling stretches width and height differently, which changes geometry and is the mode to avoid.
Native resolution is usually the sharpest option because the source, desktop, and panel all align. For example, a 3440x1440 game on a 3440x1440 monitor uses the full panel directly. A 2560x1440 game on that same panel can still look good with aspect-ratio scaling, but the image is either centered with side bars or scaled by the GPU or display. A monitor-focused explanation notes that native resolution usually delivers the sharpest image, while forced scaling is a workaround for unsupported formats.
GPU Scaling vs Display Scaling
GPU scaling is handled by the graphics card before the signal reaches the monitor. Display scaling is handled inside the monitor. App-level scaling is handled by the video player, browser, game engine, or streaming app.
There is no universal winner. GPU scaling often gives more consistent controls across monitors. Display scaling may introduce less processing in some setups and can be useful for consoles or devices that do not have GPU control panels. App-level scaling is best when the app understands the content properly, but it can be limited by streaming service restrictions, protected video playback, or simple player design.
Black Bars That Look Gray
On some monitors, side bars may look gray instead of black. That usually has less to do with aspect ratio and more to do with panel contrast, backlight bleed, local dimming behavior, brightness settings, or the room environment.
For IPS ultrawide monitors, slightly glowing bars in a dark room are common because the backlight is always active. VA and OLED panels can make bars look darker, but they come with their own tradeoffs, such as response-time behavior on some VA models or burn-in considerations on OLED. Lowering brightness, using bias lighting behind the monitor, and checking black-level settings can make pillarboxing less distracting without damaging image geometry.
Buying and Setup Advice for People Who Watch a Lot of 16:9 Content
If most of your time is 16:9 streaming, console gaming, and video calls, a standard 16:9 monitor may still be the cleanest fit. A 27-inch 2560x1440 high-refresh-rate display gives strong gaming performance, wide compatibility, and no side bars for common video formats.
If you split time between gaming, productivity, and cinematic PC titles, a 34-inch 3440x1440 ultrawide is often the more balanced choice. It gives extra workspace and wider game views when supported, while 16:9 content remains usable with side bars. A standard 2560x1440 monitor has about 3.7 million pixels, while a 3440x1440 ultrawide has almost 5 million pixels, so the ultrawide asks more from the GPU but gives more horizontal space.
When a 32:9 Monitor Makes Sense
A 32:9 super-ultrawide is best for users who want a dual-monitor-like workspace without a bezel in the middle. It can be excellent for racing sims, flight sims, trading layouts, editing timelines, and multitasking. For ordinary 16:9 video, though, it leaves much larger side areas unless you use windowed layouts or place other apps beside the content.
That is not a flaw if you plan for it. A 32:9 monitor can run a 16:9 video on one side and a full browser or chat window on the other. It becomes less ideal if your expectation is that every movie, show, console, and game will fill the entire screen without tradeoffs.
Portable and Secondary Monitor Setups
Portable monitors are usually 16:9 or 16:10, which can make them useful companions to ultrawide desktop setups. If you dislike side bars during streaming but still want an ultrawide for PC work and games, a smaller secondary display can handle 16:9 video cleanly.
For laptop users with ultrawide monitors, check how the operating system handles mixed displays. Use the ultrawide at native resolution for desktop work, then keep video players on a 16:9 secondary panel when you want a full-frame viewing experience without scaling decisions.
Action Checklist
- Set the ultrawide monitor to its native resolution, such as 3440x1440, in the operating system.
- Confirm the correct refresh rate, especially on 144 Hz, 165 Hz, 240 Hz, or higher gaming monitors.
- Open the monitor OSD and choose “Aspect,” “Original,” “Auto,” or “1:1” instead of “Full,” “Wide,” or “Stretch.”
- In the GPU control panel, enable aspect-ratio-preserving scaling or no scaling.
- In media players and streaming apps, keep the original aspect ratio and disable zoom-to-fill settings unless you accept cropping.
- For PC games, match the game resolution to the monitor’s native resolution when possible.
- If you lower resolution for performance, use aspect-ratio scaling so 2560x1440 or 1920x1080 does not stretch across the ultrawide panel.
FAQ
Q: Can I remove black bars from 16:9 video on an ultrawide monitor without stretching?
A: Yes, but only by cropping, zooming, or using a windowed layout. Cropping and zooming can fill more of the screen, but they remove part of the image or hide interface elements. If you want the full 16:9 frame with correct geometry, side bars are the proper result.
Q: Should I use GPU scaling or monitor scaling?
A: Use whichever gives correct aspect-ratio preservation at the resolution and refresh rate you need. For a PC gaming monitor, GPU scaling is often easier to control and test. For consoles and external media devices, monitor scaling may be the only practical option.
Q: Why does my game support ultrawide gameplay but still show 16:9 cutscenes?
A: Gameplay, menus, and cutscenes can be rendered differently. A game may support 3440x1440 during gameplay while locking pre-rendered videos or scripted scenes to 16:9. In that case, side bars are usually the game preserving the cutscene frame rather than a monitor problem.
Key Takeaways
Black bars are usually the correct way to show 16:9 content on a 21:9 or 32:9 ultrawide monitor. They preserve the original shape of the picture, which matters for movies, streaming video, console games, PC cutscenes, and competitive gameplay.
The practical fix is simple: use native resolution for the desktop, verify refresh rate, and choose aspect-ratio-preserving scaling in the monitor, GPU driver, game, or media player. Avoid “Full,” “Wide,” and “Stretch” modes unless you are intentionally accepting distortion. If you want to use more of the ultrawide screen, choose cropping, zooming, or windowed multitasking with a clear understanding that each one trades away part of the original viewing experience.
