Verify Console Frame Rate & Fix 60 Hz Bottlenecks

Performance mode only helps if your console, cable, monitor input, and game settings are all sending and displaying the expected frame rate. The quickest check is to confirm the console video output, the game’s performance mode, and the monitor’s on-screen refresh-rate readout.

You turned on performance mode, but the game still feels softer or slower than expected. In practice, many high-refresh-rate monitors can fall back to 60 Hz because of a console setting, HDMI bandwidth limit, or monitor input mode. This guide shows you how to verify what your monitor is really receiving and how to fix the most common 60 Hz bottlenecks.

FPS, Hz, and What Your Monitor Actually Shows

Diagram comparing FPS (frames per second from the console) versus Hz (monitor refresh rate) as two related but distinct metrics

Frame rate and refresh rate are related, but they are not the same thing. FPS is how many frames the console or game renders, while Hz is how many times the monitor can refresh the image each second; a 60 Hz display refreshes 60 times per second, while a 120 Hz display refreshes 120 times per second refresh rate.

That difference matters because a console can run a game in performance mode without guaranteeing that every moment is locked to the target FPS. A game may target 60 FPS or 120 FPS, but heavy scenes, ray tracing modes, high resolutions, or unstable frame pacing can reduce the real output.

Why Performance Mode Is Not Always Full Speed

Most console games use modes such as quality, fidelity, balanced, or performance. Fidelity modes often prioritize visual settings at 30 FPS, while performance modes usually reduce some graphics features to target 60 FPS or 120 FPS performance modes.

The monitor still has to support that target at the selected resolution. For example, a 1440p gaming monitor may support 120 Hz over one HDMI port but only 60 Hz over another. A 4K monitor may need HDMI 2.1 to accept 4K at 120 Hz from a modern console.

Start With the Console and Game Settings

Before blaming the monitor, check the console’s video output menu. On modern high-performance consoles, set the console to the highest supported refresh rate, usually 120 Hz, and enable VRR if your monitor supports it. Then open the game’s graphics menu and confirm that performance mode, 120 FPS mode, or high frame rate mode is enabled.

Some games also require a restart, a specific display mode, or a lower resolution to unlock 120 FPS. If the console dashboard is set to 120 Hz but the game is still capped at 60 FPS, the monitor may correctly report 120 Hz while the game itself is only sending 60 unique frames per second.

Gamer pressing the monitor OSD button to check the incoming refresh rate signal while playing a console game

The monitor’s on-screen display is one of the most useful verification tools because it shows the incoming signal. A proper gaming monitor OSD will often list resolution, refresh rate, HDR status, adaptive sync, and input source. If the console says 120 Hz but the monitor OSD says 60 Hz, the signal path is still limited.

For a quick real-world example: if a 27-inch 1440p 165 Hz monitor shows “2560 x 1440 / 60 Hz” in the OSD while a console game is set to performance mode, the issue is likely not the panel’s maximum refresh rate. It is more likely the active HDMI mode, the cable, console output setting, or a game-specific cap.

Check the Cable, Port, and Resolution Limit

Two HDMI cables side by side illustrating the difference between standard HDMI and high-speed HDMI 2.1 required for 4K 120Hz console output

High refresh rates are bandwidth-sensitive. HDMI or DisplayPort cables must support the required signal speed for the resolution and refresh rate you want required speeds. For current consoles, HDMI is the important connection: modern high-performance consoles use HDMI output, so the monitor’s HDMI capability matters more than its DisplayPort headline spec.

A common trap is buying a monitor advertised as 144 Hz, 165 Hz, or 240 Hz, then connecting a console through an HDMI port that cannot carry the desired console signal. HDMI 2.0 can work for many 1080p and 1440p high-refresh setups, but 4K at 120 Hz generally requires HDMI 2.1 on both the console and monitor.

For comparison, if you are using a 4K display such as a 27” 4K 160Hz/320Hz 90W Gaming Monitor, check the listed 4K and 120 Hz support before assuming the console or game settings are the problem.

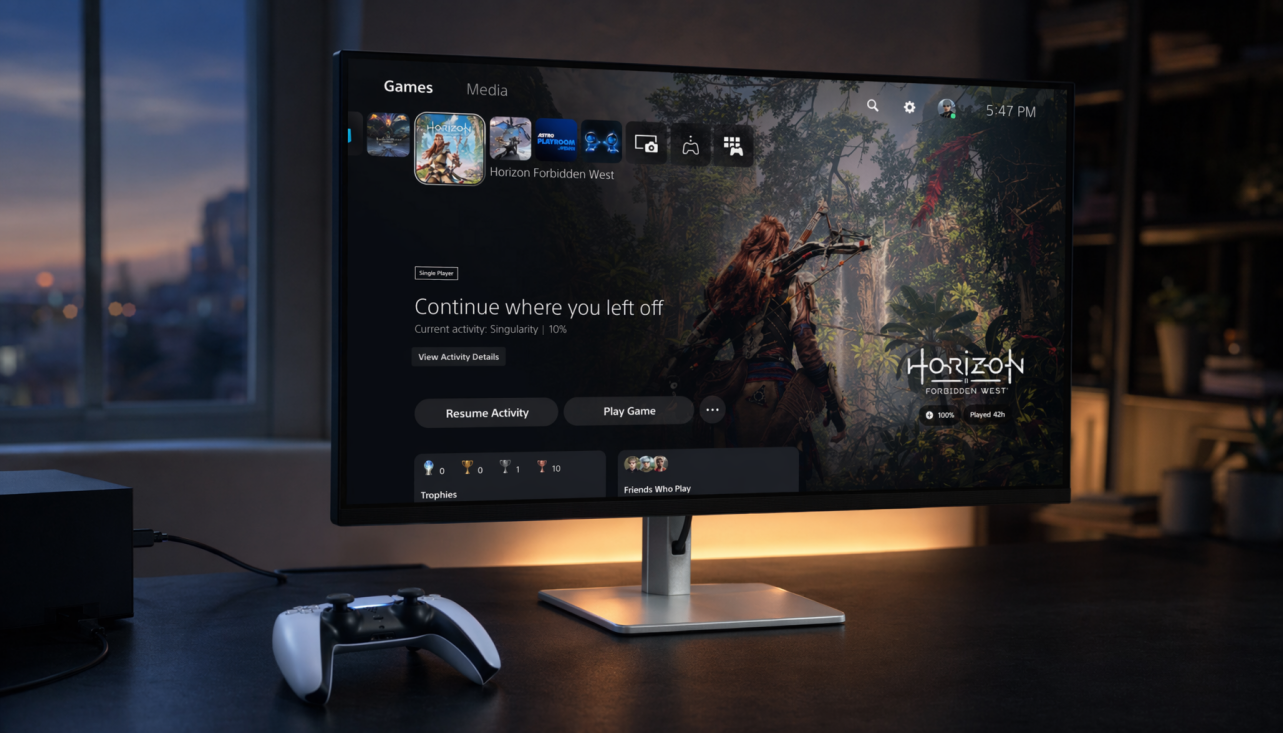

KTC 27-inch 4K 160Hz gaming monitor on a gaming desk connected to a console via HDMI, with a controller in the foreground

Target Console Output	Monitor Requirement	Cable/Input Requirement	What to Check
1080p at 60 FPS	60 Hz or higher	Standard HDMI is usually enough	Game mode, console resolution
1080p at 120 FPS	120 Hz or higher	HDMI input must support 120 Hz	Console 120 Hz setting, OSD readout
1440p at 120 FPS	120 Hz at 1440p	HDMI bandwidth must support 1440p/120	Monitor HDMI spec, console resolution
4K at 120 FPS	120 Hz at 4K	HDMI 2.1 recommended	Certified high-speed cable, HDMI 2.1 port
40 FPS mode	120 Hz display	120 Hz output required	Game mode, 120 Hz console output

Confirm With a Practical Display Test

For a PC-connected monitor, a desktop operating system provides a useful comparison point. Users can open Start > Settings > System > Display > Advanced display to view or change the active refresh rate Advanced display. If the same monitor reaches 120 Hz or 144 Hz from a PC but not from the console, the monitor panel is probably fine.

Browser-based motion tests can also help when connected to a PC. Test patterns are commonly used to confirm smooth frame delivery, and a monitor refresh check should combine OS settings, the monitor OSD, and a motion test rather than relying on a single readout three checks.

What About 40 FPS Modes?

Some console games offer 40 FPS modes for a smoother alternative to 30 FPS without the visual tradeoffs of 60 FPS. These modes need a 120 Hz display because 120 divides evenly by 40, allowing each frame to be displayed for three refresh cycles 120 Hz display.

On a 60 Hz monitor, 40 FPS cannot be paced evenly, so motion may feel uneven. If you bought a high-refresh-rate gaming monitor partly for 40 FPS quality modes, verify that the console is actually outputting 120 Hz before judging the mode.

Tune Monitor Settings for Low-Lag Console Play

Once the refresh rate is correct, check the monitor’s picture mode. Game, FPS, or Instant modes usually reduce input lag by disabling extra image processing reduce input lag. Avoid modes designed for movies, vivid showroom color, or heavy sharpening when playing fast console games.

Use the monitor’s native resolution when possible. Non-native scaling can add processing and soften the image, especially on 1440p and 4K monitors. If your monitor has separate HDMI compatibility modes, enhanced format settings, adaptive sync toggles, or console mode presets, test them one at a time and recheck the OSD after each change.

Settings Worth Testing

Enable the console’s 120 Hz output mode.
Enable VRR only if both the console and monitor support it.
Use Game, FPS, Instant, or Low Latency picture mode.
Turn off motion smoothing, black frame insertion, strobing, and heavy image enhancement.
Use the native resolution unless a specific game requires lowering it for 120 FPS.
Recheck the monitor OSD after every major setting change.

Common Reasons You Still See 60 Hz

A monitor advertised as 144 Hz, 165 Hz, or 240 Hz may still default to 60 Hz because high-refresh monitors often ship or negotiate at 60 Hz until the source is configured correctly default to 60Hz. This is especially common when switching between a PC, console, capture card, HDMI switch, or AV receiver.

The fix is usually systematic: remove extra devices, connect the console directly to the monitor, use the correct HDMI port, choose the console’s supported resolution, and confirm the monitor OSD. If it works directly but fails through a switch, receiver, or capture device, that middle device is probably limiting the signal.

Action Checklist: Verify Full Performance Mode Output

Set the console to the highest supported refresh rate, usually 120 Hz.
Enable the game’s performance, high frame rate, or 120 FPS mode.
Open the monitor OSD and confirm the incoming signal reads 120 Hz, not 60 Hz.
Use the monitor’s correct HDMI port, preferably the one labeled for high bandwidth or console support.
Use an HDMI cable rated for the target resolution and refresh rate.
Turn on Game or Low Latency mode and disable extra image processing.
Test one change at a time, then recheck the OSD after each change.

FAQ

Q: Why does my monitor show 120 Hz, but the game still feels like 60 FPS?

A: The console may be outputting a 120 Hz signal while the game itself renders at 60 FPS. The monitor OSD confirms signal refresh rate, but it does not always prove the game is producing 120 unique frames per second.

Q: Do I need a 240 Hz monitor for console gaming?

A: Usually no. Current console high-frame-rate modes most commonly target 60 FPS or 120 FPS. A good 120 Hz or higher gaming monitor with the right HDMI support is more important than buying a 240 Hz panel that cannot accept the console’s best signal over HDMI.

Q: Can VRR fix performance mode drops?

A: VRR can smooth changing frame rates by matching the monitor refresh cycle to the console’s output, but it cannot make a 60 FPS game render at 120 FPS. It works best when the game already runs within the monitor’s supported VRR range.

Key Takeaways

Performance mode is only one part of the chain. To verify full frame-rate output, check the game mode, console video settings, HDMI cable, monitor input capability, and the monitor’s OSD readout.

For most console players shopping for a gaming monitor, the practical target is clear: choose a monitor that supports your preferred resolution at 120 Hz over HDMI, includes low-lag game modes, and clearly reports the incoming signal in its OSD.
