Your monitor is receiving an HDMI 2.1-class signal only when the full chain confirms the target mode, such as 4K at 120 Hz, HDR, VRR, and the expected color format, without flicker, blackouts, or forced chroma reduction.
Is your “4K 120 Hz” monitor still feeling like a sharper 60 Hz office display once the game starts? A proper check can reveal whether the playback device, cable, monitor port, and handshake are all delivering the high-bandwidth mode you paid for. Here’s how to verify the signal in plain terms, from quick menu checks to installer-grade testing.
Why “HDMI 2.1” Does Not Always Mean Full HDMI 2.1 Performance
HDMI 2.1 is best understood as a capability chain, not a sticker. The HDMI Forum’s Ultra High Speed HDMI Cable program specifies cables designed for up to 48 Gbps, which is the bandwidth associated with demanding modes like 4K at 120 Hz and uncompressed 8K at 60 Hz. If any part of your setup falls short, the final signal drops to what the weakest connection can carry.
That weak point might be the cable, but it can also be the playback device, monitor input, AV receiver, soundbar, dock, adapter, firmware, or the monitor’s own port configuration. In real testing, I treat HDMI 2.1 as a live signal path: the monitor is not “getting HDMI 2.1” just because the box says so; it is getting a specific resolution, refresh rate, color depth, chroma format, HDR mode, audio mode, and sync behavior.
The practical target for most gaming and high-performance display owners is 4K at 120 Hz with HDR and VRR active. For an office productivity display, the target might be 4K at 120 Hz with clean 4:4:4 chroma so text remains crisp. For a portable smart screen, the target may be simpler: stable 4K at 60 Hz, HDR where supported, and no random handshake drops when switching devices.
Start With the Monitor’s Signal Information Screen

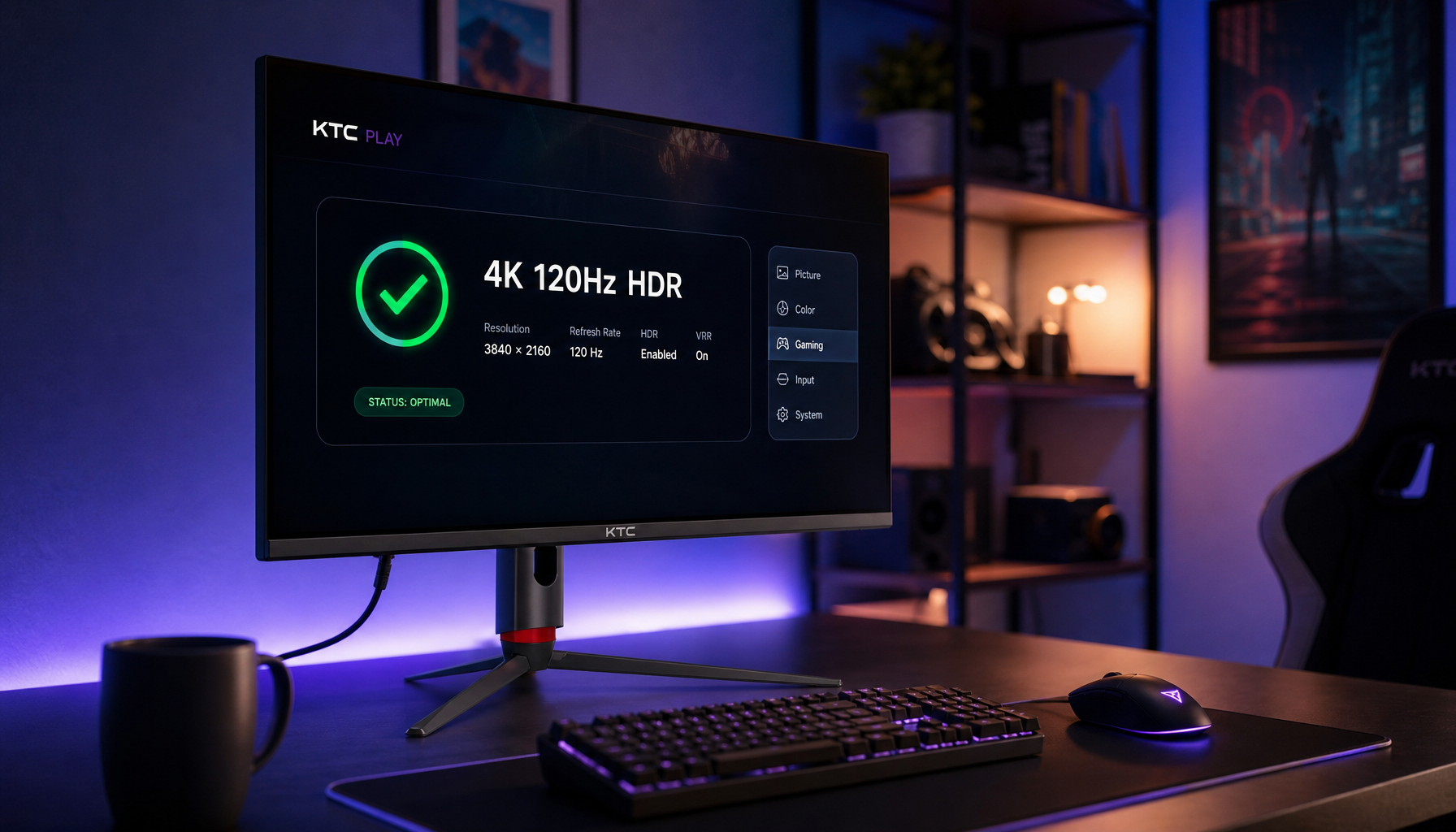

The fastest check is your monitor’s on-screen display. Look for an information page, input status screen, game dashboard, or signal details panel. A useful monitor will show resolution, refresh rate, HDR state, VRR or adaptive sync status, and sometimes color format.
If it says 3840 x 2160 at 120 Hz, that is a strong first pass. If it says 3840 x 2160 at 60 Hz, the monitor is not currently receiving the high-refresh HDMI 2.1 signal you expected. If it shows 120 Hz but the picture looks slightly soft on desktop text, look deeper for chroma format. A 4:2:2 or 4:2:0 signal can be fine for video and games, but it can make small text and colored UI edges look less precise than 4:4:4.
For example, a current game console connected to a 4K gaming monitor should be able to show 4K at 120 Hz in compatible games when the console, monitor input, and cable are all configured correctly. If the monitor’s info screen locks at 60 Hz, you are not troubleshooting “feel”; you are troubleshooting a measurable signal limit.
Confirm the Playback Device Is Outputting the Right Mode
Your console or PC also needs to report the same result. On a gaming PC, check the display settings and GPU control panel. You want the active resolution to match the monitor’s native resolution and the refresh rate to be set manually to 120 Hz, 144 Hz, or whatever target your monitor supports over HDMI.
On consoles, use the video output information screen. A modern HDMI 2.1 monitor buying decision should verify explicit support for 4K at 120 Hz, VRR, ALLM, actual bandwidth, and console compatibility rather than relying only on the HDMI 2.1 label; the KTC buying notes call out that full 48Gbps ports can support uncompressed 4K at 120 Hz with 4:4:4 chroma, while lower-bandwidth implementations may rely on subsampling.
That distinction matters for work as much as play. A console game may look fine at 4:2:2, but a desktop with spreadsheets, code editors, and small red or blue text can reveal softness immediately. If you bought one display for competitive gaming and weekday productivity, 4:4:4 clarity is not a luxury feature; it is part of the performance value.
Verify the Cable Is Certified for the Bandwidth
The most reliable cable check is not the printed claim “HDMI 2.1.” HDMI cable categories are certified by bandwidth, and many discussions around cable labeling point out that “HDMI 2.0 cable” or “HDMI 2.1 cable” is often marketing shorthand. For today’s high-bandwidth setup, the phrase you want is Ultra High Speed HDMI Cable.
A certified cable package should include the official certification label with a QR code, and the HDMI Forum recommends scanning that label with the HDMI Cable Certification app. Practical cable advice also emphasizes that the official certification label is the most dependable way to identify a cable built for HDMI 2.1-level bandwidth.
Length also matters. For most desk setups, a short certified cable is the cleanest path. Notes from multiple cable-focused references converge around a practical rule: passive HDMI 2.1 runs are safest around 10 ft, while longer routes may need active or optical HDMI solutions. If your display works at 4K at 120 Hz with a 6 ft cable but flickers with a 25 ft cable, the monitor is telling you the high-bandwidth signal is unstable, not that the panel is defective.
Check the Full HDMI Chain, Not Just the Monitor
A direct device-to-monitor connection is the control test. If your PC or console reaches 4K at 120 Hz directly but drops to 4K at 60 Hz through a receiver, dock, capture card, or soundbar, the middle device is limiting the signal. HDMI 2.1 features require every relevant connection to support them.
This is especially common in hybrid desks. A laptop dock may advertise 4K output but only support 4K at 60 Hz over HDMI. A soundbar may pass HDR but not full 4K at 120 Hz. A portable smart screen may accept USB-C display input at a different capability level than its mini-HDMI port. Before replacing the monitor, remove every intermediate device and test the shortest possible path.
What You See |
Likely Meaning |
What To Try |
4K at 60 Hz only |
Playback device, port, cable, or adapter is capped below target |
Set refresh manually and test a direct connection |
4K at 120 Hz but soft text |
Chroma may be reduced to 4:2:2 or 4:2:0 |
Check GPU color format and monitor bandwidth mode |
Flicker or black screen |
Signal instability or handshake failure |
Use a certified shorter cable and update firmware |
HDR unavailable |
Playback device, monitor mode, or cable-chain limitation |
Enable enhanced HDMI/input mode and retest |
VRR unavailable |
Feature mismatch or console compatibility issue |
Confirm HDMI Forum VRR support, not only generic adaptive sync |
Enable the Monitor’s Enhanced HDMI Mode
Many monitors and TVs hide full bandwidth behind a setting named Enhanced Format, HDMI 2.1 Mode, 4K 120 Hz Mode, Game Mode, Input Signal Plus, or similar. If this is disabled, the port may behave like an older HDMI input even though the hardware can do more.
The setting is usually per input. That means HDMI 1 might be configured for full bandwidth while HDMI 2 stays in compatibility mode. On a multi-device gaming desk, this creates a frustrating illusion: one console works perfectly, while another identical cable on another port is stuck at 60 Hz. Check the monitor manual, then verify each physical port from the on-screen display rather than assuming all HDMI ports are equal.
ALLM can also affect the experience. Auto Low Latency Mode switches supported displays into a lower-lag gaming mode, but it does not prove that the signal is 4K at 120 Hz. Treat ALLM as a useful comfort feature, not a substitute for checking resolution and refresh rate.
Understand EDID, HDCP, HDR, and Chroma Without Getting Lost
EDID is the handshake data your monitor sends to the connected device to describe what it can accept. Professional HDMI 2.1 testing treats EDID communication as a core parameter because mismatched or poorly negotiated EDID can make a capable monitor report the wrong modes.
HDCP is copy protection. If HDCP authentication fails, you may see black screens, app playback errors, or content that works in menus but fails when video starts. HDR validation is separate again: a monitor can receive 4K at 120 Hz SDR but fail to activate HDR because the playback setting, game mode, or input mode is wrong.

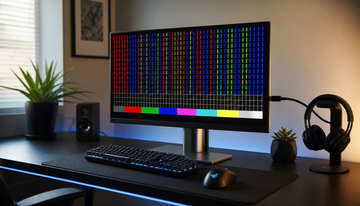

Chroma subsampling is the color-detail tradeoff. A 4:4:4 signal preserves full color resolution for every pixel, which is ideal for desktop text. A 4:2:2 or 4:2:0 signal reduces color detail to save bandwidth. That can be acceptable for movies and some games, but if your office display doubles as a gaming monitor, reduced chroma can turn premium hardware into a compromised daily work surface.
When You Need a Real HDMI 2.1 Tester
For most users, the monitor menu, playback settings, certified cable check, and direct-connection test are enough. For installers, integrators, reviewers, and serious lab work, a portable HDMI 2.1 tester can confirm the chain more rigorously. Professional testing workflows emphasize resolution, refresh rate, color depth, chroma subsampling, HDR, HDCP, audio integrity, EDID behavior, and signal stability as key validation points.
That level of testing matters when the problem is intermittent. A cable that passes a menu screen may fail during 4K at 120 Hz HDR gameplay with VRR. A long cable run in an office conference room may handle slides but drop audio when multichannel formats are enabled. A professional tester can generate known signals and analyze what comes back, which removes guesswork from expensive display deployments.
Pros and Cons of HDMI 2.1 Verification
The upside is control. Once you verify the actual signal, you know whether your monitor is delivering the motion clarity, low latency, HDR bandwidth, and desktop sharpness you bought it for. You can also avoid unnecessary returns by isolating a bad cable, underpowered dock, or disabled input setting.
The downside is that HDMI 2.1 marketing can make the process feel more confusing than it should. Some products support only selected HDMI 2.1 features, and some lower-bandwidth ports still carry the HDMI 2.1 label. The cleanest response is to stop asking whether the label is present and start asking what signal is active right now.
Final Check: The Practical Pass-Fail Test
A monitor is actually receiving the HDMI 2.1 signal you want when the connected device and display both report the target resolution and refresh rate, HDR and VRR activate where supported, text remains crisp when 4:4:4 is expected, and the image stays stable under real gameplay or workload stress. If one of those checks fails, simplify the chain, use a certified Ultra High Speed HDMI Cable, enable the monitor’s enhanced HDMI mode, and test again.
A premium screen earns its place when it turns bandwidth into visible performance: smoother motion, cleaner text, lower lag, stronger HDR, and fewer interruptions. Verify the signal once, and your monitor stops being a spec-sheet promise and becomes a dependable part of the setup.
