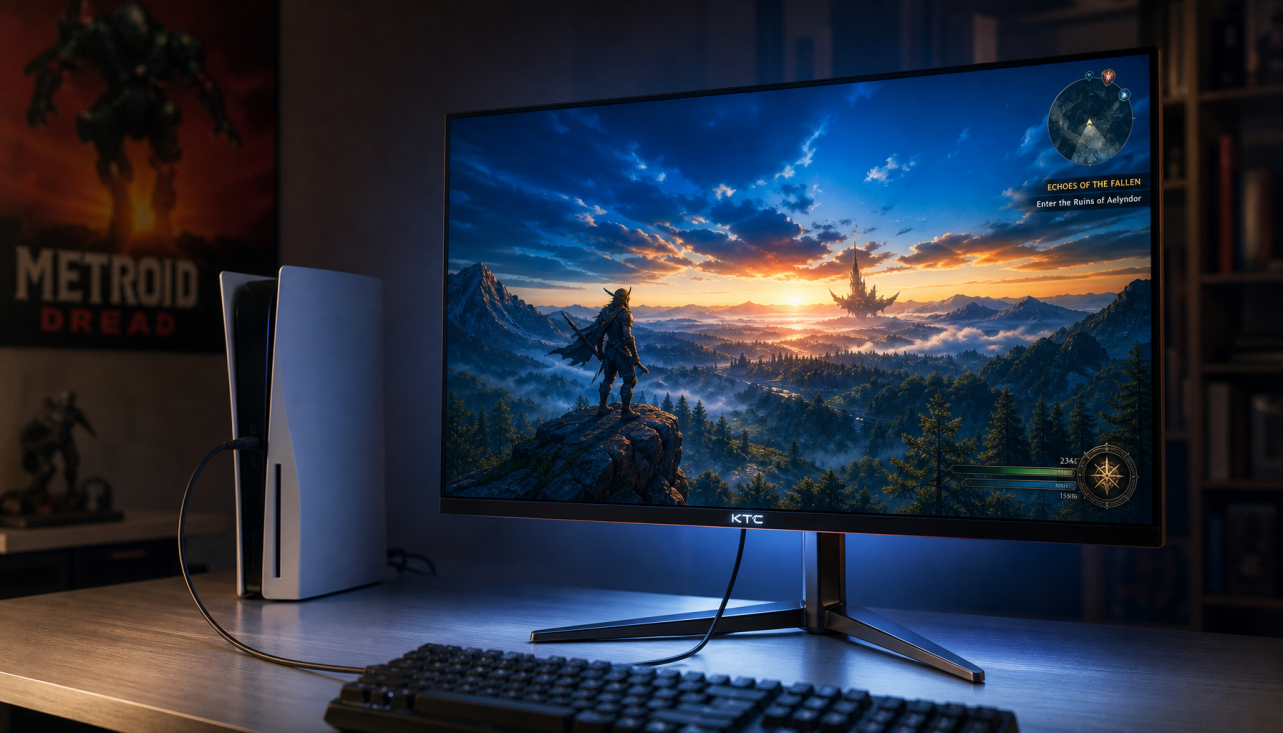

Confirm 10-Bit Color from Your Console via HDMI 2.1

A console is likely outputting 10-bit color when HDR is enabled, the console video screen confirms HDR at your target resolution and refresh rate, and your monitor’s information panel reports 10 bpc, 10-bit, or an HDR 10-bit signal over HDMI 2.1. The most reliable check is to verify the console setting, the monitor status screen, and a real gradient test together.

You launch a game at 4K 120 Hz, HDR looks active, but skies still show bands and your monitor’s OSD only says “HDR” without showing bit depth. A practical check can separate true 10-bit output from 8-bit, 8-bit plus dithering, or a bandwidth-limited fallback in a few minutes. Here is how to confirm what your console is actually sending to your gaming monitor, and what to change when the signal is not what you expected.

Why 10-Bit Color Matters on a Gaming Monitor

10-bit color gives each red, green, and blue channel 1,024 tonal levels, compared with 256 levels per channel for 8-bit color; that raises the total color combinations from about 16.7 million to more than 1.07 billion 10-bit color. On a gaming monitor, the benefit is not that every color suddenly becomes more saturated. The real benefit is smoother transitions in HDR scenes: sunset skies, fog, smoke, muzzle-flash glow, skin tones, bright clouds, and dark shadow ramps.

Side-by-side comparison of 8-bit color banding versus smooth 10-bit HDR gradient on a gaming monitor

Bit depth is separate from color gamut. A wide-gamut gaming monitor can cover a large portion of DCI-P3, but still show visible gradient banding if the signal path, monitor processing, or panel behavior is not handling enough tonal steps. Display calibration discussions around certain gaming monitor models make this distinction clearly: gamut coverage comes from the backlight and panel color capability, while bit depth controls how smoothly tones move inside that color range gamut coverage.

HDR makes this more important because HDR content asks the display to map a wider brightness range than SDR. HDR monitor guidance notes that HDR uses at least 10-bit color depth and carries metadata such as brightness and color-space information for tone mapping HDR uses. If your console and monitor fall back to 8-bit output, HDR may still appear to switch on, but fine gradients can look harsher than they should.

8-Bit, 10-Bit, and 8-Bit + FRC Are Not the Same Thing

A true native 10-bit panel can show 1,024 shades per RGB channel without relying on temporal tricks. An 8-bit + FRC monitor rapidly alternates between nearby 8-bit shades to simulate intermediate tones, and many gaming monitors sold as “1.07 billion colors” use this approach rather than a native 10-bit panel 8-bit + FRC. That is not automatically bad for gaming. At high refresh rates, FRC can look stable and smooth, especially in motion.

The important point is that “accepts 10-bit input” does not prove “native 10-bit panel.” A monitor may receive a 10-bit HDMI signal from a game console or a computer, process that signal internally, and still display it through an 8-bit + FRC panel. For console gaming, the practical question is usually: “Is the HDMI path carrying 10-bit HDR at the resolution and refresh rate I actually play?” Native panel depth matters more for color-critical work than for most console gaming.

What HDMI 2.1 Has to Carry at 4K 120 Hz

HDMI 2.1 matters because 4K, 120 Hz, HDR, 10-bit color, and full chroma are demanding at the same time. A monitor spec audit notes that full 10-bit 4:4:4 output at 4K 120 Hz needs about 32 Gbps of bandwidth, while 4K 160 Hz needs about 37 Gbps 4K 120 Hz. HDMI 2.0’s 18 Gbps ceiling can force tradeoffs such as lower refresh rate, lower bit depth, or chroma subsampling.

Not every HDMI 2.1 port exposes the same usable bandwidth. Some gaming monitors and TVs support different Fixed Rate Link, or FRL, tiers such as 24 Gbps, 32 Gbps, 40 Gbps, or 48 Gbps. That is why a monitor box that says “HDMI 2.1” is not enough by itself; you want the actual port bandwidth, supported 4K 120 Hz HDR modes, and whether the monitor supports the color format your console is sending.

Chroma format also changes the bandwidth equation. RGB and YCbCr 4:4:4 preserve full color detail at every pixel, which is best for sharp UI text and desktop-like monitor use. YCbCr 4:2:2 reduces color resolution to save bandwidth, which can still look acceptable in games and video, but may soften colored text or fine UI edges. Discussions around 4K 120 Hz adapters and HDMI 2.1 note that 10-bit YCbCr 4:2:2 may work in cases where 10-bit RGB or 4:4:4 is not available without enough bandwidth or DSC support 4K at 120 Hz.

Key Signal Modes to Compare

Console-to-Monitor Mode	What to Expect	Common Limitation	Best Use Case
4K 60 Hz, HDR, 10-bit, RGB/4:4:4	Usually easier to sustain	Lower refresh rate	Story games, HDR movies, image quality checks
4K 120 Hz, HDR, 10-bit, RGB/4:4:4	Ideal high-end HDMI 2.1 target	Requires enough HDMI 2.1 FRL bandwidth	Premium 4K 120 Hz gaming monitors
4K 120 Hz, HDR, 10-bit, YCbCr 4:2:2	Often used to reduce bandwidth	Slight loss of chroma detail	Console gaming where text sharpness is less critical
4K 120 Hz, HDR, 8-bit with dithering	May still show HDR mode	More banding risk in gradients	Fallback mode when 10-bit is unavailable
1440p 120 Hz, HDR, 10-bit	Less demanding than 4K	Console and monitor support varies	High-refresh monitors below 4K
4K 120 Hz, SDR, 8-bit	Easy to run on many displays	No true HDR tone mapping	Competitive play with HDR off

How to Check the Console, Monitor, and Cable

Start with the console’s video output screen, then confirm on the monitor. On major console platforms, HDR must be enabled in system settings, and both platforms include HDR calibration workflows; HDR also has to be supported by the display and enabled on both sides HDR must be enabled. On one console platform, pay special attention to the 4K/HDR capability screen because HDR10 behavior is tied to 4K output in many setups.

Next, open the gaming monitor’s information panel or OSD status page while the console is actively outputting the game or calibration screen. Look for resolution, refresh rate, HDR status, bit depth, and color format. Some monitors show “3840 x 2160 / 120 Hz / HDR / 10-bit / RGB” or “YCbCr 422,” while others only show resolution and HDR. If the OSD does not list bit depth, do not treat “HDR” alone as proof of 10-bit output.

Cable quality is the simplest failure point to remove. Use a certified Ultra High Speed HDMI cable rated for HDMI 2.1, especially for 4K 120 Hz HDR. If the console lets you select 4K 120 Hz but drops HDR, flickers, blacks out, or reports limited capabilities, swap the cable before changing deeper monitor settings. A 6 ft certified cable is usually a safer first test than a long cable run through a wall, switch, capture card, or soundbar.

A Practical 7-Step Checklist

Step 1: Connect the console directly to the monitor’s HDMI 2.1 port, bypassing HDMI switches, capture cards, and receivers.
Step 2: Use a certified Ultra High Speed HDMI cable and keep the first test cable short, ideally around 6 ft.
Step 3: Enable 4K, 120 Hz, and HDR in the console video settings if your monitor supports them.
Step 4: Run the console’s HDR calibration tool and leave it open while checking the monitor OSD.
Step 5: Open the monitor information panel and record resolution, refresh rate, HDR status, bit depth, and color format.
Step 6: If 10-bit is missing, test 4K 60 Hz HDR; if 10-bit appears there, the issue is likely bandwidth or mode support at 120 Hz.
Step 7: Run a smooth gradient test or HDR scene with skies and shadows, then look for obvious banding, flicker, or color stepping.

Gamer checking HDR gradient test on gaming monitor to verify 10-bit color output quality

How to Read the Monitor’s Signal Information

The most useful monitor OSD readout combines four fields: resolution, refresh rate, HDR status, and color depth. A strong result for a 4K console setup would be 3840 x 2160, 120 Hz, HDR, and 10 bpc or 10-bit. If it also shows RGB or YCbCr 4:4:4, that means you are getting full chroma detail; if it shows YCbCr 4:2:2, the signal may still be 10-bit HDR, but with reduced chroma detail.

Be cautious with vague labels. “HDR On,” “HDR10,” or “1.07B colors” may describe the monitor mode or marketing capability rather than the live HDMI input. Monitor buying guidance warns that phrases such as “1.07 billion colors,” “10-bit processing,” and “HDR10 support” do not prove a panel is native 10-bit or that the current input is running at 10-bit HDR10 support. What matters is the live signal report at the exact mode you plan to use.

If your monitor has separate HDMI modes, enable the highest-bandwidth option. Many gaming monitors label this as Enhanced Format, HDMI 2.1 mode, 4K 120 mode, VRR mode, deep color, or input signal plus. The exact name varies by brand, but the function is similar: it lets the HDMI port advertise higher-bandwidth capabilities through EDID so the console can choose the correct mode. If that setting is off, the console may only see a safer 8-bit or 60 Hz path.

When the OSD Does Not Show Bit Depth

Some monitors do not expose bit depth in the OSD. In that case, use indirect checks. Confirm that the console reports HDR compatibility at 4K and 120 Hz, verify that the monitor switches into a real HDR mode rather than an “HDR effect” mode, and test a known smooth gradient. A review site describes gradient handling as the display’s ability to show fine color steps without visible banding, especially in skies, shadows, skin tones, and HDR content gradient handling.

A clean gradient does not prove native 10-bit hardware by itself, because good dithering can hide steps well. However, obvious bands in a console HDR calibration screen, blue sky, or dark gray ramp are a useful warning sign. If the same monitor looks smoother at 4K 60 Hz HDR than at 4K 120 Hz HDR, your 120 Hz mode may be bandwidth-limited or falling back to a lower-quality output format.

Why “4K 120 Hz HDR” Does Not Always Mean 10-Bit RGB

A console can show 4K 120 Hz and HDR while the final signal uses compromises. Depending on the console, monitor EDID, HDMI cable, and port bandwidth, the system may choose YCbCr 4:2:2, drop from 10-bit to 8-bit with dithering, or disable a feature such as VRR or HDR in certain combinations. This is why the live monitor readout matters more than a spec sheet.

Display Stream Compression, or DSC, can also affect high-bandwidth setups, although it is more common in PC DisplayPort and some HDMI 2.1 display paths than in simple console-to-monitor checks. HDMI 2.1 discussions note that DSC is optional, not guaranteed on every HDMI 2.1 display, and that support can vary by model year and brand DSC is optional. For console buyers, the practical takeaway is to verify actual supported input modes rather than assuming every HDMI 2.1 monitor behaves the same.

Another common confusion is HDR versus simulated HDR. Some monitors include “HDR effect” modes that process SDR content to look more contrasty but do not use true HDR metadata. A review site notes that simulated HDR modes can hurt image quality because they are not the same as real HDR signaling with metadata and tone mapping HDR effect. For verification, use the console’s real HDR output and the monitor’s real HDR input mode.

Troubleshooting Common 10-Bit Output Problems

If 10-bit disappears at 4K 120 Hz, reduce one demand at a time. First try 4K 60 Hz HDR. If the monitor suddenly reports 10-bit at 60 Hz, your cable, HDMI port, or monitor bandwidth may not support your preferred 4K 120 Hz 10-bit format. Then try leaving 120 Hz on but changing the monitor’s HDMI mode or console color format, if those options are available.

If HDR is unavailable, check the full chain. Connect the console directly to the monitor, avoid HDMI splitters, and confirm the cable is certified for HDMI 2.1. Then inspect the monitor’s OSD for HDMI compatibility settings. Many display problems come from the monitor advertising a limited EDID profile until the correct input mode is enabled; once fixed, the console may expose HDR, 120 Hz, VRR, or 10-bit options that were previously hidden.

If gradients still look poor after the signal reports 10-bit, the limitation may be the monitor rather than the console. A review site notes that gradient performance varies by display and matters most for shadows, sky gradients, skin tones, HDR, and content creation gradient performance. An 8-bit + FRC gaming monitor can accept a 10-bit input and still show more banding than a better-tuned panel, especially in dark HDR scenes.

Fast Diagnosis Matrix

Symptom	Likely Cause	What to Try
Monitor shows 4K 120 Hz but no HDR	HDR disabled, wrong HDMI mode, or limited EDID	Enable console HDR, monitor enhanced HDMI mode, and rerun console display detection
HDR works at 4K 60 Hz but not 4K 120 Hz	Bandwidth limit	Use certified HDMI 2.1 cable, direct connection, or accept 4:2:2 if available
Monitor shows HDR but not bit depth	OSD limitation	Use console video details, HDR calibration screen, and gradient checks
10-bit appears only at lower refresh rates	Port bandwidth or monitor mode limit	Test 4K 60 Hz, 1440p 120 Hz, and HDMI 2.1 mode settings
Text looks slightly soft in HDR mode	YCbCr 4:2:2 chroma subsampling	Prefer RGB/4:4:4 when available, especially for UI-heavy games
Skies show obvious bands	8-bit fallback, poor gradient handling, or tone mapping issue	Confirm 10-bit signal, update firmware, retest at 60 Hz, and compare HDR calibration screens

FAQ

Q: Does my monitor need to be native 10-bit for console HDR gaming?

A: Not always. A native 10-bit panel is ideal, but many gaming monitors use 8-bit + FRC and can still accept a 10-bit HDMI signal. For console gaming, the more important practical checks are whether the monitor receives 10-bit HDR at your target resolution and refresh rate, whether gradients look smooth, and whether the display’s HDR tone mapping is good.

Q: Is YCbCr 4:2:2 still 10-bit?

A: It can be. Bit depth and chroma format are different settings. A console may output 10-bit YCbCr 4:2:2 to fit within bandwidth limits, especially at 4K 120 Hz HDR. That can preserve smoother HDR gradients while reducing color detail in fine edges, which is usually more noticeable in text and menus than in fast gameplay.

Q: Why does 10-bit show up at 60 Hz but disappear at 120 Hz?

A: 120 Hz doubles the refresh demand compared with 60 Hz, so the HDMI link has less room for high resolution, HDR, 10-bit depth, and full chroma at the same time. If 4K 60 Hz HDR reports 10-bit but 4K 120 Hz does not, suspect HDMI bandwidth, the cable, the monitor’s HDMI mode, or the specific color format the console is choosing.

Practical Next Steps

To identify whether your console is outputting 10-bit color over HDMI 2.1, verify the live signal instead of relying on marketing labels. The strongest evidence is a matching set of clues: the console reports HDR support at the selected resolution and refresh rate, the monitor OSD confirms HDR plus 10-bit or 10 bpc, and real gradients look smooth without obvious banding.

For a 4K 120 Hz gaming monitor, start with a direct HDMI 2.1 connection, a certified Ultra High Speed HDMI cable, and the monitor’s highest-bandwidth HDMI mode. Then compare 4K 120 Hz HDR against 4K 60 Hz HDR. If 10-bit only appears at 60 Hz, the console is not the problem by itself; the signal chain is running into a bandwidth, EDID, cable, or monitor-mode limitation.
