Your high-refresh monitor is stuck at 60Hz because the full signal chain—GPU output capabilities, cable bandwidth, port version, and monitor OSD settings—must align perfectly. Even premium 144Hz, 240Hz, or 4K panels fail to deliver advertised performance when any link is mismatched. This education library walks through the 2026 hardware handshake so you can diagnose the bottleneck, choose the right cable, interpret Windows warnings, and verify true output before assuming the monitor is defective.
Why Your High-Refresh Monitor is Stuck at 60Hz
The most common reason a new high-refresh monitor refuses to show options above 60Hz is that the GPU cannot see the full capabilities advertised in the monitor's EDID data. EDID is the embedded information the monitor sends to the GPU describing supported resolutions, refresh rates, and color modes. If the cable cannot carry that full packet or the port lacks sufficient bandwidth, Windows simply hides the higher modes.
Old or uncertified cables are the top culprit. A cable rated only for HDMI 2.0 or basic DisplayPort 1.4 will cap most 2026 monitors at 60Hz even when the GPU and panel support far more. Incorrect port selection matters too: many GPUs have both HDMI 2.1 and older HDMI 2.0 ports, and the system sometimes defaults to the lower-bandwidth one. Finally, many monitors ship with high-refresh or overclock modes disabled in the OSD by default; until you enable them, the GPU never learns they exist.
These mismatches create the support paradox: you bought hardware capable of 144Hz or 240Hz, yet the system behaves as if it is a basic 60Hz display. The fix almost always lies in systematically checking the entire chain rather than swapping monitors.

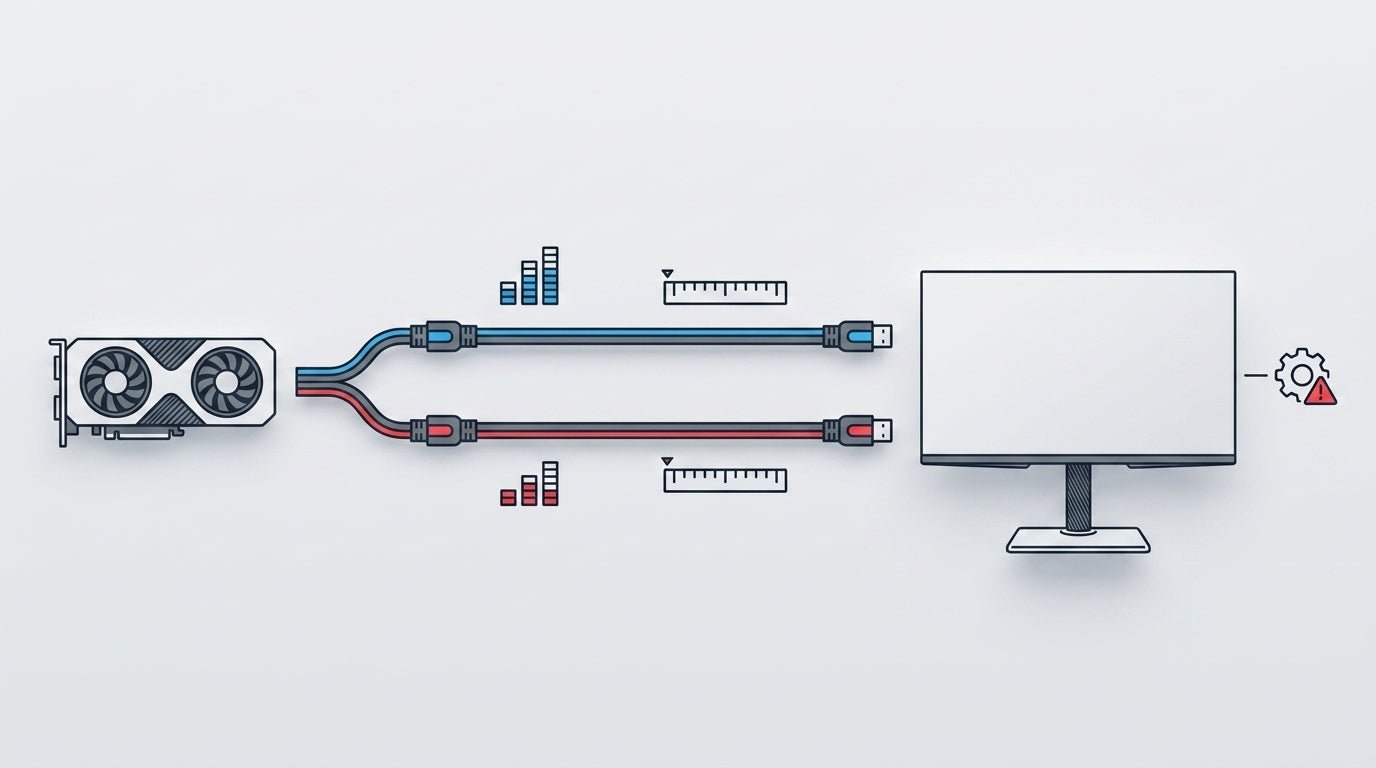

The Bandwidth Handshake: Decoding DP 2.1b vs. HDMI 2.1b
In 2026 the two dominant standards are DisplayPort 2.1b and HDMI 2.1b. VESA's DisplayPort 2.1b specification confirms that DP 2.1b delivers up to 80 Gbps using UHBR20 mode. This bandwidth supports uncompressed 4K at 240 Hz or higher on the latest RTX 50-series GPUs, making DP 2.1b mandatory for gamers who want raw performance without compression.
By contrast, the official HDMI 2.1b specification maintains a 48 Gbps ceiling. The update adds Source-Based Tone Mapping (SBTM) for better HDR consistency between PC and console sources, but the raw bandwidth limit means most 4K high-refresh modes require Display Stream Compression (DSC) or chroma subsampling. DSC is visually lossless for gaming—it reduces required bandwidth by roughly two-thirds—yet it is not mathematically identical to uncompressed video and can occasionally introduce minor handshake delays.
For most PC gamers chasing maximum refresh on 1440p or 1080p panels, either standard works if the cable and port match. For uncompressed 4K/240 Hz or future-proofing, DP 2.1b is the clearer choice. Console users will usually prefer HDMI 2.1b because it offers broader compatibility with PlayStation 5 and Xbox Series X. Always match the cable to the lowest common denominator in your chain; a premium DP 2.1b cable cannot overcome an older GPU that only outputs HDMI 2.0.
Is Your Cable the Bottleneck? The 2026 Distance Matrix
Bandwidth and cable length interact in ways many buyers overlook. Higher data rates are more susceptible to signal degradation over distance and electromagnetic interference. Passive DP 2.1b cables rated for the full 80 Gbps are generally reliable only up to about 1.2 meters. Beyond that length, most users experience dropped modes, flickering, or complete failure to reach the advertised refresh rate.
This visual clarifies the practical thresholds for typical 2026 desk setups:
When Passive Cables Stop Being a Safe Choice for High-Refresh Setups
Helps visualize the threshold in typical 2026 desk setups: passive cables are usually fine for short runs, active cables become non-negotiable as length and bandwidth demand rise, and 4K/144Hz+ setups are more likely to need them than lower-bandwidth monitor configurations.
View chart data
| Category | Passive Safe | Active Required | AOC/Long-run Preferred |
|---|---|---|---|
| DP 2.1b 80Gbps | 1.0 | 3.0 | 3.0 |
| HDMI 2.1b 48Gbps | 2.0 | 3.0 | 1.0 |
| Low-bandwidth KTC panel (~22Gbps) | 2.0 | 1.0 | 1.0 |
HDMI 2.1b is more forgiving. Certified Ultra High Speed HDMI cables (look for the exact label) can reliably carry 48 Gbps up to roughly 3 meters in passive form. Runs longer than 5 meters usually require active optical cables (AOC). Lower-bandwidth KTC models such as the H25X7 360Hz monitor need only about 22 Gbps, so good passive cables remain safe even at 5 meters.
The practical takeaway is clear: if your desk setup needs a cable longer than 1.2 meters and you are targeting uncompressed 4K or very high refresh on DP 2.1b, an active DP80LL cable is the safer default. Certified passive cables suffice for most HDMI 2.1b console or moderate PC use. Never rely on generic “DP 2.1” cables sold without proper certification for 80 Gbps work; they frequently fail the distance test.
Reading the Windows 11 'Asterisk': How to Fix Bandwidth Capping
Windows 11 (version 24H2 and later) displays an asterisk (*) next to a refresh rate in Settings > System > Display > Advanced display when the chosen mode requires compression or subsampling. According to Microsoft’s official refresh-rate guidance, the asterisk signals that the system is reducing color depth, resolution, or chroma to stay within the available bandwidth of the cable or GPU port.
Many users misread this as a simple warning and accept the default. That often triggers chroma subsampling (4:2:2), which frays small text and UI elements—exactly the complaint that leads people to blame the monitor instead of the signal chain. A better hierarchy preserves text clarity for mixed gaming and productivity use:
- First enable DSC in the monitor’s OSD if available. This is usually invisible during gameplay.
- Next, drop from 10-bit to 8-bit color depth. The bandwidth saving is roughly 20 % with negligible impact on motion clarity in non-HDR titles.
- Only as a last resort accept 4:2:2 chroma subsampling. It works for console-style gaming but visibly degrades desktop text.
Manually forcing these choices in the NVIDIA Control Panel or AMD Software usually removes the asterisk and restores full color depth at the target refresh rate. If the asterisk persists after DSC is enabled, the cable or GPU port is the true bottleneck.
Optimizing the Signal Chain: OSD Settings and GPU Overrides
Many KTC high-refresh monitors hide their highest modes until you enable them in the OSD. For example, the H25X7 requires the 400 Hz overclock option toggled on before Windows sees it. The same “toggle tax” applies to dual-mode models such as the H27P6, which must be switched from 4K 160 Hz to FHD 320 Hz in the menu.
After enabling the mode, open the GPU control software. In NVIDIA Control Panel choose “Create Custom Resolution” or simply set the desired refresh rate under “Change resolution.” AMD Software offers a similar “Custom Resolutions” path. Power-cycle the entire chain—monitor off, GPU off, cable disconnected for 30 seconds—when handshake failures produce black screens or ghost displays.
DSC should be left on for most 4K high-refresh work. It is visually lossless for gaming yet can be disabled if your cable and GPU provide enough raw bandwidth. Overdrive settings also interact with perceived smoothness; our companion guide on pixel overdrive and inverse ghosting explains how to tune them without introducing artifacts.
Compatibility Checklist: Matching Your GPU to KTC Performance Tiers
Use this decision matrix before purchasing or upgrading. Match the cable to the weakest link in the chain, verify the GPU’s port version, and confirm the monitor’s required mode is enabled in the OSD. The golden rule for 2026 is that the cable must support the full bandwidth of the highest mode you intend to use.
- RTX 50-series or equivalent with DP 2.1b: Pair with certified DP80LL active cables for any run longer than 1.2 m when targeting uncompressed 4K/240 Hz or 1440p/360 Hz. The M27P6 Mini-LED 4K 160 Hz and H27E6 300 Hz both benefit from this future-proof path.
- Older GPUs or consoles limited to HDMI 2.1b: Ultra High Speed HDMI cables up to 3 m are usually sufficient. The H27P22S 4K 160 Hz and most dual-mode KTC panels perform reliably here.
- Low-bandwidth esports panels (H25X7, H25Y7): High-quality passive cables remain safe even at longer desk lengths.
Final verification flow: (1) physical port and cable check, (2) enable target mode in monitor OSD, (3) set refresh rate in Windows Advanced Display, (4) confirm no asterisk or switch to 8-bit if one appears, (5) test with a known high-frame-rate title or the UFO motion test. If problems remain, the cable is the most likely fix.
FAQs
Do I Need an Active Cable for 144Hz or 240Hz Monitors?
Active cables become necessary only when length exceeds roughly 1.2 meters on a full-bandwidth DP 2.1b connection. For most 144 Hz or 240 Hz 1440p or 1080p setups on a standard desk, a good certified passive cable suffices. 4K/160 Hz or higher pushes the requirement earlier; check your exact GPU port version first.
What Does the Asterisk Mean Next to My Refresh Rate in Windows 11?
The asterisk indicates the chosen mode exceeds the current cable or GPU bandwidth, forcing the system to reduce color depth or apply chroma subsampling. Manually enabling DSC or dropping to 8-bit color usually removes it while preserving text clarity better than letting Windows default to 4:2:2.
Is HDMI 2.1 or DisplayPort 2.1 Better for High-Refresh Gaming in 2026?
DP 2.1b is superior for uncompressed high-refresh PC gaming because of its 80 Gbps ceiling. HDMI 2.1b at 48 Gbps is more console-friendly and often sufficient with DSC, but it cannot match raw 4K/240 Hz performance without compression. Choose based on your primary device.
How Can I Verify I Am Actually Getting the Advertised Refresh Rate?
Navigate to Windows Settings > System > Display > Advanced display and confirm the selected rate has no asterisk. Cross-check with the monitor’s built-in refresh-rate indicator if available, or run the online UFO motion test at 144 Hz or above. If motion still looks inconsistent, investigate frame-time stability in your GPU control panel.
Can a Bad Cable Cause Flicker or Black Screens Even at 60 Hz?
Yes. Insufficient bandwidth or poor shielding can prevent proper EDID handshaking, causing the monitor to lose sync entirely. Certified cables reduce this risk; generic cables marketed as “2.1 compatible” frequently fail under real load.
Should I Use DSC for 4K High-Refresh on Older GPUs?
DSC is the practical solution for achieving 4K 144 Hz or 160 Hz on DP 1.4 or limited HDMI 2.1 ports. It is visually lossless for gaming and removes the need for chroma subsampling in most cases. Disable it only when your cable and GPU supply enough uncompressed bandwidth.
Which KTC Monitors Need the Strictest Cable Requirements?
Dual-mode 4K models such as the M27P6 and H27P6, plus any 300 Hz+ esports panel pushed to its overclock limit, benefit most from certified high-bandwidth cables. Lower-resolution 360 Hz models like the H25X7 are far more forgiving on cable choice.
