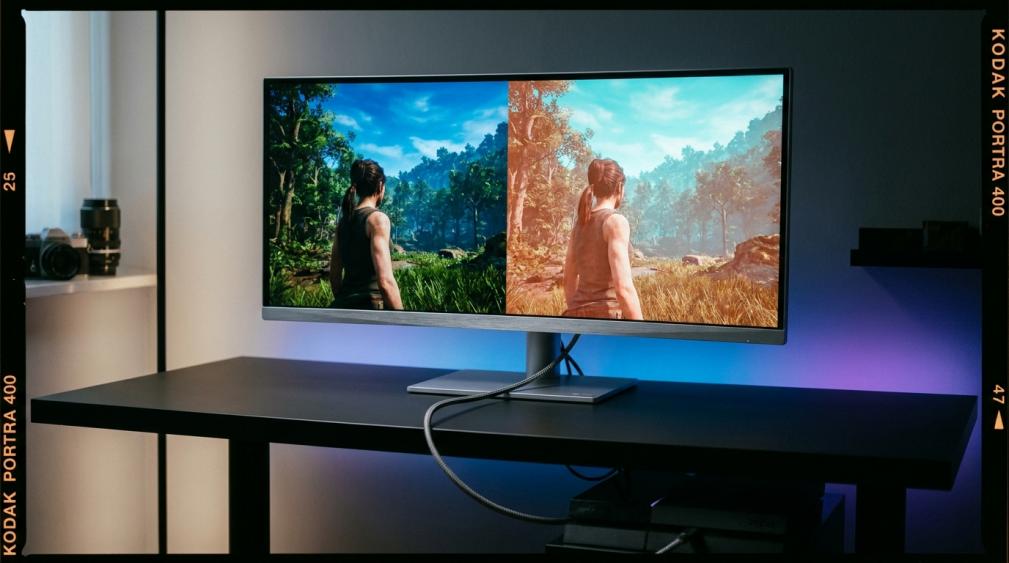

If HDR on your console makes red objects look orange, blue skies look cyan, or skin tones look sunburned, start with the signal chain: monitor picture mode, console HDR calibration, video connection color format, and RGB range. Most fixes come from removing color enhancement, matching the console output to the monitor, and calibrating HDR for the display’s real limits instead of maxing every slider.
Does your game look great in SDR, then strange the moment HDR turns on? On gaming monitors, a few wrong settings can make a high-refresh-rate display exaggerate color instead of improving it. The practical goal is simple: separate console settings, monitor processing, and panel limitations so you can get natural HDR color without guessing.
Why Console HDR Colors Shift on Gaming Monitors
Console HDR color problems usually come from a mismatch between what the console sends and how the monitor interprets it. HDR can use wider color containers, 10-bit processing, PQ transfer behavior, and tone mapping, while SDR games are commonly mastered around standard color behavior; when those paths are mixed or stretched, HDR oversaturation can push reds, greens, and blues away from the creator’s target.
This is especially noticeable on wide-gamut gaming monitors. A monitor capable of vivid color may use its native panel gamut unless you choose a controlled mode. If a console game is SDR or poorly handled HDR and the monitor stretches that signal into a wider gamut, grass can turn neon, red armor can become orange-red, and blue UI elements can drift toward cyan.
The Most Common Causes
Reds looking orange or blues looking cyan usually points to one of five issues: a vivid or dynamic monitor preset, wrong color temperature, wide-gamut oversaturation, incorrect video range, or aggressive HDR tone mapping. These are setting-level problems before they are hardware failures.
A color shift that appears only in HDR also suggests that the monitor is using a separate HDR picture pipeline. Many gaming monitors store different settings for SDR and HDR, so your carefully adjusted SDR mode may not apply once the console switches into HDR. That is why a game can look balanced in the console dashboard, then wrong after launching an HDR title.
Why HDR Can Look Worse Than SDR
HDR is not automatically more accurate. HDR content may be mastered for peak brightness levels around 1,000 to 4,000 nits, but many desktop gaming monitors cannot reproduce that brightness across real scenes. The display has to compress brightness and color into what its panel can actually show, and tone mapping can clip highlights, lift shadows, or shift color if the console, game, and monitor all process the image differently.
For example, a 144Hz or 165Hz gaming monitor may accept an HDR signal over a video connection and show the HDR badge, but that does not mean it has strong local dimming, high sustained brightness, or accurate color volume. A basic HDR mode can still look less natural than a well-tuned SDR mode.
Fix the Signal Chain Before Adjusting Saturation
Before you lower color saturation by eye, put the console and monitor into a clean baseline. The best first move is to reset the monitor’s HDR picture mode, choose the most accurate HDR preset, and turn off extra processing such as Vivid, Dynamic, Cinema, black equalizer, dynamic contrast, and color boost.
On many gaming monitors, the neutral option is called Standard, accurate HDR, HDR Game, true black, standard color, or User. The exact name varies, but the goal is the same: avoid any mode designed to make a store display look brighter or more colorful. Wide-gamut displays can make SDR console games look exaggerated when they are not clamped to standard color behavior.
Console and Monitor Settings to Check First
Symptom |
Likely Cause |
Setting to Check |
Practical Target |
Reds look orange or skin looks too warm |
Color temperature or saturation boost |
Monitor color temp, saturation, HDR preset |
Neutral white point near 6,500K; saturation at default |
Blues look cyan |
Wide-gamut stretch or wrong HDR mode |
Monitor color space, HDR picture mode |
Accurate HDR mode; avoid Vivid/Dynamic |
Blacks look gray |
RGB range mismatch or weak HDR contrast |
Console RGB range, monitor video range |
Match Full to Full or Limited to Limited |
Blacks are crushed |
Full/Limited mismatch or black level setting |
Console video range, monitor black level |
Use Auto only if it detects correctly |
Bright areas lose detail |
HDR calibration too high |
Console HDR setup, in-game peak brightness |
Stop at the first barely visible clipping point |
Color banding appears |
Bit-depth or bandwidth limitation |
Video format, refresh rate, 10-bit output |
Prefer 10-bit output; reduce refresh rate if needed |
SDR looks better than HDR |
Monitor HDR limitation |
Local dimming, peak brightness, HDR certification |
Use SDR for non-HDR games if HDR is weak |
The RGB range check matters because mismatched Full and Limited settings can make the picture look washed out or crushed. If the console sends RGB Limited and the monitor expects Full, blacks may look gray. If the console sends Full and the monitor expects Limited, shadow detail can disappear and colors can look harsh.
Quick Action Checklist
- Reset the monitor’s HDR picture mode for the console input.
- Select the monitor’s most accurate HDR mode, not Vivid, Dynamic, Cinema, or an esports color preset.
- Turn off color boost, dynamic contrast, blue-light reduction, artificial sharpness, and extra saturation.
- Match video range on the console and monitor: Full/Full or Limited/Limited.
- Use the monitor’s native resolution and a supported refresh rate for the video input.
- Run the console HDR calibration after the monitor mode is set.
- Test one SDR game and one known HDR game before changing more settings.
Do these steps in order. If you calibrate HDR first and then change the monitor’s HDR mode later, the calibration may no longer match the display behavior.
Calibrate HDR for Your Monitor, Not for the Slider Maximum
Console HDR calibration should match the monitor’s real brightness and black-level capability. Do not push every calibration screen to the highest value just because the image still looks punchy. Many games read system HDR settings, and exaggerated calibration values can force tone mapping to preserve highlights the monitor cannot actually display.
The practical method is to stop when the calibration symbol is barely visible or just disappears, depending on the console’s instruction screen. This gives the console a more realistic map of the display’s clipping point. The same logic applies to in-game HDR sliders: peak brightness, paper white, UI brightness, and black point should be adjusted for detail preservation, not maximum impact.
Use Separate SDR and HDR Presets
SDR and HDR do not share the same color behavior. SDR commonly works best with a standard color mode, gamma 2.2, and a neutral 6,500K white point. HDR uses a different brightness curve and wider color handling, so SDR and HDR settings usually should not be copied between picture modes.
For a console connected to a 27-inch, 32-inch, ultrawide, or portable gaming monitor, treat SDR and HDR like two separate profiles. Use standard color or Standard for SDR games. Use the monitor’s accurate HDR mode only when the game has real HDR support and the monitor handles HDR cleanly.
Avoid Overdriving In-Game HDR
Many games include their own HDR menus, and these can override or reinterpret console-level calibration. If reds look orange only in one game, check that game’s HDR sliders before changing system settings again. Reduce peak brightness if bright red signs or fire effects lose detail, and reduce paper white if menus or HUD elements look fluorescent.
A useful real-world test is a scene with skin tones, a blue sky, a red sign, and shadow detail. If all four look wrong, the monitor or console output is probably misconfigured. If only the sun, neon lights, or UI elements look wrong, the game’s HDR sliders may be the main issue.
Match Video Bandwidth, Color Format, and Refresh Rate
Console HDR depends on video bandwidth as much as picture settings. A monitor may support 4K, 120Hz, HDR, variable refresh rate, and 10-bit color, but not always all at once on every video input. If the cable, console, or monitor falls back to a reduced format, HDR color can look compressed, banded, or slightly off.
HDR usually benefits from 10-bit processing and clean chroma handling. Depending on the console, monitor, resolution, and refresh rate, the output may switch between RGB, component-style color formats, 8-bit with dithering, 10-bit, or chroma subsampling. Color shifts such as cyan blues, orange reds, gray blacks, or banded gradients can come from color format differences rather than the panel itself.
When to Lower Refresh Rate
If you are troubleshooting, temporarily reduce the console output from 120Hz to 60Hz and test HDR again. This is not the ideal final setting for every player, especially on high-refresh-rate displays, but it is a clean diagnostic step. If colors improve at 60Hz, the issue may be video bandwidth, cable quality, port capability, or a color format compromise at the higher refresh rate.
Use the cable that came with the console or a certified high-bandwidth display cable. Also confirm that the monitor’s video input supports the mode you are trying to use. Some gaming monitors reserve the best bandwidth for one port, while another port may accept HDR but limit refresh rate or color format.
Full vs Limited RGB
For console-to-monitor setups, RGB range is a frequent source of bad-looking HDR. Monitors often expect RGB Full because they are designed like PC displays. TVs often use Limited video range. Consoles may offer Auto, Full, or Limited, but Auto does not always handshake correctly with every gaming monitor.
If blacks look gray, try matching both devices to Full or both to Limited. If blacks crush and dark areas lose all detail, you may have the opposite mismatch. The correct setting is not the one that looks most contrasty at first glance; it is the one that preserves near-black detail without turning black into gray.
Decide Whether the Monitor Is the Limitation
Some HDR color problems are fixable. Others are caused by the monitor’s hardware. A monitor that accepts HDR input can still have limited peak brightness, weak contrast, no meaningful local dimming, or an HDR mode that prioritizes brightness over accuracy.
Entry-level HDR-certified LCD monitors are a common example. They may switch into HDR and brighten highlights, but many lack enough brightness and local dimming to create convincing HDR contrast. Displays with self-emissive panels or advanced backlights, especially models with hundreds of dimming zones, tend to have more room for HDR tone mapping; entry-level HDR-certified LCD monitors often benefit less because the hardware ceiling is lower.
Signs It Is a Settings Problem
The issue is probably settings-related if SDR looks normal, HDR looks wrong across multiple games, and the monitor is in a vivid or wide-gamut mode. It is also likely settings-related if changing RGB range immediately affects black level, or if reducing in-game HDR peak brightness restores highlight detail.
Another clue is inconsistency between inputs. If the same monitor looks accurate from a PC after calibration but wrong from a console, the console output format or HDR calibration is the first suspect. If it looks wrong from every device in HDR, the monitor’s HDR mode or panel limits are more likely.
Signs It Is a Monitor Capability Problem
The monitor may be the limitation if HDR always looks dim, flat, or unstable even after calibration. Weak local dimming can lift blacks. Low peak brightness can make HDR highlights clip or compress. Limited color volume can make saturated colors shift as brightness rises.
Portable monitors and budget high-refresh-rate displays are especially variable here. Some are excellent for SDR gaming, travel setups, or compact console stations, but HDR may be included more as a compatibility feature than a high-accuracy display mode. In that case, SDR with the right standard color mode can be the better-looking choice.
Best Settings Baseline for Console HDR on a Gaming Monitor
Start with a conservative baseline, then adjust one variable at a time. On the monitor, use the accurate HDR mode, enable local dimming if the display has useful local dimming, set color temperature near neutral, and turn off extra saturation or dynamic contrast. On the console, use the native resolution, a refresh rate the monitor fully supports, and a matched RGB range.
For SDR console games, use a standard color or Standard mode when available, with gamma 2.2 as a safe baseline. For HDR games, use the monitor’s HDR mode and run system calibration after selecting that mode. If your monitor lets you store per-input settings, dedicate one video input or preset to console HDR and another to SDR.
Recommended Starting Points
Setting Area |
SDR Console Games |
HDR Console Games |
Monitor color mode |
Standard color or Standard |
Accurate HDR, certified HDR, or HDR Game |
Color temperature |
Near 6,500K |
Near neutral; avoid Warm/Cold extremes |
Gamma / EOTF |
Gamma 2.2 |
HDR tone curve handled by HDR mode |
Saturation |
Default or calibrated |
Default; avoid color boost |
Dynamic contrast |
Off |
Off unless required by local dimming behavior |
Local dimming |
Usually off or low |
On, if the implementation is good |
Console HDR |
Off for SDR-only games |
On for real HDR games |
RGB range |
Match monitor |
Match monitor |
Refresh rate |
Native supported mode |
Test 120Hz and 60Hz if color issues appear |
If your monitor has a console mode, try it, but do not assume it is automatically accurate. Some console presets raise saturation, sharpen edges, or lift shadows for competitive visibility. That can be useful for spotting enemies, but it is not the best starting point for fixing orange reds or cyan blues.
FAQ
Q: Why do reds look orange only when HDR is enabled?
A: HDR may be triggering a separate monitor picture mode with wider gamut, warmer color temperature, or extra saturation. Reset the HDR mode, choose an accurate HDR preset, turn off Vivid or Dynamic processing, then rerun console HDR calibration. If red objects still lose detail, reduce the game’s peak brightness or saturation-related HDR setting if available.
Q: Should I use RGB Full or RGB Limited with a gaming monitor?
A: Use whichever range matches the monitor. Many gaming monitors expect RGB Full, but the important rule is matching both ends of the chain. Full-to-Full and Limited-to-Limited can both work; a mismatch is what causes gray blacks, crushed shadows, and odd-looking contrast.
Q: Is HDR worth using on an entry-level HDR-certified gaming monitor?
A: Sometimes, but not always. Many entry-level HDR-certified monitors can accept HDR signals without delivering strong HDR contrast or accurate color volume. If HDR makes games dim, washed out, or oversaturated after proper calibration, SDR in an accurate standard color mode may look better for that specific monitor.
Practical Next Steps
Fixing console HDR color shift is mostly about order. Set the monitor first, verify the video signal second, calibrate the console third, and tune the game last. If reds still look orange or blues still look cyan after that, compare SDR and HDR on the same scene to decide whether the issue is the game, the console output, or the monitor’s HDR hardware.
Use this final sequence:
- Reset the monitor’s HDR picture settings for the console input.
- Choose the most accurate HDR mode and disable artificial color enhancement.
- Match RGB range between console and monitor.
- Confirm the display cable and port support your target resolution, refresh rate, and HDR format.
- Run console HDR calibration without maxing every slider.
- Adjust in-game HDR only after system calibration is correct.
- Use SDR mode for SDR games if HDR adds color shift instead of better contrast.
The best HDR setup is not always the brightest one. On a gaming monitor, the better target is controlled color, visible shadow detail, preserved highlights, and a clean separation between SDR and HDR presets.
