Does DisplayPort MST Work With USB-C Docking Stations?

DisplayPort MST can work with USB-C docking stations when the laptop’s USB-C port supports DisplayPort Alt Mode, the dock includes an MST hub, and the operating system supports independent extended displays.

Ever plug in a USB-C dock expecting two crisp monitors, only to get one screen, mirrored displays, or a stubborn black panel? A properly matched USB-C MST dock can turn one laptop port into a cleaner dual-display workstation, often carrying power, USB, Ethernet, and video over one cable. Here is how to know whether your setup will actually extend your desktop before you buy or troubleshoot.

What DisplayPort MST Means in a USB-C Dock

DisplayPort MST, short for Multi-Stream Transport, is a DisplayPort feature that carries multiple independent video streams through one compatible connection. In a USB-C docking station, the laptop usually sends DisplayPort video through USB-C using DisplayPort Alt Mode, and the dock’s internal MST hub splits that signal into two or more display outputs.

The key point is that USB-C is only the connector shape. A USB-C port can support charging, data, video, Thunderbolt, USB4, or only some of those functions. A USB-C port that supports DisplayPort Alt Mode can carry video to a dock or monitor, but a charge-only or data-only USB-C port will not drive external displays.

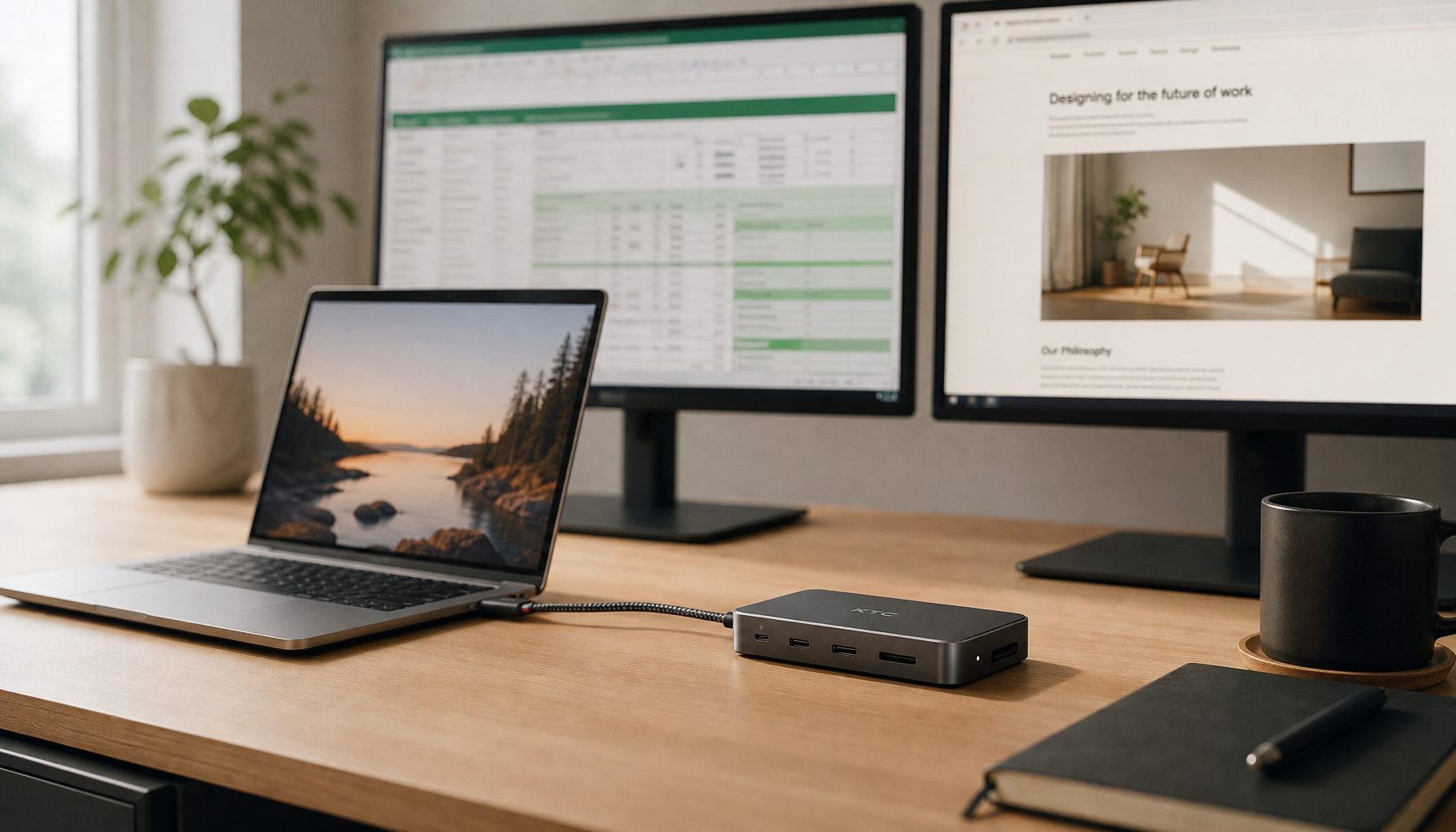

In practice, a USB-C MST dock behaves like a compact display traffic controller. One cable leaves the laptop, then the dock routes video to HDMI, DisplayPort, or sometimes USB-C display outputs. For a finance desk, coding setup, or productivity workstation, that can mean email on one screen, charts or documents on another, and the laptop panel as a third workspace.

The Short Compatibility Rule

A USB-C MST dock works when three layers agree: the host port must output DisplayPort video, the dock must support MST, and the operating system must treat the displays as separate screens. If any one layer fails, the dock may still charge the laptop or run USB accessories while video falls back to one monitor, mirrored mode, or no signal.

Windows and Chrome OS are the most predictable platforms for USB-C MST extended displays. One docking-support explainer notes that DP MST can work over USB-C ports that support DisplayPort Alt Mode, as well as over DisplayPort, Mini DisplayPort, and Thunderbolt 3 or 4 connections.

macOS is the major catch. Standard USB-C MST docks generally do not provide multiple independent extended desktops on Mac. They may mirror the same image across connected displays instead. If you want multiple extended displays from a Mac, Thunderbolt docking, DisplayLink-based docks, or a Mac model with stronger native external-display support may be required.

USB-C Docking Station Types Matter

Not every USB-C dock uses the same video path. A simple USB-C hub with HDMI may expose one display output only. A USB-C MST dock contains an MST splitter, so it can divide one DisplayPort signal into multiple outputs. A Thunderbolt dock may carry more display bandwidth and may expose displays differently, depending on its controller and internal wiring.

This is why two docks with similar port layouts can behave very differently. One may support dual 1080p at 60Hz from a Windows laptop, while another may support one 4K screen at 30Hz or 60Hz depending on bandwidth. One USB-C MST dock spec sheet, for example, describes support for one 4K display at 30Hz or dual 1080p displays at 60Hz through HDMI and DisplayPort on supported systems, while also requiring the host USB-C port to support DP Alt Mode.

For buyers, the useful question is not, “Does it have USB-C?” The useful question is, “Does my laptop’s exact USB-C port support DisplayPort Alt Mode or Thunderbolt, and does this dock explicitly support MST extended displays on my operating system?”

Bandwidth Decides Resolution and Refresh Rate

MST does not create unlimited display bandwidth. It shares one upstream DisplayPort link across all connected monitors. That is why a dock may support two 1080p screens smoothly but struggle with dual 4K at higher refresh rates.

A practical example: a compact USB-C MST dock might advertise one external display at 3840 x 2160 at 30Hz, or two displays at 1920 x 1080 at 60Hz. That does not mean the dock is defective. It means the available DisplayPort bandwidth is being divided between outputs, and higher resolution, refresh rate, color depth, HDR, and USB data can all increase demand.

For gaming-monitor users, this matters even more. A 1440p 165Hz or 4K 144Hz panel is not the same workload as an office 1080p 60Hz display. DisplayPort remains the stronger native choice for high-refresh PC gaming, while USB-C is best when single-cable convenience and desk simplicity are the priority. One interface comparison frames DisplayPort as the stronger choice for high-performance PC displays, while USB-C is the flexible option for laptops, tablets, docks, and portable setups.

Why macOS Often Breaks the Expectation

Many users discover the limitation only after the dock arrives. On Windows, two external screens through a USB-C MST dock can appear as two independent desktops. On macOS, the same dock may show only one extended monitor or mirror the same image on both external displays.

This is not usually a cable defect. It is an operating-system support issue. One MST explainer notes that macOS generally does not natively support MST for extended desktops, while Windows and Chrome OS support MST more broadly through compatible hardware. The same MST hub can therefore behave like a true multi-monitor extender on one laptop and a mirror-only adapter on another.

For Mac users, the more reliable path is to check the computer’s external-display limits first, then choose Thunderbolt or DisplayLink if independent dual displays are required. For Windows laptop users, a USB-C MST dock is usually the cleaner, better-value option, assuming the laptop’s USB-C port supports video.

Cable Quality Still Matters

A dock can only perform as well as the signal path feeding it. Poor cables can cause flicker, random disconnects, reduced refresh rates, black screens after sleep, or monitors that appear and disappear during boot.

For DisplayPort cables, certification guidance is practical: a certified DisplayPort cable should work across DisplayPort configurations, including 4K and multi-stream setups, and expensive cables do not improve picture quality once the signal is stable. The real value is reliability, because poor-quality cables can cause visible corruption, audio issues, and connection instability.

For USB-C, be more cautious. Some USB-C cables are built for charging only. Others support data but not video. For a USB-C MST dock, use the cable supplied with the dock when possible, or choose a cable that explicitly supports video, the required USB speed, and the charging wattage you need.

Pros and Cons of USB-C MST Docking

The biggest advantage is desk efficiency. One cable can connect your laptop to multiple monitors, keyboard, mouse, Ethernet, storage, audio, and power. For office productivity, trading floors, development desks, and hybrid workstations, that reduces friction every time you sit down.

The performance advantage is not raw speed; it is workflow density. A dual-monitor extended desktop lets you keep a primary task centered while reference material, chat, dashboards, or timelines stay visible. For many users, that is a bigger daily gain than chasing a higher spec on a single screen.

The tradeoff is compatibility. USB-C MST depends on the laptop port, GPU, dock, operating system, cables, and monitors. It is also not the best path for competitive gaming displays that need very high refresh rates, adaptive sync reliability, or maximum DisplayPort bandwidth. In those cases, a direct DisplayPort connection from the GPU to the monitor is still the performance-first route.

How to Buy the Right USB-C MST Dock

Start with your laptop’s exact model and port specifications. Look for wording such as DisplayPort Alt Mode, Thunderbolt 3, Thunderbolt 4, USB4 with video, or DisplayPort over USB-C. Some manufacturer documentation notes that DisplayPort over USB-C can carry DisplayPort audio and video, data, and up to 100 W of power on supported implementations, but the device documentation must confirm that the port supports it.

Next, match the dock’s advertised display modes to your monitors. If the dock says dual 4K at 30Hz, do not expect dual 4K at 60Hz. If it says Windows only for MST, treat Mac extended-display support as unlikely. If you need two 1080p 60Hz office displays, a value-oriented USB-C MST dock may be a smart buy. If you need 4K 144Hz gaming plus a second display, use direct DisplayPort for the gaming panel and leave the dock for peripherals or secondary screens.

Finally, account for Power Delivery. A dock with 60 W charging may be fine for an ultrabook but underpowered for a performance laptop under load. A dock with 100 W Power Delivery gives more headroom, but only if the laptop, charger, dock, and cable all support that power level.

Troubleshooting When MST Does Not Work

If only one display appears, first confirm the laptop port supports DisplayPort Alt Mode. Then test with one monitor at a time, lower the resolution and refresh rate, and update the GPU driver. If the monitors are daisy-chained, enable DisplayPort 1.2 or MST mode in the monitor’s on-screen menu.

If the screens mirror instead of extend, check the operating system before blaming the dock. Windows display settings should be set to extend the desktop. macOS may simply be treating the MST dock as a mirrored display path, which is expected for many USB-C MST docks.

If the display flickers or drops after sleep, replace questionable cables, use fixed monitor inputs instead of auto-detect where possible, and reduce the bandwidth load. A setup that fails at dual 4K may become stable at one 4K plus one 1080p, or at 4K 30Hz instead of 4K 60Hz.

Final Verdict

DisplayPort MST does work with USB-C docking stations, but it is not automatic. For Windows and Chrome OS laptops with USB-C DisplayPort Alt Mode, a USB-C MST dock is one of the best-value ways to build a clean multi-monitor desk. For Macs, high-refresh gaming monitors, or dual 4K performance targets, verify the display path carefully before buying, because the connector is only the beginning of the story.
