What Is DisplayPort MST and How Do You Daisy-Chain Monitors?

DisplayPort MST lets one compatible DisplayPort or USB-C video output run multiple independent monitors through a single upstream connection. Daisy-chaining works by connecting your computer to the first monitor, then linking that monitor’s DisplayPort Out to the next monitor’s DisplayPort In.

Desk covered in display cables, laptop ports already full, and still one screen short of the workspace you need? A well-matched MST chain can turn one video output into a clean dual- or triple-monitor productivity setup without adding a bulky nest of adapters. Here’s how to confirm compatibility, connect the chain, avoid bandwidth limits, and decide when a direct GPU connection is the smarter move.

What DisplayPort MST Means

DisplayPort MST stands for Multi-Stream Transport. It is a DisplayPort feature that carries multiple independent video streams over one connection, then assigns those streams to separate displays. In practice, that means your spreadsheet can live on one monitor, your browser on another, and your chat or timeline on a third, all in extended desktop mode rather than duplicated mirror mode.

MST arrived with DisplayPort 1.2, which remains the practical baseline for most daisy-chain monitor setups. DisplayPort MST differs from SST, or Single-Stream Transport, because SST sends one video stream to one display, while MST splits the available link into multiple display streams.

The important word is “independent.” A cheap HDMI splitter may put the same image on two screens, which can be useful for a lobby display or training room. It usually will not give you two separate desktops. For an actual multi-screen workstation, you want DisplayPort MST, USB-C with DisplayPort Alt Mode and MST support, Thunderbolt, or a dock that explicitly supports extended displays.

What Daisy-Chaining Monitors Actually Does

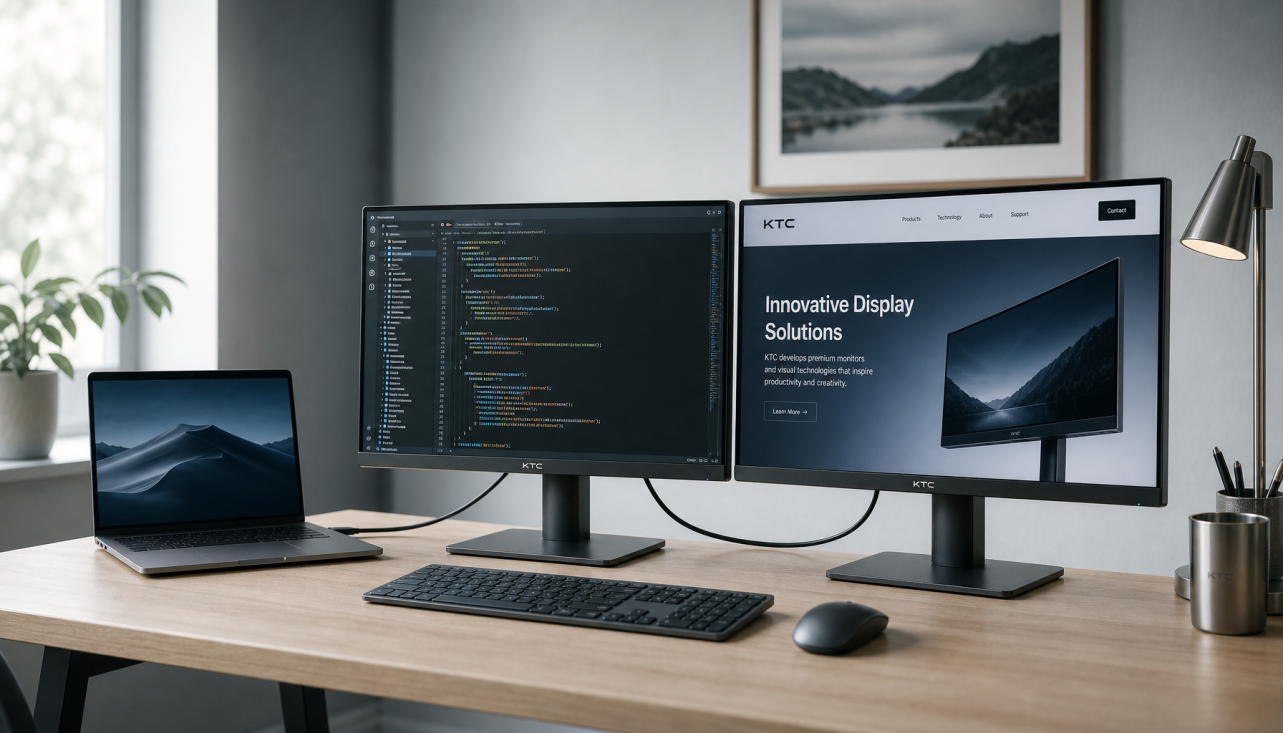

Daisy-chaining is the physical wiring method. Instead of running one cable from the computer to every monitor, you run one cable from the computer to Monitor 1, then a second cable from Monitor 1 to Monitor 2. If your hardware supports more displays and enough bandwidth remains, you can continue from Monitor 2 to Monitor 3.

A daisy-chain setup is especially useful for laptops, small desks, hot desks, and office workstations where fewer cables make daily setup faster. From hands-on workstation planning, the biggest day-to-day benefit is not just neatness; it is repeatability. One upstream cable into the first display or dock is easier to plug in correctly every morning than three separate display leads plus power and USB accessories.

The first monitor in the chain matters most. It must have a video input from the computer and a DisplayPort Out, MST Out, Thunderbolt Out, or supported USB-C chaining output. The final monitor does not need an output port because it is not passing the signal onward.

What You Need Before You Start

A working DisplayPort MST chain depends on the full signal path, not just one impressive port label. Your laptop, desktop GPU, operating system, first monitor, second monitor, cables, and monitor settings all need to line up.

For a classic DisplayPort setup, DisplayPort 1.2 or higher should be supported by the graphics card and monitors, and the first monitor needs DisplayPort Out. For USB-C, the connector alone is not enough. The USB-C port must carry video through DisplayPort Alt Mode, and the system must support MST if you want independent extended monitors without Thunderbolt.

Cables deserve more respect than they usually get. Certified DisplayPort 1.2, 1.4, or newer cables reduce the chance of flicker, black screens, unstable wake-from-sleep behavior, or a monitor falling back to a lower refresh rate. If you are pushing 1440p, 4K, HDR, or high refresh rates, cable quality becomes part of the performance chain.

How To Daisy-Chain Monitors With DisplayPort MST

Start with the physical connections. Connect your computer’s DisplayPort output to the DisplayPort In on the first monitor. Then connect the first monitor’s DisplayPort Out to the DisplayPort In on the second monitor. If you are adding a third display, repeat the same pattern from the second monitor’s output to the third monitor’s input, assuming that monitor can pass the signal onward.

Next, open the first monitor’s on-screen display menu. Many monitors ship with MST, DP 1.2, or DP Out disabled by default because some single-display setups are simpler in SST mode. Enable MST or DisplayPort 1.2/1.4 mode, then confirm the input source is set to DisplayPort rather than HDMI or Auto if detection is unreliable.

Finally, configure the operating system. Open display settings, choose Extend these displays, and drag the monitor rectangles into the same left-to-right order as your desk. For a coding setup, a strong arrangement is a center landscape screen for the active editor, a portrait side monitor for logs or documentation, and a second side screen for browser preview, chat, or dashboards.

USB-C, Thunderbolt, and Docking: Similar Look, Different Rules

USB-C makes monitor chains look simpler, but it also creates the most confusion. USB-C is a connector shape, not a guarantee of video output. A charging-only USB-C port cannot run external monitors through a passive cable just because the plug fits.

A USB-C daisy-chain setup typically needs a laptop USB-C port with DisplayPort Alt Mode and MST, a first monitor with USB-C video input and DisplayPort Out, and a second monitor with DisplayPort In. The cleanest versions can carry video, USB data, and laptop charging through one cable, which is excellent for office productivity displays and portable smart screen workflows.

Thunderbolt is often more predictable for premium laptop desks because certification narrows the compatibility spread, but it still has limits. Some systems, especially certain entry-level laptops, may not support the number of independent external displays users expect through MST-style setups. If you use a laptop with limited external display support, verify the exact model’s specifications before buying monitors.

Bandwidth Is the Performance Gate

MST does not create unlimited video capacity. Every monitor in the chain shares the upstream connection from the computer to the first display. Resolution, refresh rate, HDR, and color depth all draw from that budget.

For productivity, dual 1080p or dual 1440p at 60 Hz is often the sweet spot on modern DisplayPort or Thunderbolt hardware. A dual 1440p productivity setup gives noticeably more usable workspace than dual 1080p without pushing the chain as hard as multiple 4K or high-refresh displays.

Gaming changes the equation. The risk is not usually a simple, guaranteed input-lag penalty from daisy-chaining. The bigger issue is losing the premium behavior you paid for, such as 144 Hz, 240 Hz, adaptive sync, HDR, or stable frame pacing. If your main monitor is a 4K gaming panel or a high-refresh esports display, connect it directly to the strongest GPU output and reserve MST for secondary screens like chat, streaming tools, browser tabs, or monitoring panels.

Pros and Cons of DisplayPort MST Daisy-Chaining

The biggest advantage is a cleaner desk. One video connection from the computer can feed multiple displays, which saves ports and simplifies cable routing. For office productivity, finance dashboards, research, development, and hybrid work, that creates a wider visual workspace with less tab switching and fewer daily connection mistakes.

The second advantage is value. If your laptop and monitors already support MST, you may not need a separate multi-display dock. Even when you do use a dock, MST-capable monitors can make the setup easier to expand and cleaner to mount.

The tradeoff is compatibility. A chain is only as strong as its least capable part. One non-MST USB-C port, one monitor without DisplayPort Out, one weak cable, or one disabled monitor setting can break the whole setup. Bandwidth is the other hard limit. As soon as you move into dual 4K, HDR, high refresh rates, or mixed monitors, direct GPU outputs or a high-quality Thunderbolt dock often become more reliable.

Troubleshooting a Monitor Chain That Will Not Work

If the second monitor stays black, first confirm the cable is plugged into DisplayPort Out on the first monitor, not a second DisplayPort In. That mistake is common because ports often sit close together and labels are hard to read behind a mounted display.

If the monitor is detected but mirrors the first screen, switch the operating system from Duplicate to Extend. Extend mode is the setting that creates a seamless multi-screen workspace, while clone mode repeats the same image.

If the chain works at a lower resolution but fails at the preferred setting, you are probably hitting bandwidth or cable limits. Drop the refresh rate from 144 Hz to 60 Hz as a test, disable HDR, or try one monitor at a time. If stability improves, the issue is not mysterious; the chain is being asked to carry more display data than it can reliably handle.

Driver and firmware updates are also worth doing. Graphics drivers, dock firmware, and monitor firmware can all affect MST detection, sleep-wake behavior, and display ordering.

Who Should Use MST Daisy-Chaining?

Use MST daisy-chaining if your priority is a reliable, clean, value-smart productivity setup. It is an excellent fit for office displays, coding stations, finance desks, research-heavy work, support teams, and laptop users who want two or three screens without occupying every port.

Skip it for the primary display in a performance-first gaming setup, especially if you bought the monitor for high refresh, adaptive sync, HDR, or ultra-low frame-time consistency. Also be cautious with color-critical creative work, dual 4K-plus chains, mixed monitors with different resolutions and refresh rates, and workstations where wake-from-sleep reliability is mission-critical.

FAQ

Can HDMI Daisy-Chain Monitors?

HDMI generally does not support true independent monitor daisy-chaining. HDMI splitters usually duplicate one image, while DisplayPort MST, compatible USB-C, Thunderbolt, or a proper multi-display dock can create an extended desktop.

Does Every DisplayPort Monitor Support MST?

No. A monitor can have DisplayPort In without having DisplayPort Out or MST pass-through. For daisy-chaining, every monitor before the last one needs a supported output port.

Is DisplayPort MST Good for Gaming?

It can work for secondary gaming screens, but the primary high-refresh monitor should usually connect directly to the GPU. That preserves the best chance of full refresh rate, HDR, adaptive sync, and stable frame pacing.

A smart MST chain is one of the cleanest upgrades you can make to a productivity desk: fewer cables, more visible work, and better use of limited laptop ports. Match the hardware, respect the bandwidth, and use direct GPU outputs when performance matters more than cable elegance.
