Yes, you can use console HDR on some monitors without strong wide color gamut support, as long as the monitor accepts an HDR10 signal. The catch is that the monitor may only be processing HDR, not truly showing the richer color, contrast, and highlight detail HDR games are designed to deliver.
You turn on HDR on a console, launch a dark game, and suddenly the image looks gray, dim, or oddly flat instead of more realistic. In practical monitor testing scenarios, this usually comes down to the display’s limits: a basic 400-nit LCD panel cannot show the same HDR impact as an OLED, QD-OLED, or Mini-LED gaming monitor with stronger brightness and black control. This guide explains what actually happens, when SDR is the better choice, and what specs matter before you buy or upgrade.
The Short Answer: HDR Can Work, but It May Not Look Like HDR
A console can send an HDR signal to a monitor if the display and connection support the right HDR format, most commonly HDR10. A standards organization notes that all certified HDR display tiers require HDR10 support, but certification also includes performance requirements for luminance, color gamut, bit depth, contrast, and related HDR behavior through the HDR display standard. In other words, “accepts HDR” and “displays impressive HDR” are not the same thing.
Signal Support vs Display Capability
Think of HDR in two layers. The first layer is signal compatibility: the console, HDMI port, monitor firmware, and display mode agree to pass an HDR10 image. The second layer is display capability: the panel must have enough brightness, contrast, color range, and tone mapping quality to make that HDR signal look better than SDR.
A monitor without meaningful wide color gamut support may still switch into HDR mode. However, it cannot reproduce the wider range of saturated colors that HDR games often use for bright skies, neon signs, magic effects, lava, sunlight, and user interface highlights. The result can be a picture that is technically HDR but visually closer to SDR, sometimes with worse black levels or flatter midtones.
What You Can Still Expect
On a non-wide-gamut monitor, console HDR may still slightly improve highlight handling in some games if the display’s tone mapping is well tuned. For example, a bright skybox might retain more detail than SDR, or an in-game flashlight may appear less clipped. But if the monitor has limited brightness, no local dimming, and ordinary contrast, those gains are usually small.
The biggest limitation is color volume. Wide color gamut expands the range of colors a monitor can display, and gaming-focused guidance commonly treats 90% or more DCI-P3 coverage as useful for modern games and creative content through wide color gamut. Without that extra range, the console can send richer color information than the panel can actually show.

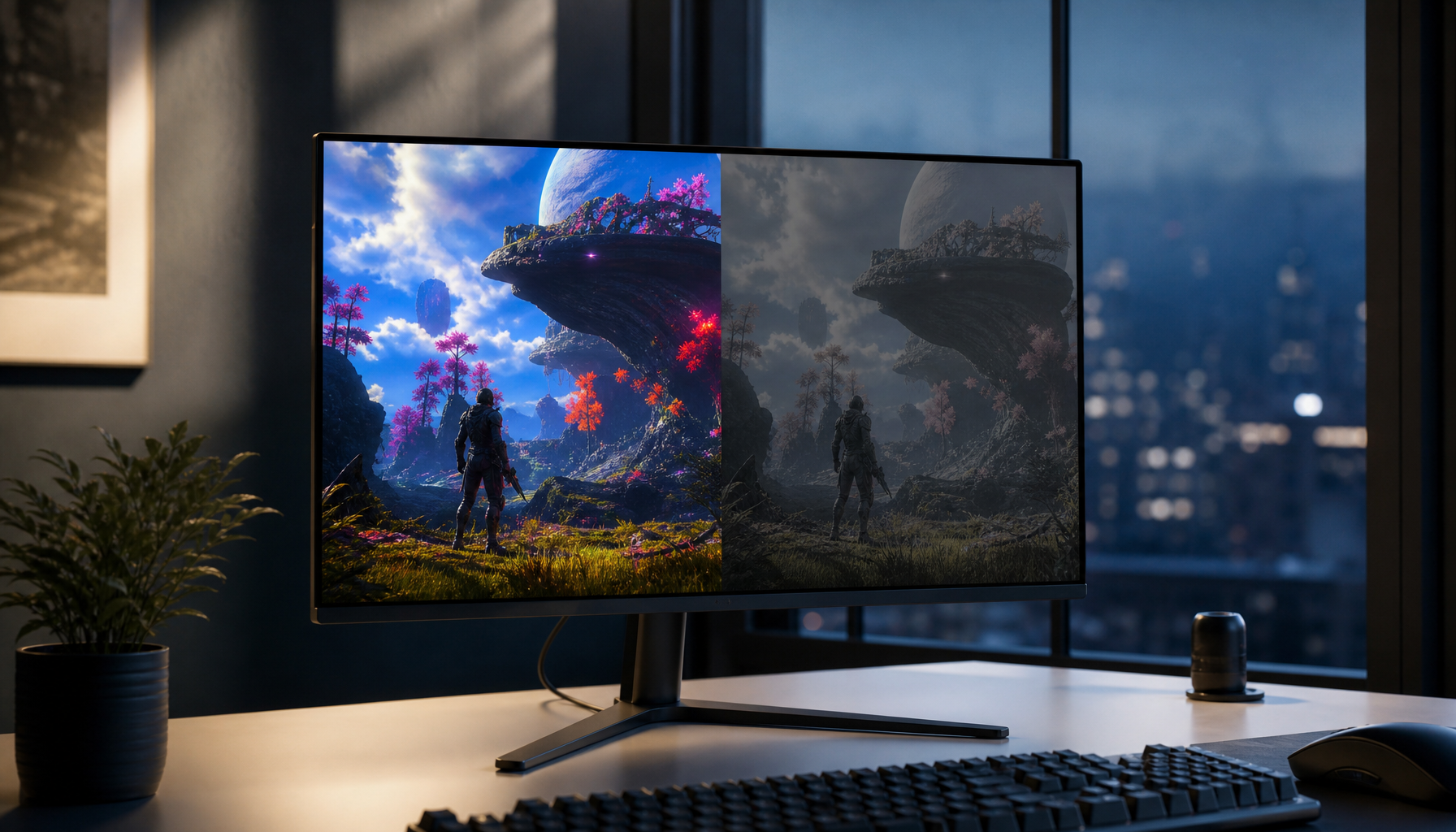

Why HDR May Look Worse Than SDR on a Basic Gaming Monitor
HDR can look worse than SDR when the monitor accepts the HDR signal but lacks the hardware to display it cleanly. Basic HDR monitors may raise overall brightness to chase highlights, which can make blacks look gray and reduce perceived contrast. This is especially noticeable in night scenes, caves, space games, horror titles, and games with bright HUD elements over dark backgrounds.
Raised Blacks and Flat Highlights
SDR is often predictable because the monitor is working within a smaller brightness and color target. HDR uses different tone mapping, so a game mastered for much brighter displays must be compressed onto the monitor you actually own. A 1,000-nit HDR scene displayed on a 400-nit screen has to be squeezed down, and that compression can make highlights look dull or shadows look lifted.
This is why a budget 27-inch gaming monitor with “HDR” in the product title may look less punchy in HDR than in SDR. HDR changes brightness mapping, tone curves, color handling, and display processing, so black levels can shift even on the same screen through HDR black levels. If the monitor’s HDR preset lifts shadow detail too aggressively, dark areas can look washed out.
Tone Mapping Conflicts
Console HDR also depends on tone mapping. The console, the game, and the monitor each may try to map HDR brightness into the display’s limits. If the settings do not line up, highlights can clip, shadows can crush, or the whole image can appear muted.
Practical setup steps matter here. A good starting point is to use the monitor’s most accurate HDR or Game HDR mode, disable extra dynamic contrast or oversaturated color processing, run the console’s HDR calibration screens, then adjust each game’s peak brightness and paper white settings. Poor calibration and tone-mapping conflicts are common reasons console HDR can make games look worse.
Wide Color Gamut Is Important, but It Is Not the Only HDR Spec
Wide color gamut support helps a monitor show more saturated and varied colors, but HDR quality also depends heavily on brightness, contrast, black level, and local dimming. A monitor with good DCI-P3 coverage but weak brightness will not deliver strong HDR highlights. A bright monitor with poor black levels may make explosions pop while turning dark scenes gray.
What the HDR Display Tiers Tell You
A standards organization’s HDR display tiers are useful because they separate vague marketing from measured requirements. An entry-level HDR display tier requires 400 nits peak luminance, 90% DCI-P3 coverage, 1,300:1 static contrast, and a 0.4-nit maximum black level. A higher HDR display tier is much more demanding, requiring 1,000 nits peak luminance, 95% DCI-P3, 30,000:1 contrast, and a 0.05-nit black level.
That gap is why entry-level HDR often feels modest on gaming monitors. A basic certified HDR screen can be HDR10-compatible and still lack the local dimming or black control needed for a dramatic HDR image. For console gaming, HDR starts becoming more convincing when you combine wide color gamut with strong brightness and either OLED pixel-level dimming or Mini-LED local dimming.
Practical Comparison for Console Gaming
Monitor Type or Mode |
What Happens With Console HDR |
Color Impact |
Contrast and Black Levels |
Best Use Case |
SDR mode on a standard monitor |
Console outputs SDR instead of HDR |
Predictable but limited |
Often more consistent than weak HDR |
Competitive gaming, desktop use, budget monitors |
HDR accepted on non-wide-gamut monitor |
Monitor processes HDR10 but cannot show the full color range |
Limited |
May look gray or flat if tone mapping is poor |
Testing HDR, casual use if it looks better to you |
Entry-level HDR gaming monitor |
Basic HDR support, often around 400 nits |
Moderate if it reaches about 90% DCI-P3 |
Limited without local dimming |
Mixed console and PC gaming on a budget |
Wide-gamut HDR600-or-better monitor |
Brighter highlights and richer color |
Stronger |
Better if local dimming is included |
Story games, racing, RPGs, HDR video |
OLED, QD-OLED, or Mini-LED monitor |
Strong HDR hardware with better black control |
Strong |
Usually the most convincing HDR |
Premium console gaming and cinematic games |
For a console player, this table matters more than the word “HDR” on the box. A high-refresh-rate 1080p or 1440p monitor may be excellent for competitive play even if its HDR is weak. A 4K OLED or Mini-LED monitor may be better for single-player HDR games, but it costs more and may not be the best fit if you mostly play shooters at high frame rates. A basic entry-level HDR or HDR-accepting display is also a different comparison point from a higher-tier Mini LED HDR1400 4K monitor such as a Mini LED 27” 4K 160Hz HDR1400 gaming monitor, so compare the underlying HDR hardware rather than the HDR label alone.
How to Tell Whether Your Monitor Is Showing Real HDR or Just Accepting It
The easiest check is visual: compare the same game scene in SDR and HDR. Use a bright area with clouds, sunlight, snow, fire, or neon, then test a dark scene with shadow detail. If HDR only makes the whole image brighter, grayer, or more saturated without preserving highlight detail, the monitor is probably doing basic HDR processing rather than delivering a true HDR experience.
Check the Specs Before the Settings
Look for measured or certified specs, not just product-page labels. Important details include peak brightness, DCI-P3 coverage, contrast ratio, black level, local dimming, HDR certification, HDMI version, supported resolution, supported refresh rate, and VRR compatibility. A monitor labeled “HDR compatible” may simply mean it can accept an HDR signal.
A desktop operating system provides a useful example of how strict HDR capability detection can be. For a display to be treated as HDR10-capable, a software company’s HDR guidance looks for HDR support, BT.2020 color reporting, and EOTF2084 support in monitor capabilities through HDR settings in a desktop operating system. Consoles present this differently, but the underlying idea is the same: the display must support both the signal and the needed display behavior.
Run a Console Calibration Pass
Most console HDR setup screens ask you to raise or lower symbols until they are barely visible. These screens are not magic. They help the console map brightness to your monitor, but they cannot create missing DCI-P3 coverage, add local dimming zones, or turn a 300-nit panel into a 1,000-nit HDR display.
Use calibration as a reality check. If you have to push sliders to extremes, or if the recommended settings make games look washed out, try SDR. In many cases, SDR on a standard IPS gaming monitor looks cleaner than forced HDR, especially for desktop use, menus, older games, and competitive titles where visibility matters more than cinematic highlights.
Console HDR Setup Checklist for Monitors
Use this checklist before deciding that your monitor’s HDR is “bad” or that your console is configured incorrectly.
- Confirm that the monitor supports HDR10 input over the HDMI port you are using.
- Use the HDMI cable that came with the console or a certified high-bandwidth cable suited to your target resolution and refresh rate.
- Set the monitor to its most accurate HDR or Game HDR preset, not a vivid store-demo mode.
- Disable extra dynamic contrast, black equalizer boosts, artificial sharpening, and exaggerated color modes while testing.
- Run the console HDR calibration screens after changing monitor presets.
- Adjust each game’s HDR peak brightness and paper white settings, then compare SDR and HDR in the same scene.
- If HDR looks gray, dim, or less detailed than SDR, leave HDR off for that monitor and use SDR until you upgrade.
For a practical test, load one game with bright outdoor scenes and one game with dark interiors. If HDR improves clouds, lamps, reflections, and fire without washing out shadows, it is worth keeping on. If it mainly lifts black levels or dulls the image, SDR is the better setting for that display.
Buying Guidance: What Console Gamers Should Prioritize
For console gaming, do not buy a monitor for HDR alone unless the HDR hardware is clearly strong. You should evaluate HDR alongside resolution, refresh rate, HDMI bandwidth, VRR support, panel type, input lag, screen size, and desk setup. A good monitor is the one that matches the games you actually play.
Competitive Players
If you mostly play shooters, sports games, fighting games, or fast multiplayer titles, prioritize refresh rate, response time, input lag, VRR, and clean motion. A 24-inch or 27-inch high-refresh-rate monitor with weak HDR can still be the better buy if it gives you stable performance and low latency. In this case, wide color gamut is nice to have, but it should not outrank motion clarity or console-compatible refresh support.
For many players, SDR at 120 Hz feels better than mediocre HDR at a lower refresh rate. If your monitor forces compromises between HDR, resolution, and refresh rate, test both modes instead of assuming HDR should always stay on.
Cinematic and Single-Player Players
If you play RPGs, racing games, adventure games, horror games, or visually rich exclusives, HDR quality deserves more weight. Look for at least strong DCI-P3 coverage, meaningful peak brightness, and real contrast control. OLED, QD-OLED, and Mini-LED monitors tend to deliver the most visible HDR improvement because they can control dark and bright areas more precisely.
Ultrawide monitors require extra caution for consoles. Many consoles are designed around 16:9 output, so an ultrawide monitor may show black bars or stretch options depending on the model. Portable monitors also need careful review because many advertise HDR input support while lacking the brightness, color gamut, or power delivery needed for impressive HDR on the go.
FAQ
Q: Will console HDR work on a monitor without wide color gamut support?
A: It can work if the monitor accepts an HDR10 signal from the console, but the color will be limited by the panel. The console may output HDR, yet the monitor cannot show the broader color range HDR content expects. You may still see some tone-mapping changes, but the image may not look richer than SDR.
Q: Is SDR better than HDR on a budget gaming monitor?
A: Often, yes. If the monitor has limited brightness, no local dimming, weak contrast, or poor HDR tone mapping, SDR can look cleaner and more consistent. This is especially true for dark games, desktop use, and competitive gaming where raised blacks or washed-out midtones can hurt visibility.
Q: What specs matter most for real console HDR?
A: Prioritize HDR10 support, wide color gamut coverage near or above 90% DCI-P3, strong peak brightness, good black levels, and real local dimming or OLED-style pixel control. Also check HDMI bandwidth, target resolution, refresh rate, and VRR support, because a monitor with good HDR but limited console compatibility may still be a poor gaming fit.
Final Takeaway
You can use console HDR on a monitor without wide color gamut support, but you should treat it as compatibility, not proof of quality. The monitor may accept the signal while failing to show the richer colors, brighter highlights, and deeper contrast that make HDR worthwhile.
For a standard gaming monitor, test HDR against SDR in real games before leaving it on. If HDR makes the image gray, dim, or overprocessed, SDR is the right choice. If you are buying specifically for console HDR, look beyond the HDR label and prioritize wide color gamut, meaningful brightness, strong contrast, local dimming or OLED performance, and the HDMI features needed for your preferred resolution and refresh rate.
