Why Your Console Says 120Hz Unsupported & How to Fix It

Your console usually shows “unsupported” because one part of the display chain cannot accept the exact 120Hz signal the game is trying to use. The issue may be the game mode, console video setting, HDMI port, cable, adapter, monitor timing, resolution, or refresh-rate combination.

You enable 120Hz, launch a game that claims to support 120 fps, and the screen still says 60Hz, “Input Not Supported,” or “Mode Not Supported.” In real troubleshooting cases, even setups using a high-refresh monitor or a 4K 120Hz TV failed until the resolution, HDMI path, or performance mode was corrected. This guide breaks down how to identify the weak link and what to check before replacing your gaming monitor.

What “Unsupported” Usually Means on a Console Display

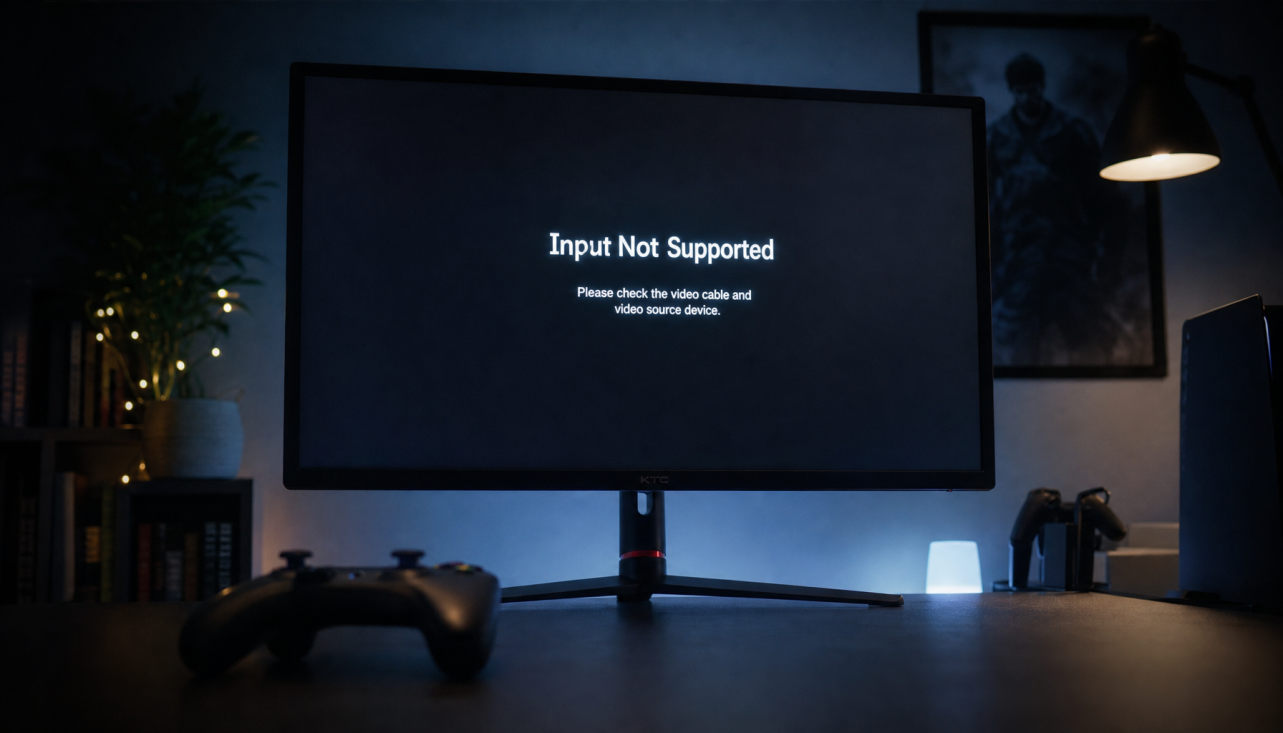

When a monitor or TV says “unsupported,” it is usually rejecting the video signal, not judging the game itself. A display error such as “Input Not Supported” typically means the monitor is receiving a resolution, refresh rate, or video timing it cannot show through the active input path Input Not Supported. That distinction matters because a monitor can advertise 120Hz, 144Hz, 165Hz, or 180Hz and still fail with one specific console signal.

For console gaming, 120Hz is not a single switch. The console must output a compatible 120Hz video mode, the game must offer a 120 fps or high-frame-rate mode, the cable and port must have enough bandwidth, and the monitor must accept that signal over the exact input being used. If any one part of that chain fails, the console may hide the 120Hz option, the game may gray it out, or the monitor may show an unsupported-input message.

A useful way to read the message is this: “unsupported” means “this exact combination is not accepted.” It does not always mean your monitor is bad. A 1080p 120Hz signal may work when 1440p 120Hz does not. A rear HDMI port may work when a front capture-card pass-through does not. A computer may run the monitor at 144Hz over DisplayPort while a console fails at 120Hz over HDMI.

The 120Hz Compatibility Chain: Game, Console, Cable, Port, Monitor

Diagram showing the 120Hz compatibility chain: game, console, HDMI cable, HDMI port, and monitor — any link can block 120Hz output

The Game Must Actually Offer a 120 fps Mode

Many console games do not run at 120 fps all the time. Some only offer 120 fps in multiplayer, performance mode, lower-resolution mode, or with ray tracing disabled. In one discussion around a multiplayer shooter, a user reported a 4K 120Hz TV with HDMI 2.1 and VRR support showing around 119 FPS, but also drops to 50-70 FPS in demanding 128-player scenes Samsung 4K 120Hz TV. That example shows two separate ideas: the display can receive a 120Hz mode, while the game can still render below 120 fps during heavy gameplay.

This is why the in-game video menu matters. On one console platform, a game may need a specific performance preset before 120Hz becomes available. If the game is set to a quality mode, fidelity mode, or graphics-heavy preset, the console may stay at 60Hz even though the system menu says 120Hz is allowed.

The Console Must Be Set to Allow 120Hz

On one console platform, 120Hz is enabled through the system display settings, then activated in supported games. A common recovery path for console display problems is to enter low-resolution mode, reset the video output, then return to the display settings menu and enable 120Hz again in a supported setup enable 120Hz. This matters because a console can remember a display mode that worked on one screen but fails on another.

On another console platform, 120Hz often depends on two settings: 120Hz output and game performance preference. A real console case involving a curved ultrawide gaming monitor shows how frustrating this can be: the user had the console set to 120 fps mode and performance mode, turned HDR off, tried 4K, 1440p, and 1080p, yet the monitor OSD still reported 60Hz MSI Optix MAG342CQR. That kind of case points toward a monitor input, HDMI timing, or console compatibility issue rather than a simple game toggle.

The Monitor Input Must Support 120Hz from a Console

Gaming monitors often have different capabilities on different ports. A monitor may reach 165Hz over DisplayPort from a computer but only support a narrower set of refresh rates over HDMI. Since consoles primarily use HDMI, the HDMI port specification and supported timing table matter more than the highest number printed on the monitor box.

KTC gaming monitor connected to a console via HDMI cable on a gaming desk setup

This is especially important for ultrawide and high-resolution monitors. A documented high-resolution case found that a 3440x1440 display was limited to 2560x1440 at 60Hz because the connection path likely involved HDMI 1.4 bandwidth limits 3440x1440 display. For console buyers, that means a monitor’s computer refresh-rate spec is not enough; you need to confirm console-friendly HDMI modes such as 1920x1080 at 120Hz, 2560x1440 at 120Hz, or 3840x2160 at 120Hz where supported.

Why 120Hz Works in Some Games but Not Others

A console can output 120Hz only when the game, system, and display agree on the mode. If one game works at 120Hz and another does not, the display chain is probably capable, but the second game may not support 120 fps on your console, may require a performance preset, or may disable 120Hz when certain visual features are turned on.

Game engines also separate display refresh rate from rendered frame rate. Developers often care more about actual rendered FPS than the monitor’s refresh rate because FPS varies with graphics settings, hardware, and driver behavior actual rendered FPS. A game can run on a 120Hz display while rendering at 60 fps, 90 fps, or a fluctuating frame rate, depending on the workload.

This is where VRR, VSync, and frame pacing enter the picture. In a computer-focused discussion, users noted that a 60 fps cap on a 120Hz display can be smooth because each game frame is shown twice, while a 60 fps cap on 144Hz can produce uneven frame display timing unless managed carefully each frame twice. On consoles, you usually cannot tune this as deeply as on a computer, but the idea helps explain why 120Hz output does not always mean a locked 120 fps experience.

Common Causes and What They Look Like

The fastest diagnosis is to match the symptom to the likely weak point. If the console menu says 120Hz is unavailable, start with system settings, HDMI input, cable, and monitor compatibility. If the console allows 120Hz but the game stays at 60Hz, start with the game’s performance mode and supported-platform list. If the screen goes black or says “Input Not Supported,” recover at 60Hz before trying higher modes again.

Symptom	Most Likely Cause	What to Try First	Monitor Buying Lesson
Console says 120Hz is unavailable	HDMI port, cable, or monitor timing does not support that mode	Try 1920x1080 at 120Hz, use the main HDMI port, remove adapters	Check HDMI 2.1 or confirmed HDMI 120Hz support, not just DisplayPort specs
Game menu shows 120 fps option as disabled	Game requires performance mode or does not support 120 fps on that console	Enable performance mode, disable graphics-heavy settings, restart the game	Look for monitor compatibility with your console, not only the monitor’s refresh rate in computer use
Monitor says “Input Not Supported”	Resolution-refresh combination is outside supported range	Return to 1920x1080 at 60Hz, then step up to 120Hz	Prefer displays with clear timing support lists
Monitor OSD still shows 60Hz	Console is outputting 60Hz, or game has not entered 120Hz mode	Check console video details and in-game settings	OSD refresh-rate readout is useful for troubleshooting
120Hz works but gameplay feels uneven	Game is not holding 120 fps, or frame pacing varies	Enable VRR if supported; try performance mode	VRR support helps with frame-rate dips

A surprisingly common cause is an adapter, splitter, capture card, or USB-C hub in the middle. High-refresh signals are bandwidth-sensitive, and a monitor may support a mode on paper while the cable, adapter, GPU output, or console output path does not support the required bandwidth required bandwidth. For console troubleshooting, remove everything between the console and display before drawing conclusions.

Another cause is a nearly compatible timing. Some high-refresh setups have worked at 119.88Hz while failing at exactly 120Hz or higher, depending on the operating system, cable, or connection path 119.88Hz. Consoles do not always expose fine-grained timing controls, so choosing a safer resolution such as 1080p 120Hz can be the practical workaround.

A Practical 120Hz Troubleshooting Checklist

Gamer checking console display settings to troubleshoot 120Hz not working on their monitor

Before buying a new monitor or returning the one you have, reset the setup to a known-good baseline. The safest recovery mode is usually the monitor’s native resolution at 60Hz, or 1920x1080 at 60Hz if you are not sure what the native mode is 1920x1080 at 60Hz. Once the picture is stable, raise the refresh rate in controlled steps instead of changing resolution, HDR, VRR, and refresh rate all at once.

Use this checklist in order:

Set the console to 1920x1080 at 60Hz and confirm the monitor shows a stable image.
Connect the console directly to the monitor or TV with no splitter, capture card, adapter, or receiver.
Use the display’s HDMI port that is rated for the highest refresh mode.
Enable 120Hz output in the console settings.
Enable the game’s performance or 120 fps mode, then restart the game if required.
If 1440p or 4K fails, test 1080p at 120Hz before assuming the monitor cannot do 120Hz.
Turn on VRR only after basic 120Hz output works, then compare the monitor OSD or console video-details screen.

When I troubleshoot console-to-monitor problems, I avoid changing more than one variable at a time. For example, if a console shows 60Hz on a gaming monitor, I test 1080p 120Hz with HDR off and no adapter first. If that works, I move to 1440p 120Hz. If that fails, the issue is likely the monitor’s HDMI timing support or bandwidth limit, not the game.

What to Look for When Buying a Monitor for Console 120Hz

Consumer reading gaming monitor spec label to check HDMI 120Hz support before buying for console gaming

Do not buy a gaming monitor for console use based only on the maximum refresh rate. A “180Hz” monitor may reach that number from a computer over DisplayPort but still have limited HDMI modes. For console gaming, the useful specs are the supported HDMI resolutions and refresh rates, VRR compatibility, HDR behavior, and whether the monitor’s OSD clearly reports the active refresh rate.

For a budget or competitive setup, 1920x1080 at 120Hz is the least demanding target and usually the easiest to stabilize. For sharper gameplay, 2560x1440 at 120Hz is a strong match for many gaming monitors, but you should confirm console support because not every HDMI implementation handles 1440p 120Hz cleanly. For 4K at 120Hz, prioritize HDMI 2.1 ports, a certified high-speed cable, and documented console compatibility.

Ultrawide monitors need extra care. Consoles generally target 16:9 output, while many ultrawide monitors are 21:9. Even if an ultrawide panel is excellent for computer gaming, a console may output with black bars, fall back to 60Hz, or reject certain resolutions. If your main use is console gaming, a 16:9 monitor with confirmed 1080p, 1440p, or 4K 120Hz HDMI support is usually the cleaner choice.

FAQ

Q: Why does my console say 120Hz is unsupported when my monitor is advertised as 144Hz or 165Hz?

A: The advertised refresh rate may apply only to DisplayPort or to computer-specific timings. Consoles use HDMI, so the monitor must support the console’s exact HDMI resolution and refresh-rate mode. Try 1920x1080 at 120Hz directly over HDMI before testing higher resolutions.

Q: Can a game run at 120Hz but still not reach 120 fps?

A: Yes. The display can refresh at 120Hz while the game renders below 120 fps during demanding scenes. The multiplayer-shooter example with a 4K 120Hz TV showed a VRR readout near 119 FPS in some play but drops to 50-70 FPS in heavy 128-player scenes VRR readout.

Q: Should I use VRR, VSync, or a frame cap for console 120Hz gaming?

A: On console, start by getting the basic 120Hz signal working first. Then enable VRR if both the console and monitor support it, because VRR can smooth dips below the refresh ceiling. VSync and frame caps are more adjustable on computer, but the same principle applies: stable frame pacing often feels better than chasing a peak number.

Key Takeaways

A console shows “unsupported” when the full signal path cannot handle the selected 120Hz mode. The monitor panel may be fast enough, but the active HDMI port, cable, adapter, console setting, game mode, resolution, HDR setting, or VRR behavior can still block the signal.

Start with 1920x1080 at 60Hz, remove every adapter or pass-through device, then test 120Hz at 1080p before moving to 1440p or 4K. If you are shopping for a new gaming monitor, look for confirmed HDMI 120Hz support at the resolution you actually plan to use, not just the highest refresh rate listed for computer gaming.
