Yes, you can use in-game or desktop patterns to set practical brightness, black level, and contrast on a gaming monitor, but they are not a full substitute for hardware calibration.
Ever load a dark game and find that caves look like black soup, while the desktop looks fine? A 10-minute pass with black-level, white-level, and grayscale patterns can often restore shadow and highlight detail without buying a new display. This guide explains what patterns can fix, where they fall short, and how to use them without making your monitor look worse.
What “Brightness Calibration” Really Means on a Gaming Monitor
For most gaming monitors, “brightness calibration” is really two related jobs: setting the panel’s overall light output for your room and setting black level so near-black detail is visible without turning blacks gray. A basic visual setup should preserve dark-gray boxes on a black pattern and bright-gray steps on a white pattern, because brightness controls black level while contrast controls highlight detail.
That matters on high-refresh-rate and ultrawide displays because motion clarity does not help much if the image is crushed. A 27-inch 240 Hz monitor can feel responsive, but if the darkest shades disappear, enemies in shadow, night scenes, and UI borders become harder to read. The goal is not to make every dark scene bright; it is to keep the first few near-black steps barely visible in the lighting where you actually play.
Visual Setup vs. True Calibration
Desktop and in-game patterns are good for visibility tuning. They let you answer practical questions: Can I see shadow detail? Are white clouds or snow areas clipping? Does the grayscale ramp have a color tint?
True calibration goes further. It measures the display against a reference target, often with a colorimeter, then creates or adjusts a profile. A common balanced target for monitor work is D65 white point, 2.2 gamma, and about 120 cd/m² luminance, but visual patterns alone cannot confirm that measured luminance or color accuracy.
In-Game Patterns vs. Desktop Patterns: Which Should You Use?
In-game brightness screens are useful because they show how that specific game maps dark and bright detail. If a game asks you to make a logo “barely visible,” it is usually tuning the game’s own black point, tone curve, or HDR mapping rather than fully calibrating your monitor. That is why the same monitor can look correct in one game and too dark in another.
Desktop patterns are better for your baseline monitor setup. Free test patterns can be used for brightness and contrast, while operating system tools can help with gamma and basic grayscale balance. Once the monitor is set correctly at the desktop level, in-game sliders should be used as the final adjustment for each title.
Option |
Best For |
What It Can Fix |
What It Cannot Prove |
In-game brightness pattern |
Per-game visibility |
Game black level, HDR midpoint, scene visibility |
Accurate monitor luminance or color |
Desktop black/white patterns |
Baseline SDR setup |
Shadow detail, highlight clipping, grayscale range |
Exact cd/m² brightness or color accuracy |
Monitor OSD controls |
Panel-level adjustment |
Brightness, contrast, color temperature, gamma preset |
ICC profiling by itself |
OS calibration tool |
Basic desktop correction |
Gamma, grayscale tint, visual balance |
Hardware-level panel accuracy |
Colorimeter |
Color-critical setup |
Measured brightness, white point, gamma, ICC profile |
Game-specific artistic intent |
A Practical Order That Works
Start with desktop patterns, then move to the monitor’s on-screen display, then finish inside the game. That order avoids using a game slider to compensate for a bad monitor baseline.
Before adjusting anything, take a photo of your current monitor settings. Then warm up the display for about 30 minutes, use the same room lighting you normally use, and disable dynamic contrast, Eco Mode, auto brightness, black enhancers, HDR simulation, eye-care modes, and aggressive game presets. These features can shift the image while you are trying to judge it.
How to Set Brightness, Black Level, and Contrast with Patterns
Use a black-level pattern first. Lower the monitor brightness until the darkest gray boxes disappear, then raise it until the first near-black detail is barely visible. This approach follows the core idea that the darkest useful detail should be visible but not lifted into a washed-out gray background.
Next, use a white-level or grayscale ramp. Increase contrast until the brightest shades start to merge, then lower it until near-white steps are distinct again. Because brightness and contrast affect each other, recheck the black pattern after changing contrast, then recheck the white pattern after changing brightness.
Step-by-Step SDR Setup
- Warm up the monitor for about 30 minutes.
- Set the picture mode to Standard, User, Custom, or sRGB if that mode is not locked too dim.
- Disable automatic and dynamic image features.
- Set color temperature to 6500K, D65, or sRGB if available.
- Use a black-level pattern and make the darkest visible box barely visible.
- Use a white-level pattern and keep near-white boxes separate.
- Set gamma to 2.2 for most PC gaming and desktop use.

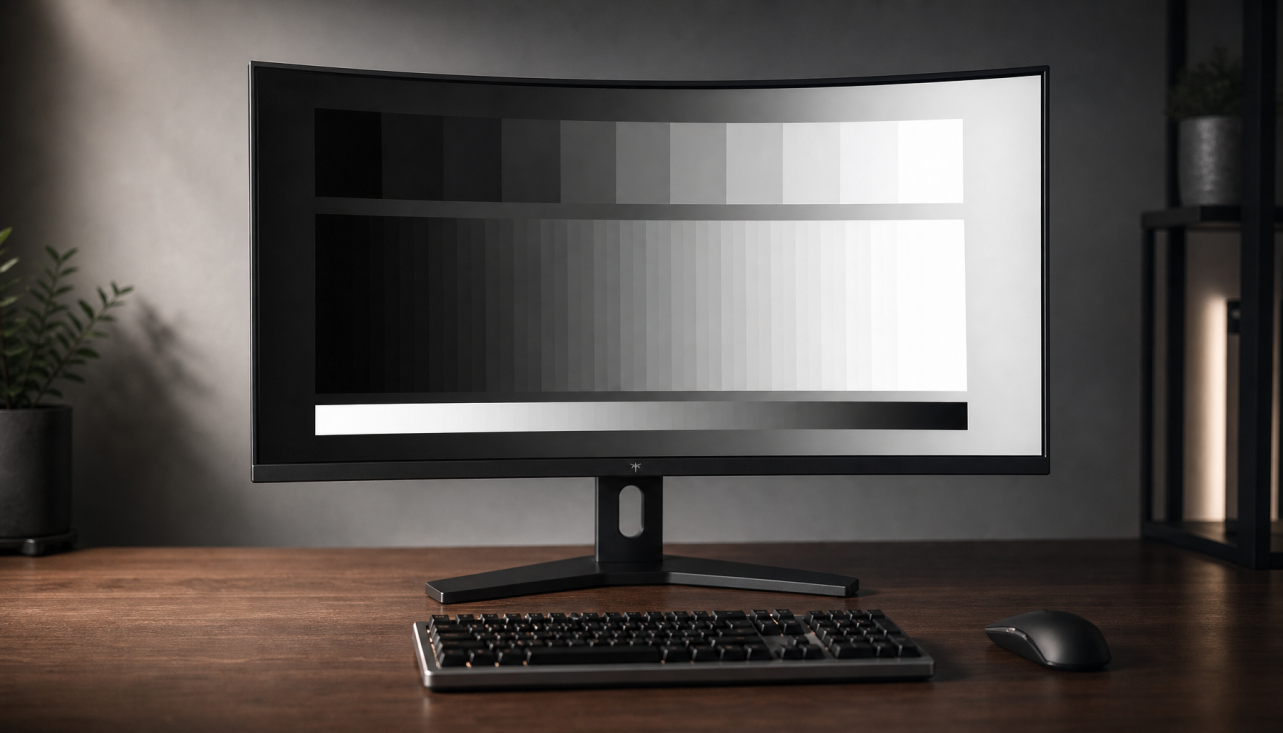

- Check a 10-step grayscale wedge; all steps should be separate.
- Save the result to a custom monitor profile such as User 1 or Custom.
A pattern page with black, gray, white, gamma, and color checks can help you verify the result. A proper step wedge should show 10 separate shades from white to black, and the grayscale boxes should not lean obviously red, green, or blue.
Why Room Lighting Changes the Right Brightness Setting
Monitor brightness is not judged in a vacuum. A screen that looks rich at night may look too dim in a sunlit apartment, while a bright setting that works at noon may feel harsh at 11:00 PM. Ambient light changes how your eyes perceive black level, contrast, and color.
That is why calibration should be done in the same lighting where the display is normally used. If you use a portable monitor in different rooms, or an ultrawide monitor near a window, one saved setting may not be enough. Many gaming monitors let you save separate profiles, so a practical setup might be “Day SDR,” “Night SDR,” and “HDR Game.”
Avoid the Most Common Overcorrections
Do not raise brightness just because a game is dark. First check whether black-level detail is actually missing. If near-black boxes are already visible on a desktop pattern, the issue may be the game’s artistic lighting, HDR tone mapping, or in-game gamma slider.
Do not push contrast to maximum either. On many monitors, high contrast makes bright-gray steps clip into flat white patches. That can hide clouds, snow texture, bright HUD details, and specular highlights.
HDR Games Need a Separate Pass
HDR changes the workflow because the game, operating system, GPU, and monitor may all participate in tone mapping. An SDR desktop pattern is still useful for baseline setup, but it does not tell you whether a game’s HDR peak brightness and paper-white settings are correct.
For HDR, use the game’s own HDR calibration screen after the monitor is in its HDR mode. Set the black point so dark symbols are barely visible, then set peak brightness so the bright symbol disappears or blends at the point the game requests. If your monitor has limited HDR hardware, such as edge-lit local dimming or low peak brightness, avoid chasing extreme highlights; prioritize stable shadow detail and readable midtones.
When Patterns Are Good Enough, and When You Need a Colorimeter
Visual patterns are good enough for most gaming setups when your goal is better visibility, cleaner grayscale, and fewer crushed shadows. They are especially useful after buying a new gaming monitor, switching GPU settings, resetting the OSD, or moving the display to a brighter room.
A colorimeter becomes worth it when you need measured consistency. That includes photo editing, video grading, design work, soft-proofing, matching multiple monitors, or using a wide-gamut display where colors look oversaturated in normal desktop apps. Calibration patterns can show that two displays differ, but each screen interprets the same pattern through its own hardware, color profile, gamma curve, and software pipeline.
A Simple Decision Rule
Use patterns if you mainly play games, browse, watch videos, and want the image to stop looking too dark or washed out. Use a colorimeter if you need repeatable, measurable accuracy or if you are trying to match a laptop, ultrawide monitor, and external display side by side.
For most gamers, the best upgrade is not a meter; it is disciplined setup. Warm up the panel, disable dynamic modes, set black and white levels, use 2.2 gamma, and save the profile. Recheck every 1 to 3 months, especially if you use different lighting or swap between SDR and HDR often.
FAQ
Q: Can an in-game brightness screen calibrate my whole monitor?
A: No. It can tune that game’s visibility, but it does not fully calibrate monitor luminance, gamma, white point, or color accuracy.
Q: Should I set monitor brightness to 100% for gaming?
A: Usually no. Set brightness based on room lighting and black-level patterns. If the first near-black steps are visible and blacks do not look gray, the setting is closer to correct.
Q: Is gamma 2.2 always the right choice?
A: It is the standard starting point for most computer displays and PC games, but some games, HDR modes, and room conditions may need separate in-game adjustment.
Practical Next Steps
Set your monitor baseline with desktop black-level, white-level, and grayscale patterns first. Then adjust each game only after the monitor itself preserves shadow and highlight detail. For a typical gaming monitor, this gets you most of the practical benefit without hardware tools; for color-critical work or matched multi-monitor setups, use a colorimeter.
