For most 2026 single-cable workstation users, the choice between Thunderbolt 5 and DisplayPort 2.1 depends on your primary platform and resolution needs. Mac users with M4 Pro or M4 Max chips should choose Thunderbolt 5 for its native integration of high-bandwidth video, fast data, and power delivery in one cable. PC users with next-generation GPUs should prefer DisplayPort 2.1 for direct, uncompressed display performance without the added cost of Thunderbolt certification. Thunderbolt 5 uses an asymmetric Bandwidth Boost that reaches up to 120 Gbps outbound for video while keeping 40 Gbps inbound, whereas DisplayPort 2.1's top tier (UHBR20) delivers a steady 80 Gbps of pure display bandwidth.
This decision matters because a single cable must now handle not only the monitor signal but also laptop charging and peripheral data. Picking the wrong standard can force you into extra adapters, reduced refresh rates, or separate power bricks, defeating the purpose of a clean desk.
Quick Decision Framework: TB5 vs. DP 2.1
Start by identifying your laptop. If you own or plan to buy a Mac with M4 Pro or M4 Max, Thunderbolt 5 is the native path that minimizes adapters and maximizes unified performance across video, data, and power. PC users pairing a recent RTX-series GPU with a gaming or productivity monitor will generally get better value and direct performance from DisplayPort 2.1.
Thunderbolt 5 shines in integrated docking scenarios where one cable carries everything. DisplayPort 2.1 focuses on raw display bandwidth, making it the preferred choice for high-refresh-rate single-monitor gaming setups. Check your monitor's port first: most 2026 high-end models support one or both, but the cable and host device ultimately dictate what bandwidth you actually receive.
Thunderbolt 5 Bandwidth Explained: The 120Gbps Boost
Thunderbolt 5 introduces a Bandwidth Boost mode that reconfigures its lanes asymmetrically to deliver up to 120 Gbps outbound for video-intensive tasks while maintaining 40 Gbps inbound. This official technical brief details how the standard achieves this by prioritizing display traffic in demanding workloads.
This boost becomes valuable for uncompressed 8K video or multi-monitor arrays that exceed 80 Gbps. In practice, the extra headroom reduces reliance on Display Stream Compression (DSC), which some color-critical users (such as those in medical imaging or professional video grading) prefer to avoid. However, the 120 Gbps figure applies only to the outbound direction during boost; everyday bidirectional use remains closer to 80 Gbps.
For single-cable monitor setups in 2026, this means Thunderbolt 5 can simultaneously drive a high-resolution display and deliver full-speed external storage or even an external GPU without the bandwidth trade-offs common in earlier standards.
DisplayPort 2.1: Pure 80Gbps Display Power
DisplayPort 2.1's highest tier, known as UHBR20, supplies a total raw bandwidth of 80 Gbps dedicated to display data. This makes it the standard target for next-generation PC GPUs and gaming monitors that prioritize uncompressed high-refresh output. VESA's official updates also introduced active cable specifications (DP80LL) that support reliable 80 Gbps runs up to three meters.
In real use, a single DP 2.1 cable can comfortably handle a 4K display at 240 Hz or an 8K display at 60 Hz when DSC is acceptable. The standard excels in direct GPU-to-monitor connections where latency and color accuracy matter most. Unlike Thunderbolt, it does not bundle significant PCIe data or high-wattage power delivery, so users often need additional cables for charging or peripherals.
The 80Gbps Ceiling: When is 120Gbps Mandatory?
DisplayPort 2.1 performs well for most single 4K or 5K/6K workloads and even dual 4K at high refresh rates. The 80 Gbps limit becomes noticeable with uncompressed 8K at 60 Hz using 10-bit color or when driving three or more high-refresh 4K displays simultaneously. In those cases, Thunderbolt 5's Bandwidth Boost provides necessary overhead.
If your workflow cannot tolerate DSC artifacts—common in medical imaging, high-end color grading, or precise scientific visualization—Thunderbolt 5 is the clearer 2026 choice. For typical office or gaming use, however, DP 2.1's 80 Gbps class is sufficient and often less expensive to implement. The chart below visualizes these thresholds across common 2026 scenarios.
Mac vs. PC Compatibility: Ecosystem Dictates Choice
Apple's M4 Pro and M4 Max chips bring native Thunderbolt 5 support, allowing a single cable to drive high-resolution displays while simultaneously transferring data at PCIe Gen 4 speeds. This creates a true one-cable experience for Mac users who also need fast external storage or multiple peripherals. Intel's introduction of the standard and Apple's implementation confirm this ecosystem advantage.
On the PC side, RTX 50-series GPUs emphasize DisplayPort 2.1 for direct, low-latency output to gaming monitors. PC users gain broader monitor availability and avoid the higher cost of Thunderbolt-certified displays. However, connecting a DP 2.1 monitor to a Thunderbolt 5 Mac often requires a specific bidirectional USB-C to DisplayPort cable; otherwise the link may fall back to older DP 1.4 speeds and limit refresh rates.
Mac users needing multiple 6K displays will rely on Thunderbolt 5 or USB4 Version 2 hubs for daisy-chaining. PC users can often use DisplayPort 2.1 Multi-Stream Transport (MST) directly from the GPU. The platform you already own therefore sets the practical winner.

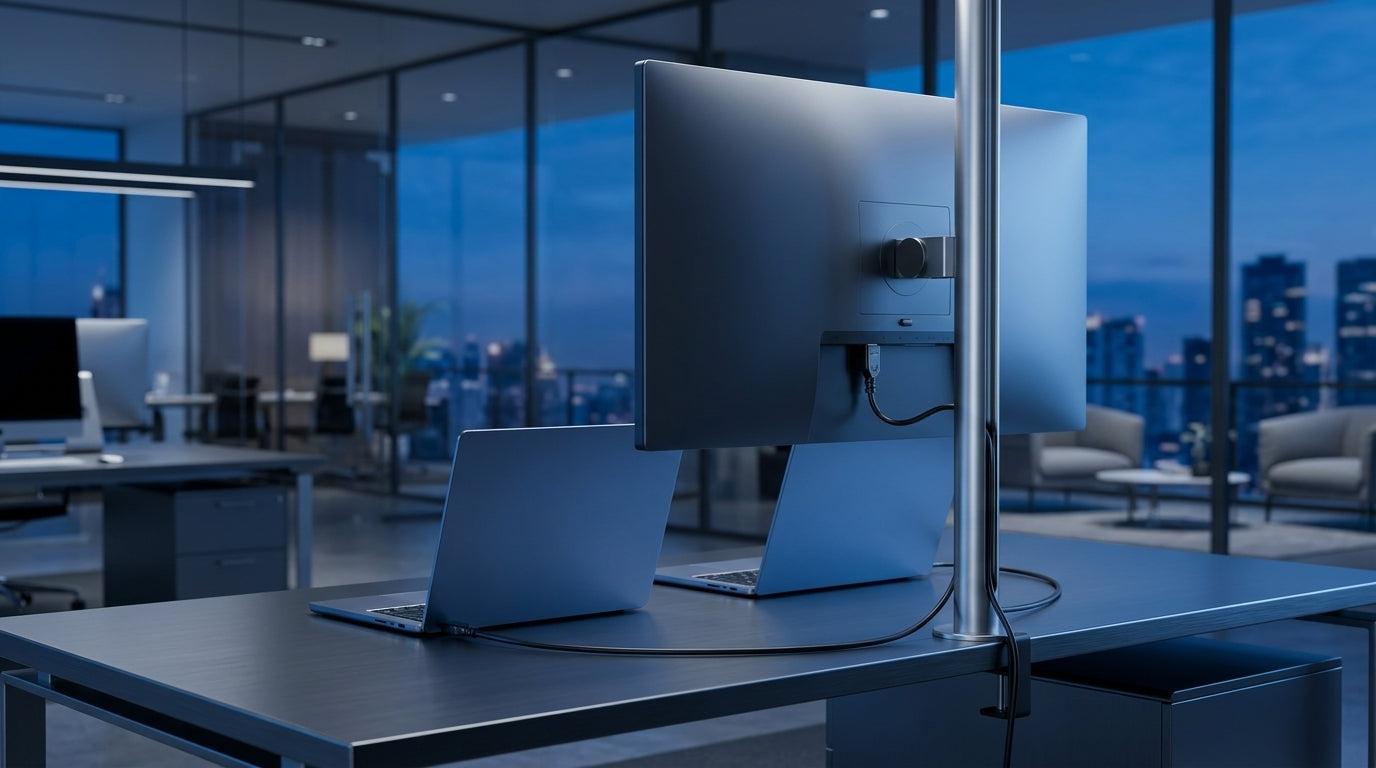

Power and Peripherals: Achieving the True Single-Cable Desk
Thunderbolt 5 supports up to 240 W of Power Delivery, making it possible to charge even high-performance laptops through the same cable that carries the display signal. Kensington's overview notes that this Extended Power Range (EPR) capability removes the need for a separate power brick in many 2026 setups. The standard also doubles PCIe bandwidth to 64 Gbps compared with Thunderbolt 4, which benefits external GPUs, ultra-fast NVMe storage, and other high-throughput peripherals.
DisplayPort 2.1, by contrast, focuses almost entirely on display traffic. Most implementations still require separate USB-C or proprietary cables for high-wattage charging and full-speed data, reducing the single-cable benefit. For a genuine dock-free desk with one cable handling video, 140 W or higher laptop charging, and multiple USB peripherals, Thunderbolt 5 currently offers the cleaner path—provided your monitor and laptop both implement the full specification.
Our USB-C monitor guide explains how these combined signals work in practice, while the DisplayPort Alternate Mode explainer covers lane-sharing details that affect both standards.
When shopping, look for monitors that explicitly list Thunderbolt 5 or full 80 Gbps DP 2.1 support. Our Premium Display Signal Cables collection includes certified options that maintain these speeds over practical desk lengths.
For users prioritizing sharp text and accurate color in a single-cable office setup, the KTC 27" 5K Office Monitor (H27P3) pairs well with Thunderbolt 5 Macs, delivering 5120×2880 resolution at 60 Hz plus USB-C power delivery. PC gamers seeking high refresh rates may prefer models like the KTC 27" 4K 160Hz Dual-Mode Gaming Monitor (H27P6), which supports DisplayPort 2.1-class performance through its DP 1.4 port with DSC.
Making Your 2026 Single-Cable Decision
Choose Thunderbolt 5 if you work in the Mac ecosystem, need uncompressed 8K or dual 6K output, or want the simplest dock-free desk with high-wattage charging and fast external storage. Choose DisplayPort 2.1 if you are a PC user who values direct GPU performance, high refresh rates on a single monitor, and lower overall accessory cost.
The deciding factors remain your primary laptop, target resolution and refresh rate, and tolerance for extra cables. Test the actual cable and monitor combination before committing to a large purchase—bandwidth can vary with specific hardware implementations. For most hybrid workers and creators building a clean 2026 workstation, matching the interface to your dominant platform avoids the most common sources of regret.
Our ergonomic monitor buying guide can help you complete the physical setup once the connectivity question is settled, while the gaming monitor selection guide offers deeper refresh-rate and panel advice for PC-focused users.
FAQs
Is Thunderbolt 5 backward compatible with DisplayPort 2.1 monitors?
Yes, but you will usually need a certified bidirectional USB-C to DisplayPort 2.1 cable. Without it, the connection may fall back to DP 1.4 speeds (roughly 32 Gbps), limiting refresh rates or color depth on high-resolution panels. Always verify the cable's stated bandwidth rating.
Can a single DisplayPort 2.1 cable support 8K at 60 Hz without compression?
No. The 80 Gbps ceiling typically requires Display Stream Compression for 8K 60 Hz 10-bit color. If your work cannot accept any compression artifacts, Thunderbolt 5's 120 Gbps boost mode is the safer 2026 option.
Does Thunderbolt 5 always deliver 240 W charging?
Thunderbolt 5 specifies support for up to 240 W, but actual delivery depends on the laptop, dock, and monitor implementation. Many 2026 devices will provide 140 W or 180 W in practice; confirm the exact wattage listed for your specific hardware combination.
Which is better for a Mac user needing multiple high-resolution displays?
Thunderbolt 5 is generally better. It enables daisy-chaining through certified hubs and maintains higher sustained bandwidth for dual 6K or mixed-resolution setups. PC users can often achieve similar results with DisplayPort 2.1 MST directly from the GPU.
Do I need Thunderbolt 5 if I only use one 4K monitor?
Probably not. A single 4K display at 144 Hz or 240 Hz fits comfortably within DisplayPort 2.1's 80 Gbps, and most PC monitors in this category are optimized for that standard. Thunderbolt 5 becomes more relevant when you add fast data transfers or multiple displays.
How do cable length and quality affect real-world performance?
Longer runs (beyond 1.5–2 meters) can reduce effective bandwidth unless you use active cables. For DisplayPort 2.1, certified DP80LL active cables maintain 80 Gbps up to three meters. Thunderbolt 5 cables are more expensive but generally more robust for mixed video-and-data use.
Should I buy a monitor that supports both standards?
If your budget allows, a monitor with both Thunderbolt 5 and full-bandwidth DisplayPort 2.1 ports offers future-proof flexibility. In 2026, such models are still premium-priced; otherwise match the monitor to your primary laptop to avoid unnecessary adapters.
