Why Monitor Bit Depth Causes Banding in Dark Scenes

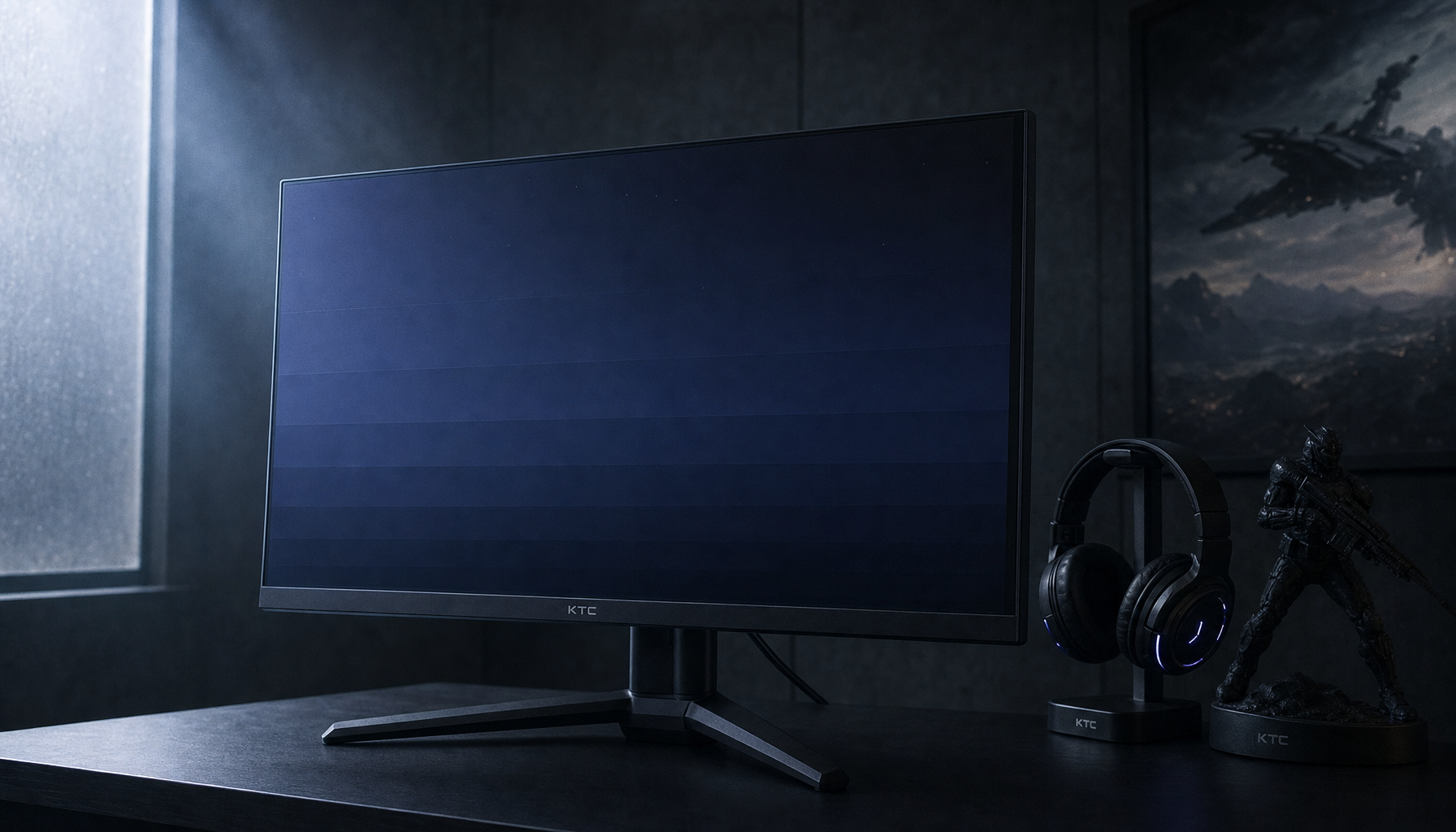

Dark gradient banding happens when a monitor, signal path, or source file does not preserve enough tonal steps between near-black shades, so smooth shadows break into visible stripes.

Have you noticed rings in a dark game sky, blocky steps in a gray loading screen, or stripes through fog that should look smooth? A practical troubleshooting pass can sometimes isolate the issue in minutes; one documented HDR case improved after lowering a 144 Hz output mode to 120 Hz, showing that the panel is not always the only culprit. This guide explains why dark scenes expose display limits and how to choose and configure a gaming monitor, ultrawide monitor, or portable display for cleaner gradients.

Why Dark Gradients Reveal Bit Depth Limits First

Panel bit depth describes how many tone values a display can show for each red, green, and blue channel. An 8-bit display has 256 levels per channel, while a 10-bit display has 1,024 levels per channel, so the same black-to-gray transition can be divided into far more steps on a higher-bit-depth display 8-bit display. When there are not enough steps, a smooth gradient becomes a staircase: each visible band is one tonal value holding for too many pixels.

Dark scenes are less forgiving than bright desktop windows because the eye notices small changes near black. A shadow ramp, cave wall, smoky hallway, or dark gray menu may only use a narrow slice of the available tonal range, so each missing or compressed level becomes easier to see. A display testing guide’s bit-depth notes frame the first 20% of brightness as roughly the 0-51 range, where quantization errors can have an outsized visual impact shadow detail.

Close-up of an eye perceiving dark gradient banding on a monitor, illustrating how human vision detects tonal differences near black

The Pixel-Level Problem

A simple gradient can expose the issue even on a normal desktop. In a 1,920-pixel-wide gradient with only 256 shade values available, each shade may occupy about 7.5 pixels on average, which can make a clean ramp look visibly striped 1,920-pixel-wide gradient. On a dark loading screen, that same effect can look like broad gray ribbons rather than a subtle fade.

This is why banding often appears in skies, fog, smoke, shadows, sunsets, blurred game backgrounds, and flat UI panels. Those scenes contain broad low-contrast transitions, not sharp detail that can hide stepping. If you mainly play competitive SDR games with bright maps and high motion, you may rarely notice it; if you play cinematic HDR games, horror titles, space games, or story-driven games with heavy atmosphere, you probably will.

What 6-Bit, 8-Bit, 8-Bit + FRC, and 10-Bit Mean in Practice

Not every “1.07 billion colors” monitor behaves the same way. Some panels are native 10-bit, some are 8-bit plus Frame Rate Control, and lower-cost or portable panels may use 6-bit plus dithering to approximate higher output. The headline number matters, but the implementation and signal chain matter just as much.

A true 6-bit panel has 64 levels per channel and about 262,144 total colors, while a true 8-bit panel has about 16.7 million colors true 6-bit panel. A 10-bit panel supports about 1.07 billion RGB combinations, giving gradients much finer spacing between adjacent tones. That difference is most obvious in HDR games, dark video scenes, photo editing, and color-sensitive work.

Diagram comparing 6-bit, 8-bit, and 10-bit gradient rendering, showing how higher bit depth reduces visible banding steps

Comparison of Common Monitor Bit-Depth Options

Display Type	Tone Levels per RGB Channel	Approximate Color Count	Dark Gradient Behavior	Best Fit
6-bit	64	262,144	Banding can be obvious, especially in shadows and large flat gradients	Budget portable monitors, basic office use
6-bit + dithering	Simulated above 64	Varies by implementation	Can reduce obvious steps, but may show noise or shimmer	Low-cost compact displays where color precision is secondary
8-bit	256	16.7 million	Usually fine for SDR, but dark HDR-like ramps can still band	Mainstream gaming monitors, office monitors, SDR gaming
8-bit + FRC	Simulates intermediate tones	Often marketed near 1.07 billion	Smoother than basic 8-bit when well implemented, but not identical to native 10-bit	Midrange HDR gaming monitors, high-refresh displays
Native 10-bit	1,024	1.07 billion	Best tonal spacing for dark gradients and HDR workflows	Premium HDR monitors, content creation, visually sensitive users

Frame Rate Control, or FRC, rapidly alternates neighboring shades to create the perception of intermediate tones. A well-implemented 8-bit + FRC monitor can look smooth in many games and is often a practical value choice, but it does not increase the panel’s native precision 8-bit + FRC. In large dark gradients or at lower refresh rates, some users may notice fine noise, flicker, or shimmer instead of clean smoothness.

Why Native 10-Bit Is Not a Magic Fix

A native 10-bit panel gives the display more tonal precision, but banding can still appear if the content or rendering path is limited. A browser-rendered dark gradient, for example, can show visible banding from an 8-bit-per-channel output even on a high-end 10-bit or 12-bit display because the software path may not send higher-bit-depth data browser-rendered example. In other words, a better panel cannot fully repair a low-precision source.

This distinction matters when shopping. If you play mostly SDR games, stream compressed video, and browse the web, a well-tuned 8-bit or 8-bit + FRC monitor may be enough. If you play HDR-heavy games, edit video, grade photos, or dislike dithering artifacts, native 10-bit support becomes more valuable.

Why HDR and High Refresh Rates Can Make Banding Worse

HDR expands brightness and color expectations, so it can reveal weak tone handling faster than SDR. Dark gray menus, near-black loading screens, fog, smoke, skies, skin tones, and sunset scenes can all show banding when the HDR pipeline loses tonal steps HDR banding. A monitor may accept an HDR signal, but if its panel processing, backlight behavior, tone mapping, or bit-depth path is weak, dark gradients can still break apart.

High refresh rates add another variable because bandwidth is finite. A gaming monitor running at 144 Hz, 165 Hz, 240 Hz, or higher may require compromises depending on resolution, cable, port version, GPU, and color format. Some modes can force lower bit depth, limited range, or chroma subsampling, which may make a dark game look worse even though motion feels smoother.

The Signal Chain Has to Stay 10-Bit

A full 10-bit result requires the source content, application, GPU driver, cable or port, display mode, and monitor panel to support the same path full 10-bit result. If one link falls back to 8-bit, YCbCr 4:2:2, Limited RGB, or a compressed output mode, the monitor may no longer receive enough tonal information to render smooth shadows.

Diagram illustrating the 10-bit signal chain from GPU to panel, showing how a single weak link can reduce bit depth output

For a practical example, a 34-inch ultrawide at a high refresh rate can stress bandwidth more than a standard 27-inch 1440p display. A portable monitor connected over a single-cable display connector can also be limited by the host port, adapter, cable, or power mode. The spec sheet may say HDR or 10-bit, but the active mode shown in your GPU control panel is what determines what the monitor is actually receiving.

Brightness, Contrast, and Tone Mapping Can Exaggerate Steps

Banding is easier to see when brightness, contrast, or HDR tone mapping stretches a narrow range too aggressively. HDR monitors with stronger brightness capability generally have more room to represent HDR content, and one practical monitor-focused source frames 600 nits as a useful HDR floor and 1,000+ nits as a more compelling HDR range 600 nits. That does not mean brightness alone fixes banding, but weak HDR brightness often goes hand in hand with aggressive tone mapping and visible compression in dark-to-bright transitions.

Dynamic contrast can also make gradients unstable. If a monitor keeps adjusting brightness or contrast scene by scene, dark ramps may shift, crush, or separate into visible bands. For diagnosis, turn off dynamic contrast, black equalizer-style enhancements, and exaggerated sharpening before judging the panel.

How to Tell Whether Banding Comes From the Panel, Source, or Settings

The fastest way to diagnose banding is to change one variable at a time. Start with a full-screen synthetic gradient at the monitor’s native resolution, then compare it with a game scene, a local high-quality video file, a streaming video, and the desktop background. If the pattern changes across sources, the issue may not be the panel alone.

Person testing a gaming monitor for dark gradient banding in a dimly lit room using a full-screen gradient pattern

Compressed video can create false banding because common video codecs discard subtle tonal information to save bandwidth compressed video tests. A streaming clip of a dark sky may look worse than the same scene in a high-bitrate file or native game render. Before blaming the monitor, test at least one uncompressed or high-quality gradient and one known dark game scene.

A Practical Monitor Test Sequence

Use this sequence when a new gaming monitor, ultrawide, or portable display shows dark bands:

Set the monitor to its native resolution and default color mode.
Display a full-screen gray or black-to-dark-gray gradient.
Check the GPU control panel for output bit depth, RGB range, and color format.
Switch between HDR off and HDR on.
Drop refresh rate one step, such as from 144 Hz to 120 Hz.
Try another cable or port, especially if using adapters.
Disable dynamic contrast, black equalizer, and heavy sharpening.
Test a local file or in-game scene instead of only a streamed video.
Update monitor firmware and GPU drivers if the issue appears mode-specific.
Power cycle the monitor after changing HDR or refresh settings.

This process works because the common causes are separable: limited panel bit depth, weak dithering, cable bandwidth limits, RGB range mismatch, compressed content, and high-refresh output compromises can all produce similar-looking stripes common causes. If banding disappears after lowering refresh rate, the monitor may be fine while the active signal mode was the problem. If banding remains in every source and mode, panel limitations or internal processing become more likely.

What to Look for When Buying a Monitor for Smooth Dark Scenes

If dark-scene quality matters, do not shop by refresh rate alone. A 240 Hz monitor with poor HDR handling or forced reduced color output may look worse in cinematic scenes than a lower-refresh model with a cleaner 10-bit path. For buyers comparing gaming monitors, ultrawides, and portable monitors, the priority is matching panel precision, HDR capability, and connection bandwidth to the way you actually play.

For most SDR gaming and office use, 8-bit is usually adequate because much web and home content remains 8-bit SDR desktop use. For HDR gaming, dark cinematic titles, video editing, or premium visual quality, prioritize native 10-bit or a well-reviewed 8-bit + FRC implementation with proven smooth gradient handling. Also confirm that the monitor can run your target resolution, refresh rate, HDR mode, and color output at the same time.

KTC Mini LED HDR1400 gaming monitor displaying a smooth dark cinematic game scene with no banding, in a gaming room setup

Buying Priorities by Display Type

For a gaming monitor, check whether 10-bit output is available at the refresh rate you plan to use. Some displays support 10-bit at 120 Hz but switch modes at 144 Hz or higher. If you care about both motion and gradient quality, a stable 120 Hz or 144 Hz 10-bit mode may be more useful than a headline refresh rate that forces color compromises.

For an ultrawide monitor, bandwidth matters even more because the pixel count is higher. Review the supported video input modes, and check whether the monitor needs display stream compression for high-refresh HDR. Display stream compression can be visually lossless when implemented well, but the key is confirming the actual GPU output mode rather than assuming every advertised feature works simultaneously.

For a portable monitor, be cautious with vague color claims. Many portable models prioritize thin size, low power draw, and single-cable convenience over panel precision. If you plan to use one for gaming on the road, photo review, or dark video playback, look for explicit bit-depth information, good gradient test results, and enough brightness to avoid overdriving contrast.

Setup Tips That Reduce Dark Gradient Banding

After buying the monitor, the most important setup step is verifying the output mode. In the GPU control panel, choose full RGB range when appropriate, select the highest supported bit depth, and avoid unnecessary chroma subsampling for PC monitor use. If the image suddenly looks smoother at a lower refresh rate, keep that mode for HDR gaming or cinematic titles and reserve the fastest mode for competitive play.

Calibration also matters. A monitor that crushes near-black tones can hide shadow detail and then reveal harsh steps as tones emerge from black. Use the monitor’s standard or creator-style preset as a baseline, reduce extreme contrast settings, and avoid stacking software filters, in-game brightness boosts, and monitor black equalizer features unless you are tuning for competitive visibility rather than visual smoothness.

When Adding Noise Helps

Not all “noise” is bad. Controlled dithering or fine grain can visually break up banding by preventing large areas from holding the exact same tone. A technical browser-rendered gradient example showed that adding interleaved gradient noise around one 8-bit value can make a dark gradient appear smoother Interleaved Gradient Noise.

This is why some games, video players, and rendering engines include film grain or dithering options. If the grain is subtle, it can mask banding without making the image look dirty. If it is heavy, it becomes a separate distraction, so use it lightly and judge from your normal viewing distance.

FAQ

Q: Is dark gradient banding always caused by a cheap monitor?

A: No. A low-bit-depth panel can cause banding, but the source content, GPU output mode, cable bandwidth, HDR setting, RGB range, chroma format, calibration, and compression can all create or exaggerate the same striped look. A good monitor can still show banding if it receives an 8-bit or compressed signal.

Q: Is 8-bit + FRC good enough for gaming?

A: Often, yes. A well-implemented 8-bit + FRC gaming monitor can look much smoother than basic 8-bit output and may be a good value for SDR and moderate HDR gaming. Native 10-bit is still preferable for HDR-heavy games, video editing, premium visual quality, and users who notice dithering shimmer.

Q: Why does banding get worse when I use the highest refresh rate?

A: The highest refresh mode may exceed what the cable, port, GPU, or monitor can carry at full resolution, full RGB range, and high bit depth. When that happens, the system may switch to lower bit depth, Limited range, or chroma subsampling. Try a lower refresh rate, such as 120 Hz instead of 144 Hz, and check whether the GPU control panel restores 10-bit full-range output.

Practical Next Steps

If you already own the monitor, test before replacing it. Use a full-screen dark gradient, check the active GPU output format, compare HDR on and off, lower refresh rate one step, and test another cable or port. If the banding changes, the signal path or settings are probably involved; if it stays identical across sources and modes, the panel or its internal processing is more likely responsible.

If you are shopping, prioritize the complete display path rather than a single spec. For SDR gaming, a strong 8-bit or 8-bit + FRC monitor can be sensible. For HDR games, dark cinematic scenes, ultrawide resolutions, or content creation, look for native 10-bit or high-quality 8-bit + FRC, enough HDR brightness, full-resolution high-refresh support, and reviews that specifically test gradients and near-black handling.
