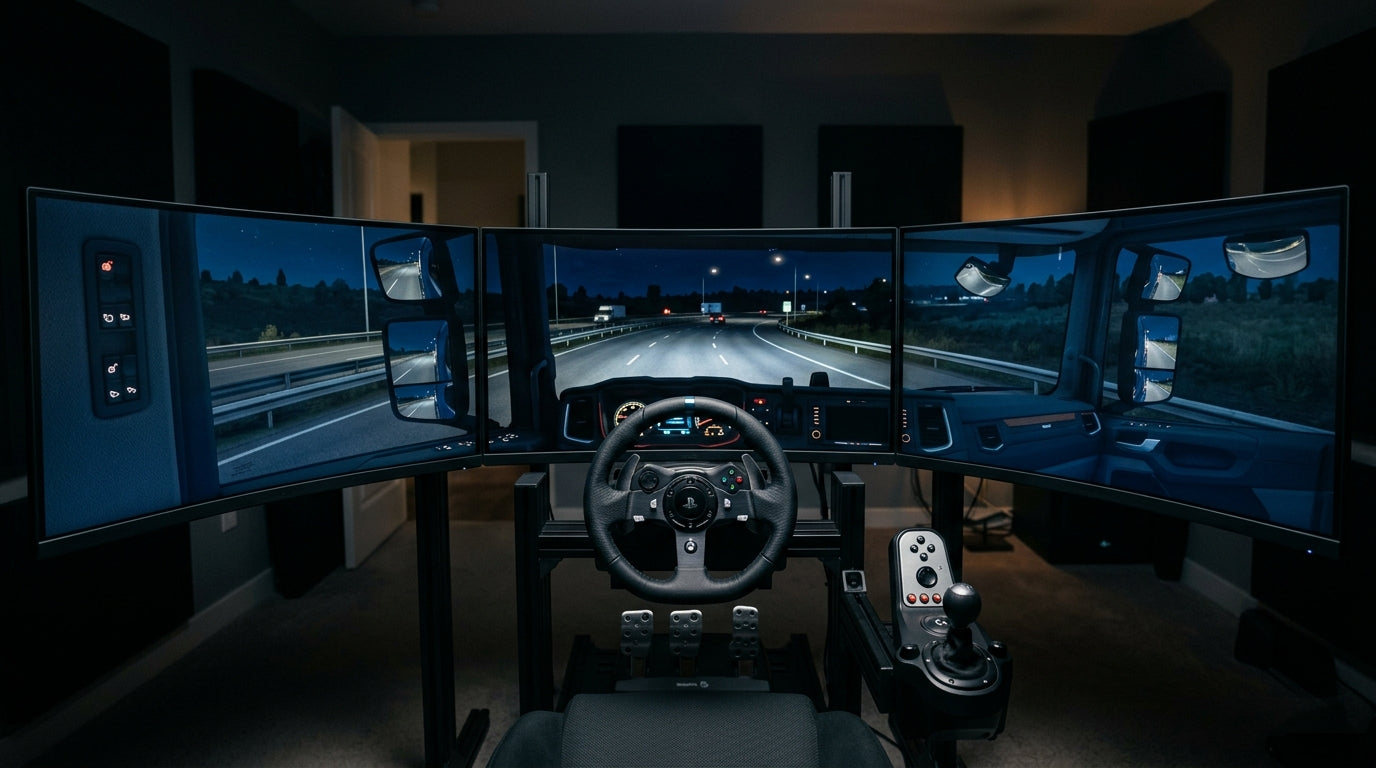

Triple-monitor setups deliver the true 180-degree wrap-around view that truck and farming simulator players need for natural mirror checks and peripheral awareness. While a super-ultrawide offers width, three matched displays create the in-cab realism that single-screen or ultrawide options cannot match, provided you plan the physical layout, panel type, calibration, and GPU headroom correctly.
The Panoramic Advantage: Why Triple Monitors Win for Simulation
For dedicated sim-rig builders playing Euro Truck Simulator 2 (ETS2), American Truck Simulator (ATS), or Farming Simulator 22 (FS22), the key advantage of triples lies in peripheral vision. A single monitor or even a 49-inch super-ultrawide typically delivers 90–110 degrees of effective horizontal field of view. Three monitors angled at 45–60 degrees can approach 180 degrees, letting you glance at side mirrors or field edges the way a real driver would.
This setup suits immersion-focused enthusiasts who already have a cockpit frame or wide desk and want to avoid the “tunnel vision” common in single-screen play. It also appeals to savvy buyers seeking high spec-per-dollar value: factory-direct options from brands like KTC can deliver the necessary refresh rate and contrast without the premium markup of traditional gaming-monitor lines.
That said, triples are not ideal for everyone. If your desk space is under 60 inches wide, your GPU lacks sufficient VRAM, or you prefer plug-and-play simplicity, a high-quality ultrawide often creates less friction while still boosting immersion. The decision hinges on whether natural head movement and mirror realism outweigh the added setup effort.
Physical Rig Planning: Desk Depth, Angles, and VESA Mounting
A triple 27-inch setup typically needs about 60 inches of horizontal desk width; 32-inch panels push that closer to 70 inches once you account for bezels and angling. The 45-degree rule is a practical starting point: position the side monitors at 45–60 degrees relative to the center screen. This angle minimizes neck strain during long hauls while keeping the outer edges within comfortable peripheral vision.
Heavy-duty VESA monitor arms are almost mandatory. Standard desk stands rarely allow the precise inward tilt and height matching required for a level horizon line across all three panels. Look for arms rated to support the combined weight and offering sufficient reach so the side panels do not overlap or sit too far back.
If your desk has a glass top, mounting arms directly to it can create dangerous point pressure. In those cases, a reinforced mounting plate or a dedicated sim cockpit frame is safer. Planning the physical layout first prevents the common regret of monitors that cannot be aligned properly after purchase.
For more on safe mounting, see our guide to mounting a monitor arm on a glass desk.
Choosing the Right Panel: IPS Flat vs. VA Curved for Sim Gaming
Night driving in ETS2 rewards deep blacks and high contrast, which VA panels like the KTC H27S17 deliver effectively. However, VA technology shows noticeable color and gamma shift starting at roughly 20–30 degrees off-center. In a typical 45-degree triple rig, the outer portions of flat side panels fall outside this safe zone, creating a hazy or washed-out look on the side windows.
A 1500R curvature, as found on the KTC H32S17, physically brings those edge pixels back toward your eyes, keeping most of the side panel within the VA fidelity zone. This makes curved VA a strong choice for contrast-heavy trucking sims.
Flat IPS panels, such as the KTC H27T22C-3, maintain far better color consistency across wide angles. They are the safer “set-and-forget” option when perfect dashboard and mirror hues matter more than deep blacks, or when your rig angles exceed 35 degrees without curvature.
GPU Load by Display Setup
Triple 1440p adds roughly one-third more pixels than a single 4K display, while VA panels tend to shift color more noticeably at off-center viewing angles than IPS. Use this as a planning aid for GPU headroom and panel choice in sim rigs, not as an exact performance benchmark.
View chart data
| Category | Pixel load (relative) |
|---|---|
| Single 4K | 1.0 |
| Triple 1440p | 1.33 |
The chart above illustrates the relative pixel load difference and helps frame the VA-versus-IPS trade-off at typical rig angles. Choose curved VA when night contrast is your priority and your rig geometry supports it; choose flat IPS when color uniformity across the entire view is non-negotiable.
Software Calibration: Configuring ETS2 and Farming Simulator
ETS2 and ATS include native multi-monitor support that avoids many of the compromises found in other titles. According to the official SCS Modding Wiki, setting r_multimon_mode 2 renders three independent camera views. This approach delivers distortion-free side perspectives and lets you use in-game variables such as r_multimon_border_fov_left and r_multimon_border_fov_right to hide pixels behind the physical bezels, preserving a continuous dashboard.
For FS22 the situation differs. The game lacks a true multi-view engine and instead relies on driver-level spanning through Nvidia Surround or AMD Eyefinity to treat the three monitors as one large virtual display. As discussed in the GIANTS Software community forum, this single-projection method inevitably stretches the outer edges. The practical workaround is to edit the game.xml file and lower the FOV to roughly 55–65 degrees. This reduces fish-eye distortion on the side screens, although some stretching in the mirrors remains an accepted limitation of the engine.
In both cases, avoid driver-level bezel correction when using native or spanning modes; the in-game tools provide more accurate compensation. Matching the three monitors for identical brightness, color temperature, and HDR settings (the “toggle tax”) further improves seamlessness.
See our related article on IPS vs VA panels for deeper panel-performance context that affects these simulator visuals.
Performance Planning: GPU and VRAM Requirements for 2026 Sims
Triple 1440p renders approximately 11.06 million pixels per frame—roughly 33 % more than a single 4K display. Benchmarks summarized on sim-racing hardware sites indicate that an RTX 5070 Ti or Radeon RX 9070 XT class card forms the practical 2026 entry point for stable 60–90 fps with reasonable texture settings. While the monitors themselves support 180 Hz, simulation titles rarely sustain triple-digit frame rates across three panels; 60–90 fps remains the realistic target for smooth mirror updates and physics feedback.
VRAM is equally critical. High-detail texture packs and photogrammetry mods in ETS2 or FS22 can easily push past 12 GB when spanned across three screens. A 16 GB VRAM threshold serves as a useful heuristic to avoid texture streaming stutter during dense traffic or detailed field work. Using high-quality DisplayPort 1.4 cables rated for the required bandwidth helps prevent signal dropouts that sometimes appear under heavy load.
Our guide to curved vs flat monitors explores additional performance nuances that matter when scaling to triple setups.
Verification and Troubleshooting: The Final Cockpit Check
Once hardware and software are in place, run a horizon-leveling test. Drive a straight road or flat field and confirm the dashboard line or horizon sits at exactly the same height across all three panels. Minor height or tilt adjustments on the VESA arms usually resolve mismatches.
Check cable quality and routing next. Signal dropouts on the outer monitors often trace back to marginal HDMI or DisplayPort cables when running spanned resolutions. Synchronizing OSD settings across the three units—especially brightness, color temperature, and HDR mode—eliminates visible seams when switching between day and night scenes.
If side views still look distorted in FS22 after XML tweaks, the limitation is engine-related rather than a hardware flaw. In that case, many players accept the compromise or supplement with a head-tracking device for more natural glances. When everything aligns, the resulting panoramic cockpit view dramatically increases immersion for long-haul trucking or detailed fieldwork.
Is a Triple-Monitor Setup Worth It for Truck Simulator and Farming Simulator?
Do I need identical monitors for a triple setup?
Matching the three panels in size, resolution, curvature, and panel type is strongly recommended. Mismatched models create alignment headaches and visible differences in color or brightness that break immersion. Using the same model, such as three KTC H27S17 curved VA units, simplifies bezel compensation and horizon leveling.
What GPU do I realistically need for triple 1440p in ETS2 or FS22?
A GPU with at least 16 GB VRAM and performance comparable to current mid-to-upper-midrange 2026 cards is the safe minimum. This headroom handles the extra pixel load and high-detail mods without frequent stutters. Lower-spec cards may force reduced settings or lower refresh rates that reduce the benefit of the triple setup.
Can I use ultrawide monitors in a triple configuration?
Technically yes, but the physical depth and bezel thickness of most ultrawides make tight bezel alignment difficult. Standard 16:9 gaming monitors remain the more practical choice for most sim rigs.
How do I reduce distortion on the side monitors in Farming Simulator 22?
After enabling Nvidia Surround or AMD Eyefinity, edit the game.xml file to set a lower FOV than the in-game slider allows. Values between 55 and 65 degrees often produce the best compromise between side visibility and reduced stretching. Expect some residual distortion; the FS22 engine does not offer ETS2-style independent camera views.
Should I choose curved or flat monitors for a sim-rig triple setup?
Curved VA panels (1500R) excel when night driving and contrast matter most, provided your rig angles keep the side panels within the improved viewing cone. Flat IPS panels are the safer choice for color-critical dashboard and mirror consistency across wide angles. Test your specific seating distance and angle before deciding; many builders mix one curved center with flat IPS sides when budget allows.
