Driving two or more 4K monitors for video editing often hits hidden limits in ports, docks, and GPU bandwidth that cause flicker, dropped refresh rates, or color problems. The core issue is moving roughly 16 million pixels per frame across multiple displays while preserving refresh rate, bit depth, and stability.
The Bandwidth Math: Why Multi-4K Setups Fail for Editors
Dual-4K editing stations move far more data than most ports and docks were designed to handle. Bandwidth demand depends on resolution, refresh rate, color depth, and chroma subsampling together.
Bandwidth Demand for Common Multi-4K Configurations
Bandwidth required to drive one or two 4K displays at different refresh rates and 10-bit color depth. Values above the DP 1.4 or TB4 line typically need DSC or a faster standard.
Show data table
| Configuration | Bandwidth (Gbps) | Notes |
|---|---|---|
| 4K 60Hz 10-bit (single) | 14 | Fits inside TB4 / DP 1.4 |
| 4K 120Hz 10-bit (single) | 27.5 | Requires DSC or HDMI 2.1 |
| 4K 144Hz 10-bit (single) | 33 | DP 1.4 needs DSC |
| Dual 4K 60Hz | 28 | Borderline for TB4 dock |
| Dual 4K 120Hz | 55 | Exceeds TB4; TB5 or direct HDMI needed |
A single 4K 60 Hz 10-bit stream already consumes 13-15 Gbps. Adding a second screen or raising the refresh rate quickly pushes past the limits of older standards. Editors notice the result as flickering, forced 30 Hz output, or forced 8-bit color.

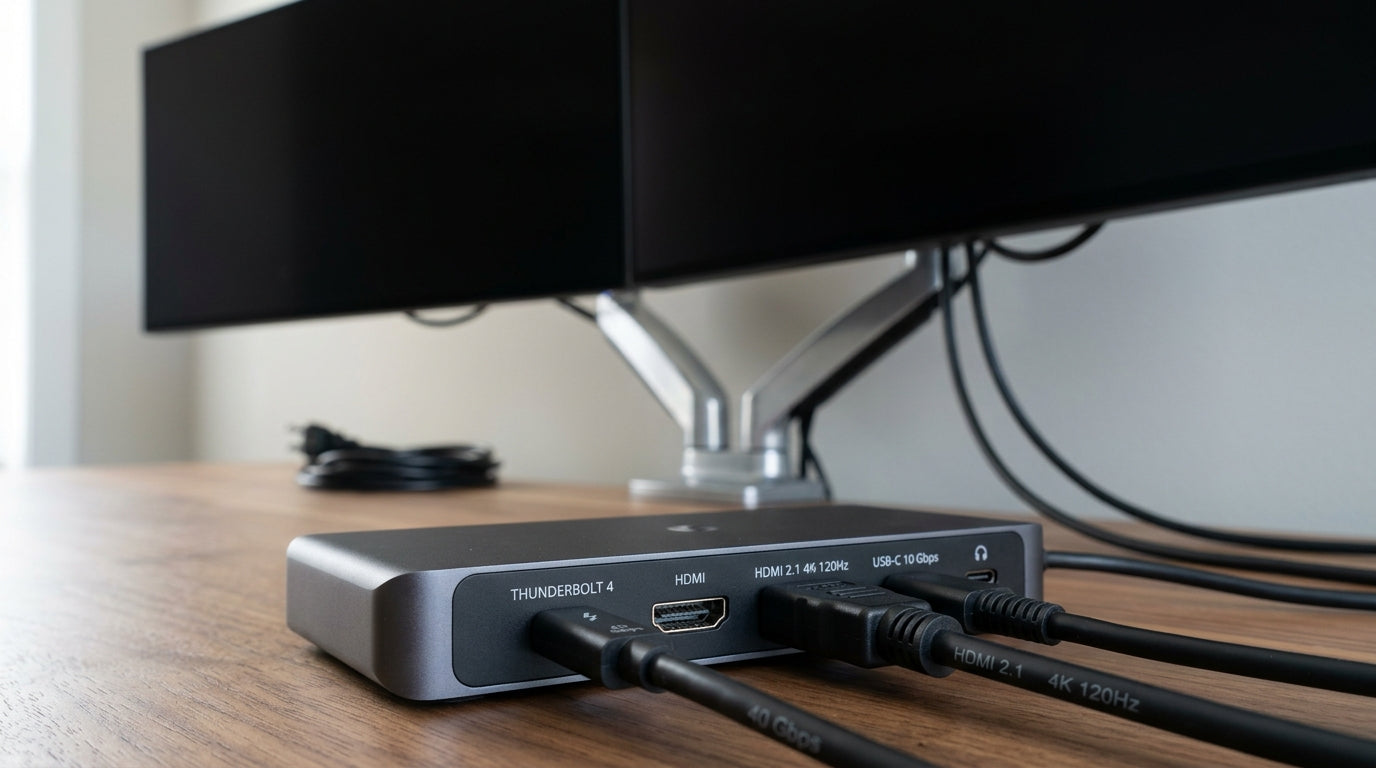

Thunderbolt 4 vs. HDMI 2.1: Choosing the Right Port Standard
Thunderbolt 4 delivers 40 Gbps total bandwidth and excels at single-cable docking that carries video, data, and power together. Thunderbolt 4 vs Thunderbolt 5 Technology Specifications shows the practical ceiling: dual 4K at 60 Hz works, but higher refresh rates or three-plus displays benefit from Thunderbolt 5 or direct connections.
HDMI 2.1 provides up to 48 Gbps and remains the most stable path for a primary high-refresh grading monitor. Many editors therefore run the main timeline monitor directly over HDMI 2.1 while routing secondary displays through a Thunderbolt dock.
DisplayPort Alternate Mode Over USB-C: How Video, Data, and Power Share the Same Lanes explains how USB-C monitors such as the KTC M27P6 can receive both video and up to 90 W charging over one cable when the host supports Alt Mode.
The "Mirroring Trap": Why Your Dock Fails on macOS
macOS does not support DisplayPort MST for extending displays. Standard USB-C MST hubs therefore mirror the second screen instead of extending it. Understanding MST vs SST for Multi-Monitor Setups confirms this behavior is a macOS limitation, not a dock defect.
Thunderbolt-certified docks are the reliable single-cable solution for MacBook Pro and Mac Studio users who need two extended 4K displays. Cheaper USB-C hubs cannot bypass the restriction. Separate cable runs from two host ports remain the simplest workaround when a Thunderbolt dock is unavailable.
Base Apple Silicon chips (M1 through M3) support only one external display natively. How many displays can be connected to MacBook Pro lists the exact limits by chip. Later M4 and M5 Pro/Max chips relax these limits, but the mirroring trap still applies to non-Thunderbolt docks.
Maintaining 10-Bit Color: How DSC Saves Professional Workflows
4K 144 Hz 10-bit exceeds the raw bandwidth of DisplayPort 1.4. Display Stream Compression (DSC) supplies a visually lossless 3:1 ratio that restores headroom without perceptible latency or color shift for grading work. Display Stream Compression (DSC) Standard Overview states that VESA-certified DSC maintains image fidelity suitable for professional imaging and HDR pipelines.
To confirm DSC is active, check the monitor OSD or GPU control panel for the active link rate and compression status. If the panel reports a lower link rate than expected yet still achieves the target refresh rate and bit depth, DSC is engaged.
What Does Bit Depth Mean, and How Does 8-bit Differ From 10-bit Display? and What Delta E Values Actually Mean for Your Creative Work provide additional context on why 10-bit pipelines matter for smooth gradients and accurate color management.
GPU VRAM and Apple Silicon: The Hardware Limits You Can’t Bypass
Each additional 4K display at high refresh rate increases the UI VRAM tax before any editing application opens. Eight gigabytes is the bare minimum; 12-16 GB prevents micro-stutter in Premiere Pro or DaVinci Resolve timelines when two 4K monitors run at 120 Hz or higher. macOS scaling (for example, “Looks like 1440p”) adds further GPU load.
Apple Silicon display limits remain hardware-enforced regardless of dock. Pro and Max chips handle more simultaneous external displays than base chips, but total bandwidth still depends on the Thunderbolt controller and cable quality. Editors planning dual-4K workstations should verify both VRAM capacity and native display count before purchasing monitors.
What Happens When Your GPU Can’t Keep Up With Your Monitor’s Refresh Rate? outlines the visible symptoms and mitigation steps when GPU bandwidth becomes the bottleneck.
The Professional Setup Checklist: Validating Your Multi-4K Rig
Begin by confirming your host GPU and OS display limits. Next choose the connection topology: a single Thunderbolt dock for minimal cable clutter or direct HDMI 2.1 runs for the primary grading monitor. Use only VESA- or HDMI-certified cables rated for the target resolution and refresh rate.
Finally adjust OS scaling and disable unnecessary background processes that compete for GPU resources. Test the full timeline with all monitors active and verify that 10-bit color and target refresh rates remain stable under load.
How a USB-C Monitor Can Streamline Your Workspace shows how a single-cable USB-C monitor can reduce desk clutter while still delivering 4K video and power delivery.
Frequently Asked Questions
Can a Thunderbolt 4 Dock Drive Two 4K Monitors at 120 Hz on a Mac?
Thunderbolt 4 provides 40 Gbps total bandwidth. Dual 4K 120 Hz 10-bit exceeds this limit on most hosts, so the dock will either drop to 60 Hz or engage DSC. Thunderbolt 5 docks with higher bidirectional bandwidth are required for uncompressed dual-4K 120 Hz on macOS.
Does DSC Introduce Visible Artifacts in Color Grading?
VESA-certified DSC 1.2a is visually lossless at the ratios used for 4K high-refresh signals. Professional editors report no measurable Delta E shift or perceptible latency when the GPU and monitor both support the standard. Always verify that DSC is actually active rather than assuming the link is uncompressed.
Why Does My Second Monitor Mirror Instead of Extend on macOS?
macOS lacks MST support for extended displays. Non-Thunderbolt USB-C hubs therefore duplicate the image. A Thunderbolt-certified dock or separate cable from a second host port is required to obtain independent extended desktops.
How Much VRAM Do I Need for Dual 4K Editing?
Eight gigabytes is the practical floor for basic dual-4K timelines. Twelve to sixteen gigabytes gives comfortable headroom for color grading, multiple 4K previews, and UI scaling without micro-stutter. The exact requirement rises further when using high-refresh rates or macOS fractional scaling.
Can I Use HDMI 2.1 and Thunderbolt Together in One Setup?
Yes. Many editors connect the primary grading monitor directly via HDMI 2.1 for maximum stability and route secondary monitors through a Thunderbolt dock. This hybrid approach balances bandwidth, color fidelity, and cable management.
What Happens If I Exceed My Laptop’s Native Display Limit?
The host GPU simply refuses additional extended displays. No dock can override the hardware limit. Users with base M-series chips must either close the laptop lid or accept that only one external monitor will function.
Is 4K 144 Hz Realistic Across Two Displays for Editing?
Dual 4K 144 Hz 10-bit requires roughly 66 Gbps. Only Thunderbolt 5 in Bandwidth Boost mode or multiple direct HDMI 2.1 connections can deliver this uncompressed. Most current Thunderbolt 4 docks will fall back to 60 Hz or heavy compression.
