What Is DisplayPort Alternate Mode and How Does It Work on USB-C?

DisplayPort Alternate Mode lets a compatible USB-C port send DisplayPort video and audio to a monitor while the same connector may also handle data and charging. USB-C shape alone does not guarantee screen output.

Plugged your laptop into a USB-C monitor and got charging, but no picture? In display testing, the fastest way to prevent that black-screen loop is to verify three things before buying anything: the source port, the cable, and the monitor mode you want. You’ll leave with a practical way to identify DP Alt Mode, choose the right cable, and avoid wasting money on adapters that cannot fix a non-video USB-C port.

What DisplayPort Alternate Mode Means

DisplayPort Alternate Mode, often shortened to DP Alt Mode, is a USB-C feature that allows a USB-C connection to carry DisplayPort video and audio signals. USB-C is the physical reversible connector; DP Alt Mode is the optional display capability built into some USB-C ports, cables, hubs, docks, and monitors.

That distinction matters because two USB-C ports can look identical and behave completely differently. One may support charging only, another may transfer data, and another may drive a 4K monitor. USB-C DP Alt Mode is valuable because it can combine high-resolution video, audio, data, and power delivery through one compact connector, but every device in the chain still has to support the needed function.

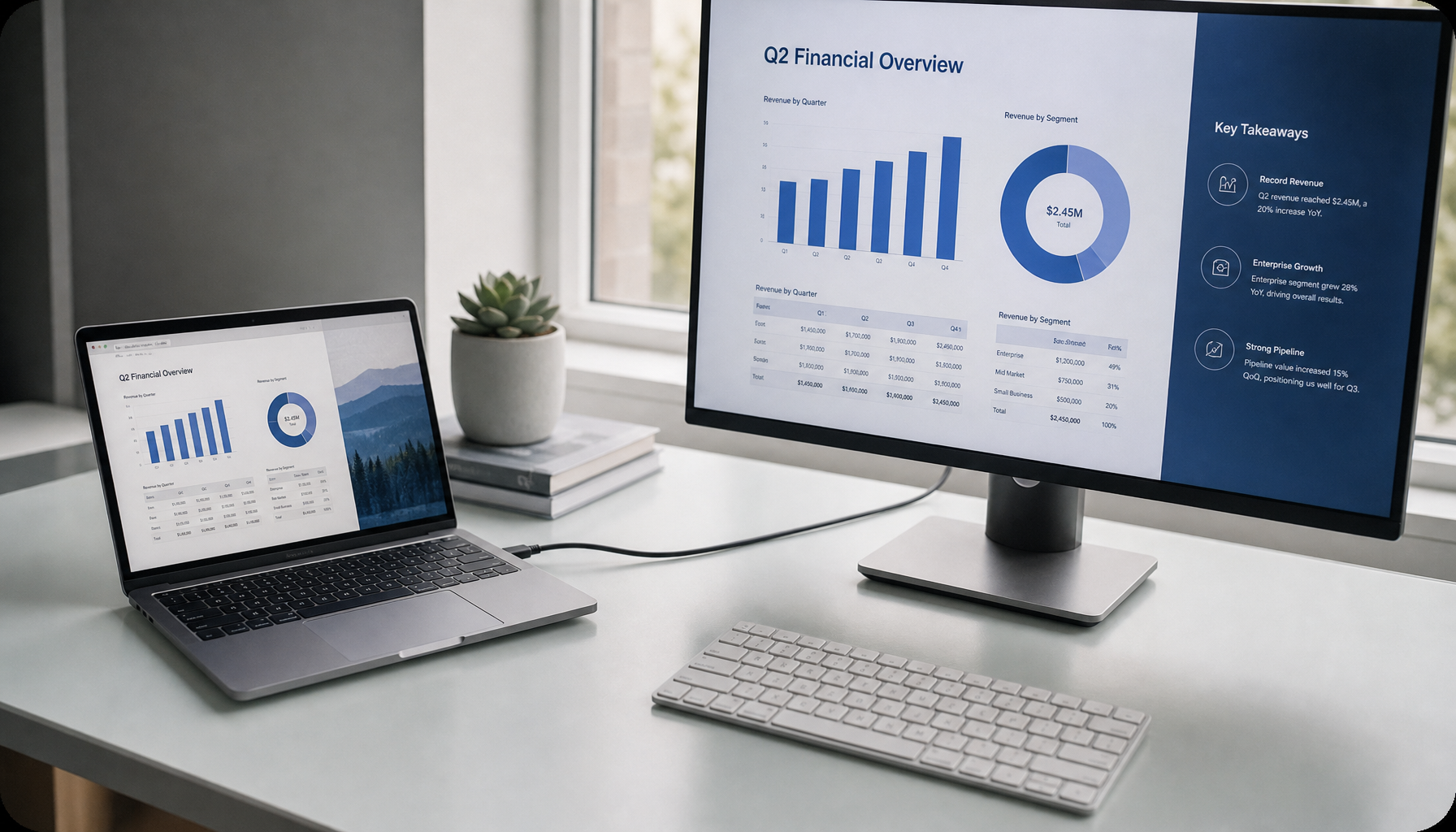

For a clean workstation, that means one cable from your laptop to a USB-C monitor can potentially power the laptop, send the image, connect your keyboard and mouse through the monitor’s USB hub, and reduce desk clutter. For gaming, creative work, and high-refresh productivity, it also means the USB-C cable path has to be treated like a real display path, not just a charging cable.

How DP Alt Mode Works Inside USB-C

USB-C has high-speed lanes that can be assigned to different tasks. In DP Alt Mode, those lanes can be repurposed to carry DisplayPort data instead of only USB data. A technical overview explains that DP Alt Mode can use the four SuperSpeed differential pairs in USB-C for DisplayPort packets, with common configurations that split lanes between display and USB data or dedicate more lanes to video performance.

In practical terms, the connection negotiates what both ends can do, then routes the available lanes. A 2-lane DP configuration leaves room for USB 3.2 data, which is useful in a docking station where you want video plus fast ports for storage or peripherals. A 4-lane DP configuration gives more display bandwidth but typically leaves only USB 2.0-level data, which is still fine for a keyboard, mouse, or monitor controls.

This lane sharing is why a monitor may work at 4K 60Hz directly but lose options when routed through a dock with many active USB devices. The connector is the same, but the bandwidth budget is being divided.

What DP Alt Mode Can Do for Monitors

For office productivity, DP Alt Mode is one of the best reasons to buy a USB-C monitor. A single cable can connect your laptop to the display, charge the laptop when the monitor supports enough power delivery, and route peripherals through the monitor’s USB hub. One monitor maker notes that USB-C capabilities vary by source device, monitor, and cable, which is exactly the point: the workflow is elegant only when the whole chain is specified correctly.

For gaming and performance displays, DP Alt Mode can support high resolution, high refresh rates, richer color depth, and features associated with DisplayPort, depending on the DisplayPort version and device implementation. A 1440p 180Hz monitor, for example, needs more bandwidth than a basic 1080p office screen. Research notes on DP 1.2 and DP 1.4 show that DP 1.2 may be enough for 2560 x 1440 at 180Hz with 8-bit color, while DP 1.4 gives more headroom for 10-bit color, HDR, and future display modes.

For portable smart screens, DP Alt Mode is often the difference between a true plug-and-play second display and a frustrating accessory that only charges. Handheld PCs, tablets, some phones, and thin laptops rely on USB-C because there is no room for full-size HDMI or DisplayPort. That makes port verification more important, not less.

DP Alt Mode vs Standard DisplayPort, HDMI, Certified USB-C, and Software USB Graphics

Standard DisplayPort remains the performance-first choice for desktop PCs, high-refresh gaming monitors, and multi-monitor workstations. DisplayPort over USB-C brings much of that capability into a smaller connector and adds the convenience of single-cable docking, but the USB-C path may share bandwidth with USB data and power.

HDMI is still the easiest choice for TVs, consoles, projectors, and long room runs. DisplayPort is usually stronger for PC gaming, high-refresh monitors, and daisy chaining. USB-C with DP Alt Mode is strongest when portability, charging, docking, and clean desk setup matter as much as display output.

Certified high-bandwidth USB-C interfaces and newer USB-C standards often support DisplayPort signaling, but they are not identical to basic DP Alt Mode. Certification usually gives buyers more predictable bandwidth and docking behavior. A plain USB-C port may or may not support video at all.

Software USB graphics adapters are another common source of confusion. One adapter maker distinguishes native USB-C Alt Mode from external USB graphics: native uncompressed video is sent through USB-C, while software-driven display adapters use compressed video over USB. Software USB graphics can be useful for office spreadsheets and extra static displays, but it is not the preferred path for gaming, HDR work, or latency-sensitive creative workflows.

How to Check Whether Your USB-C Port Supports DP Alt Mode

The best first check is the exact device specification, not the shape of the connector. Look for phrases such as “DisplayPort over USB-C,” “DP Alt Mode,” “USB-C video output,” or “USB4.” A DisplayPort logo near the USB-C port is a strong clue, and a lightning-style certification icon often indicates display capability on compatible systems.

A battery icon by the port usually points to charging, not video. That small distinction can save real money. A $40.00 USB-C to HDMI adapter cannot make a charge-only USB-C port output video, and a $150.00 dock cannot add GPU display signaling that the laptop never exposes through that port.

The practical test is straightforward: use a known video-capable USB-C cable or USB-C to DisplayPort cable and connect the device directly to a monitor. If the system offers mirror or extend display options, DP Alt Mode is working. If one USB-C port fails, test the others because many laptops have mixed USB-C capabilities across ports.

On computers with high-bandwidth USB-C ports, display output is generally built into the port family, though monitor count and maximum resolution still depend on the exact model. On phones, support is much less predictable; premium models may support external display modes, while many budget phones use USB-C only for charging and data.

How to Choose the Right USB-C Cable

A USB-C cable labeled only as “charging,” “fast charging,” or “sync and charge” should be treated as suspect for monitor use. A 100W rating means the cable can handle power; it does not prove it can carry video. KTC’s cable guidance is direct on this point: USB-C is only the connector shape, while display support depends on DP Alt Mode, USB4, or certified high-bandwidth USB-C support.

For value setups, a USB-C 3.2 Gen 2 cable that explicitly states DP Alt Mode or video support is often the smart buy. For high-end gaming monitors, premium docks, and portable displays that need stable high refresh rates, USB4 or similarly certified high-bandwidth USB-C cables are the safer option.

Cable length also matters. Shorter high-speed USB-C cables are usually more reliable because high-bandwidth signals are harder to maintain over distance. If you are driving a 4K 60Hz monitor or a 1440p high-refresh display, a short, clearly specified cable from a reputable maker is a better investment than a long, cheap cable with vague claims.

Pros and Cons of DP Alt Mode

The biggest advantage is simplification. One cable can replace separate power, display, and USB hub connections. For hybrid work, hot-desking, and laptop-first setups, that makes daily docking faster and less messy. For portable monitors, it enables a lightweight setup where a laptop, tablet, handheld gaming PC, or compatible phone can drive a second screen without a bulky adapter stack.

The performance upside is also real. DP Alt Mode uses DisplayPort signaling rather than routing everything through a software display adapter. That makes it better suited for high-resolution panels, gaming monitors, color-sensitive work, and responsive cursor movement.

The downside is inconsistency. USB-C branding does not tell you enough by itself, and bandwidth can be shared between video and USB data. A technical note explains that DP Alt Mode bandwidth may be affected when video, USB data, and power delivery share the same connection, which can influence maximum resolution or refresh rate. For a competitive gaming desktop, a full-size DisplayPort cable directly from the GPU is still the cleaner performance path.

Troubleshooting a USB-C Monitor With No Signal

Start with the port, then the cable, then the display settings. Confirm the USB-C port supports video output. Swap in a known video-capable USB-C cable. Connect directly to the monitor before testing through a hub or dock. If the direct connection works but the dock fails, the dock path is the bottleneck.

Next, lower the display mode. A laptop and cable that cannot sustain 4K 144Hz may still work at 4K 60Hz or 1440p 120Hz. That does not mean DP Alt Mode failed; it means the bandwidth path cannot support the selected mode. For office work, lowering refresh rate may be acceptable. For gaming, it usually means you need a stronger cable, a better dock, or a direct DisplayPort connection.

Finally, update graphics drivers, firmware, and dock firmware where applicable. Some systems also have firmware settings that affect USB-C display routing, especially on business laptops and open-source-focused machines.

FAQ

Does every USB-C port support DisplayPort Alt Mode?

No. USB-C is a connector shape, while DP Alt Mode is an optional feature. Always check the device specifications or test the port with a known video-capable cable and display.

Can a USB-C to HDMI adapter add DP Alt Mode?

No. An adapter can convert an existing USB-C video signal to HDMI, but it cannot create video output from a USB-C port that lacks DP Alt Mode, USB4, or other USB-C display support.

Is certified high-bandwidth USB-C the same as DP Alt Mode?

No. Certified high-bandwidth USB-C interfaces use the USB-C connector and typically support display output, but they are broader interfaces with higher-bandwidth docking capabilities. DP Alt Mode specifically refers to carrying DisplayPort video over USB-C.

Why does my USB-C monitor charge my laptop but show no picture?

The cable, port, or monitor input path may support power but not video. A power-rated cable is not automatically a video cable, and a charging USB-C port is not automatically a display-output port.

Final Word

DisplayPort Alternate Mode is one of the most useful display technologies in modern USB-C setups because it can turn one compact port into a clean, powerful monitor connection. Treat the port, cable, dock, and monitor as one performance chain, and you’ll get the single-cable setup USB-C promised without sacrificing the refresh rate, resolution, or reliability your screen deserves.
