A single-cable USB-C setup can deliver 4K at 160 Hz, but only when the laptop, cable, monitor, and settings all align on full four-lane bandwidth and Display Stream Compression. Most users discover the limit when they also want fast USB data or high-wattage charging at the same time.

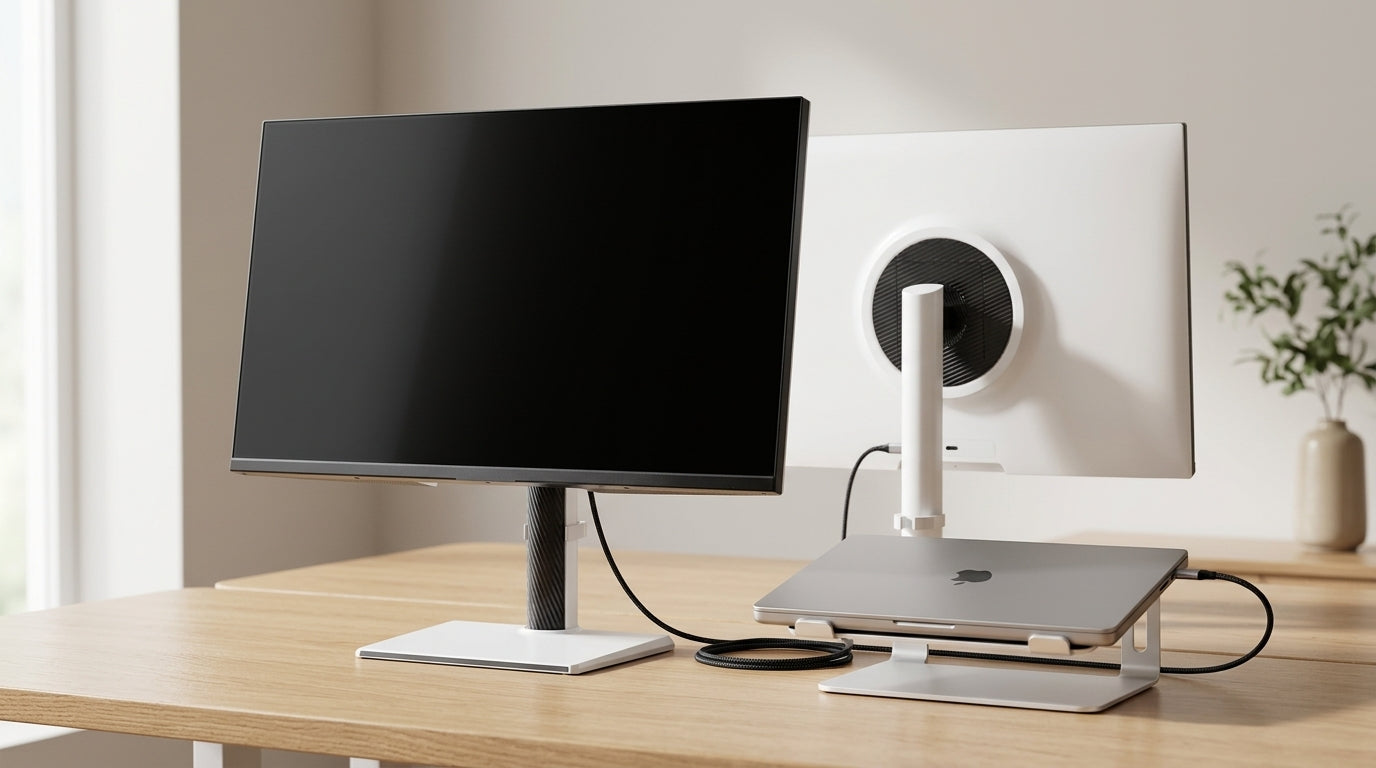

The Single-Cable Dream: Why 4K 160Hz Over USB-C Is the Ultimate Desk Setup
Many enthusiasts want one cable to carry video, data, and laptop charging. USB-C makes that promise possible through DisplayPort Alt Mode, yet the physical lanes inside the connector create hard choices. The appeal is obvious for gamers and creators who value clean desks, but the bandwidth math often forces compromises that marketing rarely highlights.
Understanding the USB-C Bandwidth Ceiling
DisplayPort Alternate Mode 1.4 over USB-C uses four high-speed lanes for a maximum usable data rate of 25.92 Gbps. VESA documentation on DP Alt Mode confirms this ceiling. Uncompressed 4K 160 Hz at 10-bit color exceeds 44 Gbps, so any USB-C port is not an unlimited pipe. It is a shared resource that must split capacity between video, USB data, and power negotiation.
The Essential Role of Display Stream Compression (DSC)
DSC compresses the video signal at roughly 3:1 ratios while remaining visually lossless for most content. Display Stream Compression explanations show why it is required for 4K 160 Hz over DP 1.4. Without DSC support on both the GPU and monitor, the signal drops to lower refresh rates or reduced color depth. With DSC enabled, the same 25.92 Gbps link can carry the full 160 Hz signal.
Bandwidth Allocation: The USB 3.0 vs. Refresh Rate Trade-off
USB-C ports switch between 4-lane and 2-lane modes. Four-lane mode keeps full video bandwidth but limits USB ports to 480 Mbps speeds. Two-lane mode unlocks USB 3.2 data rates yet halves video bandwidth to roughly 12.96 Gbps. The table below shows the practical outcome.
USB-C Lane Mode Trade-off for 4K 160 Hz
Choosing USB 3.0 data speeds forces a drop in refresh rate or color depth on DP 1.4 connections.
Show table
| Mode | Max Refresh (4K 10-bit DSC) | USB Data Speed |
|---|---|---|
| 4-Lane (High Res) | 160 Hz | USB 2.0 (480 Mbps) |
| 2-Lane (High Speed) | 60-120 Hz | USB 3.2 (up to 10 Gbps) |
Does Power Delivery Affect Your Gaming Performance?
USB Power Delivery travels over dedicated CC pins and does not directly reduce video bandwidth. However, sustained 90 W charging creates heat at the port. In high-load gaming sessions this thermal load can trigger brief signal instability or power sag when the monitor runs at maximum brightness. Users who need both reliable 160 Hz and heavy charging often keep a dedicated power brick available.
Essential Hardware: Choosing the Right Cable and Port
Standard phone cables lack the required data lanes and E-marker chips. A full-featured 40 Gbps USB4 or Thunderbolt 4 cable with E-marker support is the practical minimum for 90-100 W PD plus 4K 160 Hz video. The laptop GPU must also expose DP 1.4 Alt Mode on that port. Checking the laptop specifications or testing with a known-good cable avoids most early disappointments.
Troubleshooting the USB-C Bottleneck: Why 160Hz Fails
When 160 Hz does not appear, start with the monitor OSD and confirm USB-C prioritization is set to high resolution. Next, verify the laptop port supports four-lane DP Alt Mode and that DSC is active. Some Mac models require specific wake-up sequences or firmware updates to maintain the handshake. Persistent failures usually indicate the port cannot sustain the full signal, at which point a dedicated DisplayPort or HDMI cable becomes the reliable fallback.
The Verdict: Is the Single-Cable Dream Realistic for 4K 160Hz?
The setup works when the entire chain supports four-lane DP 1.4, DSC, and an E-marker cable rated for at least 100 W. For most competitive sessions, keeping a native DisplayPort cable ready removes the last variables. KTC 4K 160 Hz models such as the H27P6 and M27P6 expose the necessary USB-C features while offering full-size DP and HDMI ports for users who need maximum stability. The single-cable approach delivers convenience for daily use, yet the most demanding play still benefits from the extra bandwidth headroom of a dedicated cable.
Frequently Asked Questions
Does 4K 160Hz Work Over USB-C Without DSC?
No. Without DSC the required data rate exceeds the 25.92 Gbps limit of DP 1.4 Alt Mode, so the connection falls back to 60 Hz or lower color depth. Both the GPU and monitor must support DSC for 160 Hz to appear.
Does Higher Charging Wattage Reduce My Monitor's Refresh Rate?
Charging wattage itself does not consume video lanes, yet the heat generated during 90 W+ sessions can produce temporary signal flicker or force a renegotiation. Keeping the monitor brightness moderate or using a separate charger during long gaming sessions avoids most issues.
What Cable Specifications Guarantee 4K 160Hz Plus 90W Charging?
Look for a full-featured USB4 or Thunderbolt 4 cable rated for 40 Gbps with an E-marker chip that supports 100 W or higher. Shorter lengths (under 1 m) improve signal integrity when running at the highest refresh rates.
Why Does My USB-C Dock Drop the Monitor to 60Hz?
Most docks default to two-lane mode to enable USB 3.x data speeds. Switching the monitor OSD to high-resolution mode or bypassing the dock with a direct full-featured cable usually restores 160 Hz.
Can I Use a Standard USB-C Phone Cable for This Setup?
Standard phone cables lack the extra high-speed lanes and E-marker chip. They typically support only USB 2.0 data and low-wattage charging, so they cannot carry 4K 160 Hz video.
