DP 2.1 is not automatically required for every do i need dp 2.1 for 4k 240hz monitor setup. The real answer depends on the exact refresh mode, whether the display uses compression, and whether the GPU, monitor, and cable all support the same signal path.

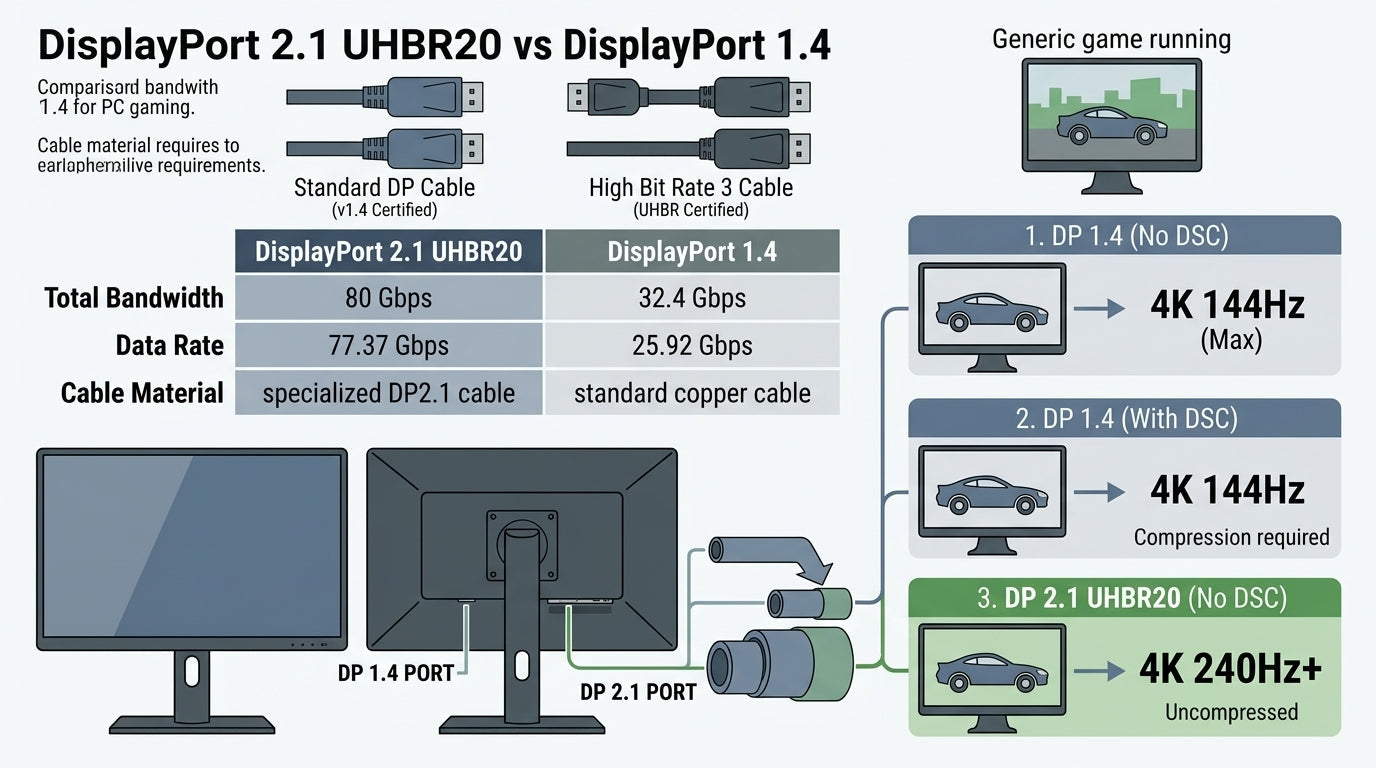

What DP 2.1 and UHBR20 Actually Change
For most buyers, DP 2.1 mainly matters because it raises the link bandwidth ceiling. VESA's DisplayPort 2.1 specification announcement defines UHBR tiers up to UHBR20; background notes from the DisplayPort site indicate DP80 cables align with full UHBR20 use.
The useful decision point is simple: if your monitor mode needs more bandwidth than the port class can carry, you either need a higher-tier link or you need compression. UHBR20 is best treated as the highest-end bandwidth target, not as a universal requirement for every 4K high-refresh monitor.
A good rule of thumb is this: if you are buying a display that advertises 4K 240Hz, check the exact mode first, then check the port tier. If the listing does not spell out UHBR20, it does not automatically mean the monitor cannot do high refresh. It may just mean the manufacturer is using a different signal mode or relying on DSC.
Why 4K 240Hz Pushes Bandwidth Hard
4K at 240Hz is demanding because it combines two heavy loads at once: a very large pixel count and a very fast refresh rate. That is why the question is rarely "is DP 2.1 good?" and more often "which mode is this monitor actually using?"
A DisplayPort 1.4 bandwidth guide is useful here because it shows why older links top out much lower than UHBR-class links. In practice, buyers often hit one of three outcomes: native 4K 240Hz on a very high-bandwidth path, compressed 4K 240Hz on a lower path, or a lower refresh setting that is easier to run. See also Why One 1.4 Interface Standard Can Run 4K 144Hz on Monitors While One 2.0 Interface Standard Usually Cannot.
That is why the question "uhbr20 vs dp 1.4 for gaming monitor" does not have one universal answer. If you only care about smooth play and the monitor offers a compressed 4K 240Hz mode, DP 1.4 may still be workable. If you want the cleanest native path with the fewest compromises, a higher-tier connection is more comfortable.
In real buying terms, DP 1.4 is not a dead end. It is just the point where the rest of the signal chain matters more, especially compression support and the exact timing mode. Background reading on how the bandwidth math changes at 4K 240Hz is easier to understand if you think of it as a road-width problem: the image data is the traffic, and the cable class is the lane count.
If a monitor is advertised as 4K high refresh but only lists DP 1.4, that is not automatically a red flag. It is a sign to check whether the spec relies on DSC or whether the monitor simply tops out at a lower mode in native form. The practical question is not "does it have the newest label?" but "does it run the mode I plan to use?"
Check the Full Signal Path
The GPU port, monitor input, cable, and selected mode all have to line up. VESA's note on UHBR cable certification is the key reminder: a cable can remove one bottleneck, but it cannot unlock a mode that the GPU or monitor does not support.
| Factor | What To Verify | Why It Matters | Common Mistake |
|---|---|---|---|
| GPU output | Does the graphics card support the needed DisplayPort tier? | The GPU can cap the link before the monitor ever sees the signal. | Assuming every modern GPU has the same DP 2.1 tier. |
| Monitor input | Does the monitor list the mode you want, such as native 4K 240Hz or a compressed fallback? | The panel and scaler determine what the display can accept. | Reading "DP 2.1" as a guarantee of UHBR20. |
| Cable class | Is the cable rated for the intended tier, such as DP80 for full UHBR20 paths? | The cable must be able to carry the chosen mode reliably. | Thinking a better cable upgrades an unsupported port. |
| Compression support | Does the mode depend on DSC or a similar fallback? | This often decides whether DP 1.4 can still reach a high refresh rate. | Assuming every 4K 240Hz mode is uncompressed. |
| Final setting | Which exact resolution, refresh rate, and color format are active in Windows or the GPU panel? | The active mode is what matters, not just the marketing spec. | Buying for the box label instead of the actual output mode. |
A certified DP80 cable is worth considering when the rest of the hardware is already aiming at UHBR20-class operation. It is not a magic fix. If the GPU only supports a lower tier, or if the monitor only exposes a lower native mode, the cable is not the limiting factor.
For shoppers building a new setup, the safest order is: verify the monitor mode, verify the GPU output tier, then buy the right cable. That prevents the common mistake of overbuying a premium cable before confirming the display can actually use it.
When a setup breaks down, the symptom is usually simple: the screen drops to a lower refresh rate, forces a fallback mode, or will not hold the target setting. In those cases, the problem is usually not "DP 2.1 versus DP 1.4" in isolation. It is the whole chain.
Which Nearby KTC Monitors Make More Sense
If you do not need the absolute highest 4K 240Hz path, a nearby 4K or 1440p option can be easier to live with. The 4K Monitor collection is a better starting point if you want to compare 4K refresh-rate trade-offs without forcing the fastest possible link. The 4K & 5K High-Refresh Monitors collection expands those choices further.
For a simpler 4K gaming setup, the KTC 27" 4K 160Hz/320Hz 90W Gaming Monitor | H27P6 is a more modest step than chasing 4K 240Hz. It gives you a verified 4K high-refresh path, plus a lower-speed dual mode if you want a competitive fallback. The KTC 27" 4K 160Hz/1ms HDR400 Gaming Monitor | H27P22S offers another nearby 4K option when 240 Hz is not required.
If you want sharper-than-1080p play without pushing bandwidth as hard as 4K 240Hz, the 2K Monitor collection is the easier fit. That is often the better choice when you care more about smoothness and frame rate headroom than about 4K detail at the edge of current link limits.
A second practical 4K alternative is the KTC Mini LED 27" 4K 160Hz HDR1400 Gaming Monitor | M27P6. It is not a 240Hz monitor, but it is a good example of a buyer-friendly compromise when you want strong HDR and high refresh without making the entire setup chase the highest bandwidth tier.
The easiest way to think about it is this: if your main goal is maximum refresh at 4K, keep looking at the 240Hz class. If your goal is a stable, lower-friction setup that still feels fast, 4K 160Hz or 1440p high refresh usually makes more sense.
Pick the Right Setup for Your Goal
- Start with the mode you actually want to run. If you do not truly need 4K 240Hz, you may not need UHBR20 either.
- Check the GPU and monitor ports before buying anything else. The link only works at the tier both sides can support.
- Match the cable to the target class after you confirm the hardware. A certified cable removes one risk, but it does not expand unsupported hardware.
- Verify the final output mode in the OS or GPU control panel. That is the only setting that tells you whether the whole path is working as planned.
One useful decision sentence is this: if your monitor already does the mode you want at DP 1.4 with DSC, you may not need to upgrade the cable path first. If you want the cleanest native 4K 240Hz path and your hardware supports it, then DP 2.1-class gear becomes more relevant.
Another boundary is just as important: if the monitor or GPU only supports a lower tier, buying a premium cable will not fix the bottleneck. In that situation, a verified lower-tier setup is usually the better purchase.
What to Buy When the Goal Flips
If your goal is pure 4K sharpness with high refresh, keep the focus on the actual monitor mode rather than the branding label. If your goal is simpler compatibility, favor a display that clearly lists the exact refresh and signal requirements you want to use.
For many buyers, the cleanest path is not the most expensive one. It is the path where the monitor, GPU, and cable all agree on the same mode with the fewest conversion steps. That is why a measured choice often beats an automatic upgrade.
If you are cross-shopping monitors, start with the category pages first, then narrow by the exact refresh rate and input spec. If you are cross-shopping cables, choose the cable only after the monitor mode is confirmed. That order keeps the budget aligned with the actual bottleneck.
FAQs
Q1. Do I Need DP 2.1 for 4K 240Hz on a Gaming Monitor?
Not always. If the monitor uses DSC or another fallback, DP 1.4 may still work for some 4K high-refresh setups. The key is the exact mode the monitor supports, not the version label alone.
Q2. What Is the Difference Between UHBR20 and DP 1.4?
UHBR20 is a much higher DisplayPort 2.1 bandwidth tier, while DP 1.4 is an older, lower-capacity standard. In practical terms, UHBR20 gives the link more room for native high-refresh 4K, while DP 1.4 is more likely to rely on compression or lower timing modes.
Q3. Can a Certified DP80 Cable Fix a 4K 240Hz Setup?
It can help if the cable is the weak link, but it cannot fix an unsupported GPU or monitor input. Think of it as removing one possible bottleneck, not as a guarantee that the target mode will appear.
Q4. What Should I Check Before Buying a DisplayPort 2.1 Monitor?
Check the GPU output tier, the exact monitor input spec, whether the advertised mode is native or compressed, and the cable class you will use. If those four pieces do not match, the setup may fall back to a lower mode.
Q5. Can DP 1.4 Still Be Enough for High-Refresh 4K Gaming?
Yes, in some setups. It can be enough when the monitor supports DSC or when you are comfortable with a lower refresh mode. It is less ideal if your goal is the cleanest native 4K 240Hz path with minimal compromises.
The Practical Answer for Most Buyers
If you want the shortest answer to do i need dp 2.1 for 4k 240hz monitor, the answer is no, not universally. Need depends on the exact monitor mode, compression support, and the full signal path. Check the mode first, then match the GPU and cable to it. That keeps you from overspending on a spec you may not actually use. Verify GPU and monitor tiers before choosing cables or collections.
