Properly calibrated Black Equalizer settings give competitive FPS players a tangible edge by revealing enemies hidden in dark corners without destroying overall contrast. The key is treating it as a precision gamma tool rather than a blanket brightness boost: start conservatively, test with standardized patterns, and adjust per panel type and game engine so you maintain target separation while avoiding washed-out highlights or eye strain.

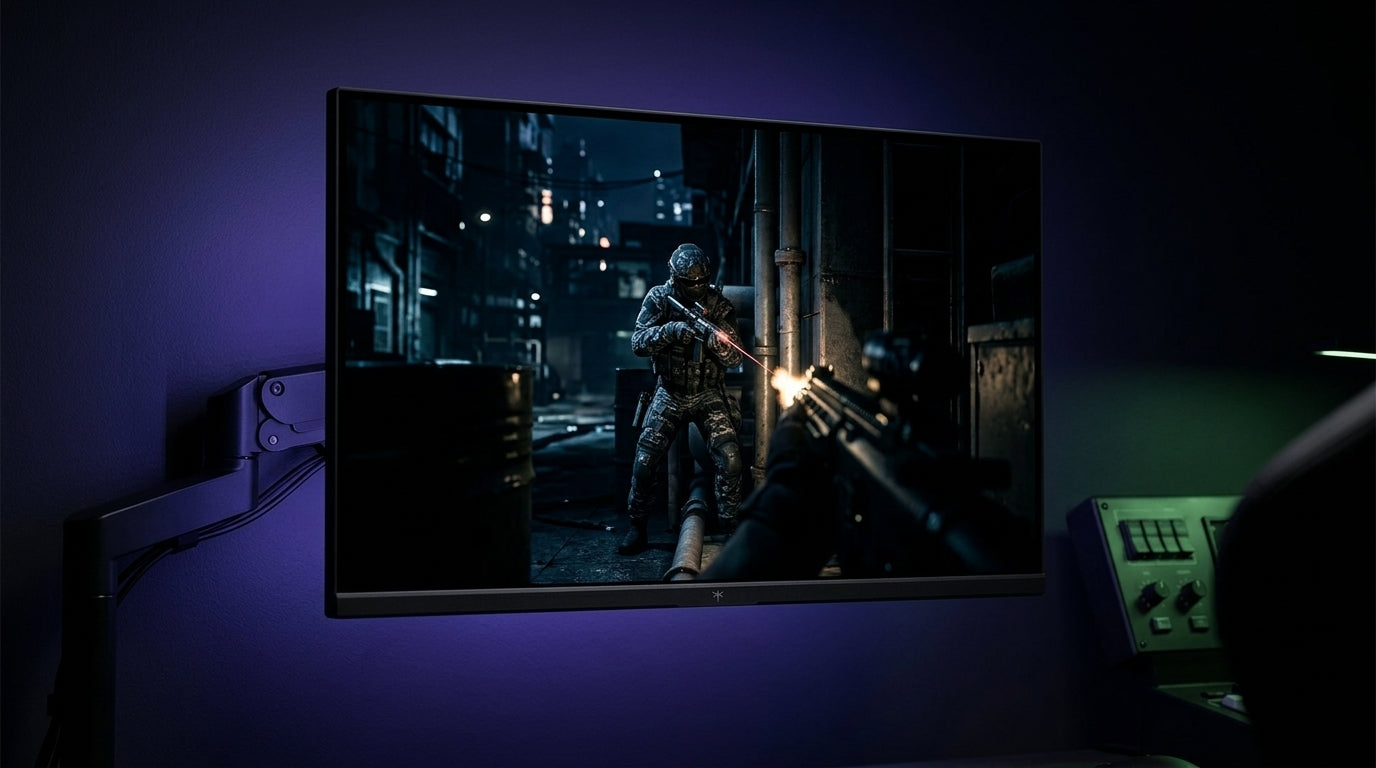

Black Equalizer selectively lifts the gamma curve in dark tones, brightening shadows while leaving bright areas and highlights largely unaffected. Unlike simply raising brightness or adjusting overall gamma, it targets the lower end of the luminance range. This helps in titles like CS2, Valorant, and Call of Duty where opponents often lurk in shadowed doorways or corners. When left at default, many monitors crush these dark areas into pure black, hiding movement cues that can decide a round.
The Tactical Role of Black Equalizer in Competitive FPS
In ranked play, every millisecond of visual information counts. Standard monitor settings often prioritize vibrant colors over shadow detail, leaving players guessing at movement in low-light areas. Black Equalizer addresses this by adjusting the display's response in the darkest grays, improving enemy visibility in dark scenes without overexposing bright muzzle flashes or skyboxes.
It differs from basic brightness (which raises the entire image uniformly) or gamma (which shifts the overall curve). Black Equalizer applies a non-linear lift focused on the black floor. This distinction matters because over-relying on brightness can flatten the entire image, while targeted shadow boosting preserves the contrast needed for quick target acquisition.
For most competitive players, enabling Black Equalizer becomes worthwhile once you move beyond casual play and start optimizing every visual setting for reaction advantage. The feature shines in dim-room setups typical of serious setups, but requires calibration to avoid the common pitfalls of crushed blacks or gray haze.
Step-by-Step Calibration: Tuning for Maximum Shadow Detail
Calibration starts with a repeatable test rather than guessing in-game. The Lagom Black Level test pattern serves as the industry-standard reference for manual tuning. Load the page in your browser or run it fullscreen, then access your monitor's on-screen display menu.
Set Black Equalizer to its default (usually 0 or 5 depending on the model), then gradually increase the level while observing the row of dark squares against the black background. The goal is to make squares 1 through 4 just barely distinguishable without the background shifting from true black to noticeable gray. If the entire field begins to look washed out, you've gone too far and are losing overall contrast.
After the test pattern, verify in a practice match. Adjust in increments of 1-2 until you can spot movement in the darkest corners without highlights clipping. Remember that ambient room light affects perception: a completely dark room may tolerate slightly higher settings than one with desk lamps.
This method works across most 2026 high-refresh gaming monitors because it relies on human perception rather than specific firmware. Save the resulting value as a user preset so you can quickly recall it after driver updates or game patches.
Panel-Specific Calibration: Fast IPS vs. VA Performance Tuning
Your monitor's panel technology changes how aggressively you should apply Black Equalizer. Fast IPS panels like those in the H25X7 or H27E6 already offer strong native response and relatively low contrast floors. Here, conservative settings (typically 3-5 out of 10) improve shadow visibility while preserving the target-to-background separation critical for headshots.
VA panels, such as the curved H27S17, exhibit slower transitions from true black, which can appear as dark smearing during fast motion. Lifting the black floor modestly with higher Black Equalizer levels (7-9) can reduce the perception of this trailing by moving pixels out of their slowest response zone. However, this remains a visual mitigation rather than a true reduction in response time.
The difference is stark in practice. Aggressive settings on VA panels help motion clarity in dark maps but risk turning subtle shadows into uniform gray, hiding faint enemy outlines. On IPS, the same aggressive approach quickly creates a hazy veil that reduces overall clarity. Test both extremes in a deathmatch and note which feels more consistent for your playstyle.
For the latest high-refresh models, combine panel-specific tuning with your monitor's built-in FPS or User presets. This lets you maintain separate profiles for different games or times of day without resetting the OSD every session.
The Mini-LED Conflict: Balancing Black Equalizer with Local Dimming
Mini-LED monitors like the M27P6 and M27T6S add another variable: their local dimming zones create exceptional contrast, but digital gamma adjustments can fight against the physical backlight control.
When both Black Equalizer and local dimming run at high levels simultaneously, the result is often gray blooming—where dark areas gain unwanted illumination and the precise zone control that makes Mini-LED valuable becomes compromised. VESA DisplayHDR performance criteria emphasize strict black-level preservation, which high Black Equalizer can undermine in HDR modes.
A practical rule for competitive play: in SDR competitive modes, prioritize Black Equalizer (Medium to Aggressive) and set local dimming to Off or Low for consistent shadow visibility across the entire screen. In HDR titles or cinematic moments, keep Black Equalizer low (0-2) and let the Mini-LED zones handle contrast naturally. This avoids the muddy compromise where neither technology performs at its best.
The chart below visualizes safe starting zones across common panel and mode combinations.
The heatmap uses color intensity to indicate recommended starting tiers (darker = stronger preference). It clarifies that aggressive Black Equalizer works best on VA panels in SDR competitive modes but becomes risky with HDR or strong local dimming.
Title-Specific Optimization: CS2, Valorant, and Call of Duty
Different game engines render shadows and character models uniquely, so a single Black Equalizer value rarely works perfectly across titles. Valorant's relatively flat, stylized lighting often needs only subtle lifting (3-5) to maintain clean target separation. CS2's Source 2 engine creates deeper, more varied shadows across maps like Ancient versus Dust 2, making map-specific presets valuable.
Call of Duty tends toward high-contrast interiors with bright muzzle flashes, where excessive Black Equalizer can clip highlight details and hide enemies against bright windows. Create separate monitor presets for each title and switch them during warm-up. For CS2, many players keep two profiles: one tuned for dark maps and another for brighter environments.
The Calibrate Your Gaming Monitor in 5 Steps for a Pro-Level Upgrade offers additional techniques for verifying these game-specific adjustments translate from test patterns to actual gameplay.
Common Mistakes and Visual Health Boundaries
The most frequent error is pushing Black Equalizer too high in search of perfect visibility. This creates a washed-out, muddy image where subtle enemy outlines disappear into uniform gray rather than true black. The loss of contrast ultimately hurts performance more than the original shadow problem.
Excessive contrast and brightness settings also contribute to digital eye strain, according to guidance from the American Optometric Association. Symptoms include headaches, blurred vision, and dry eyes that can shorten effective practice time. If you notice fatigue after long sessions, reduce Black Equalizer by 2-3 points and retest.
Another common issue is highlight clipping, where bright areas lose detail. In competitive shooters this can hide important visual cues like enemy silhouettes against explosions or sky. Always check both dark corners and bright windows after calibration.
Our broader How to Verify Your Display Calibration Is Actually Working guide provides quick self-check methods using real gameplay scenes rather than just test patterns.
Saving and Iterating Your Competitive Profile
Modern KTC gaming monitors include multiple FPS or User presets that let you store different Black Equalizer, brightness, and gamma combinations. Assign one for daytime play, another for evening sessions, and a third for specific tournaments. The ability to switch profiles quickly becomes essential when changing games or adapting to new maps.
After saving, test thoroughly in local bot matches or deathmatch servers before jumping into ranked. Note how the settings feel after 30 minutes of play, as initial impressions can change once your eyes adapt. Ambient lighting shifts between day and night often require minor tweaks even with saved profiles.
For players using multiple monitors or switching between PC and console, document your settings in a simple note. Revisit them every few months as game updates and driver changes can subtly alter how the display renders shadows.
The What Is Monitor Ghosting and How Do You Eliminate It? article complements this calibration process by addressing motion clarity issues that sometimes appear alongside shadow tuning adjustments.
FAQs
What is a good starting Black Equalizer value for competitive FPS games?
Most players find 4-6 works as a safe starting point on IPS panels in SDR mode. VA panel users often prefer 7-9 to reduce perceived dark smearing. Always verify with a black level test pattern and adjust based on your specific room lighting and game.
Does Black Equalizer work differently on IPS versus VA panels?
Yes. Fast IPS panels benefit from conservative settings to preserve their already limited native contrast. VA panels can handle more aggressive levels to mitigate their slower black-to-gray transitions, though this never fully replaces the motion clarity of high-refresh IPS.
Should I use Black Equalizer with HDR or local dimming enabled?
Generally no for competitive play. High Black Equalizer can counteract the precise contrast control of Mini-LED local dimming and HDR modes, creating gray blooming. Keep Black Equalizer low when using HDR and let the display's zones manage shadow detail.
Can too much Black Equalizer cause eye strain?
Yes. Excessive lifting of dark areas often forces higher overall brightness or contrast, both known contributors to computer vision syndrome. If you experience fatigue, headaches, or dry eyes, lower the setting and ensure your room lighting isn't too dim.
How often should I recalibrate my Black Equalizer settings?
Recalibrate after major game updates, graphics driver changes, or when switching monitors. Many competitive players also adjust seasonally as ambient room light changes between summer and winter. A quick 30-second test pattern check takes little time but maintains your edge.
Is Black Equalizer the same as increasing monitor brightness?
No. Brightness raises the entire image uniformly, often washing out highlights. Black Equalizer targets only the darkest tones through gamma curve adjustment, preserving bright-area detail while improving shadow visibility—making it far more suitable for competitive play.
