For 4K 160Hz gaming, the cable and port choice is a technical necessity rather than a preference. Both DisplayPort 1.4 and HDMI 2.1 fall short of the raw bandwidth needed for uncompressed 4K 160Hz at 10-bit color, so the right connection, cable certification, and monitor settings determine whether you reach the full refresh rate or encounter capped performance and signal instability.
DisplayPort 1.4 vs HDMI 2.1: Which Bandwidth Wins for 4K 160Hz?
DisplayPort 1.4 provides a total bandwidth of 32.4 Gbps with roughly 25.92 Gbps usable after overhead, while HDMI 2.1 reaches 48 Gbps. A 4K 160Hz 10-bit 4:4:4 signal requires approximately 53.3 Gbps uncompressed, which exceeds both standards. This gap makes compression or reduced chroma sampling mandatory on current hardware. KTC monitors bridge the difference through VESA Display Stream Compression on DisplayPort 1.4 and Fixed Rate Link signaling on HDMI 2.1 ports. How to Choose the Perfect Monitor to Match Your Graphics Card
Bandwidth Comparison for 4K 160Hz Gaming
Usable bandwidth versus the uncompressed requirement shows why DSC or FRL is required for 4K 160Hz at 10-bit color.
Show data
| Interface | Bandwidth (Gbps) |
|---|---|
| DP 1.4 usable | 25.92 |
| HDMI 2.1 FRL | 48 |
| 4K 160Hz 10-bit uncompressed | 53.3 |
Does DisplayPort 1.4 Support 4K 160Hz? The Role of DSC
DisplayPort 1.4 can deliver 4K 160Hz, but only when VESA Display Stream Compression is active. DSC applies up to a 3:1 compression ratio that remains visually lossless for gaming content, preserving full 10-bit color and 4:4:4 chroma without forcing 8-bit output or 4:2:2 subsampling. Modern GPUs from the RTX 30/40 and RX 6000/7000 series handle DSC at the hardware level, so the feature activates automatically on compatible KTC models such as the H27P22S and M27P6. The latency added by DSC stays below one scan line, which is imperceptible during gameplay. Prioritizing 160Hz with DSC enabled produces smoother motion than dropping to 120Hz for an uncompressed signal.
Why HDMI 2.1 is Often the Better Choice for High-Refresh Gaming
HDMI 2.1 supplies greater raw headroom at 48 Gbps and uses Fixed Rate Link signaling instead of the older TMDS architecture found in HDMI 2.0. This extra margin reduces the compression ratio needed compared with DisplayPort 1.4 and supports console features such as 4K 120Hz with VRR on PS5 and Xbox Series X. For mixed PC and console setups, reserve HDMI 2.1 ports for the console while routing the PC through DisplayPort 1.4. Both connections reach 4K 160Hz on RTX 40-series cards once DSC is active, so the practical advantage of HDMI 2.1 appears mainly when connecting devices that lack DisplayPort output. Verify FRL support and look for the Ultra High Speed certification mark rather than relying on the HDMI 2.1 label alone.
Cable Check: Verifying 'Ultra High Speed' vs Standard Cables

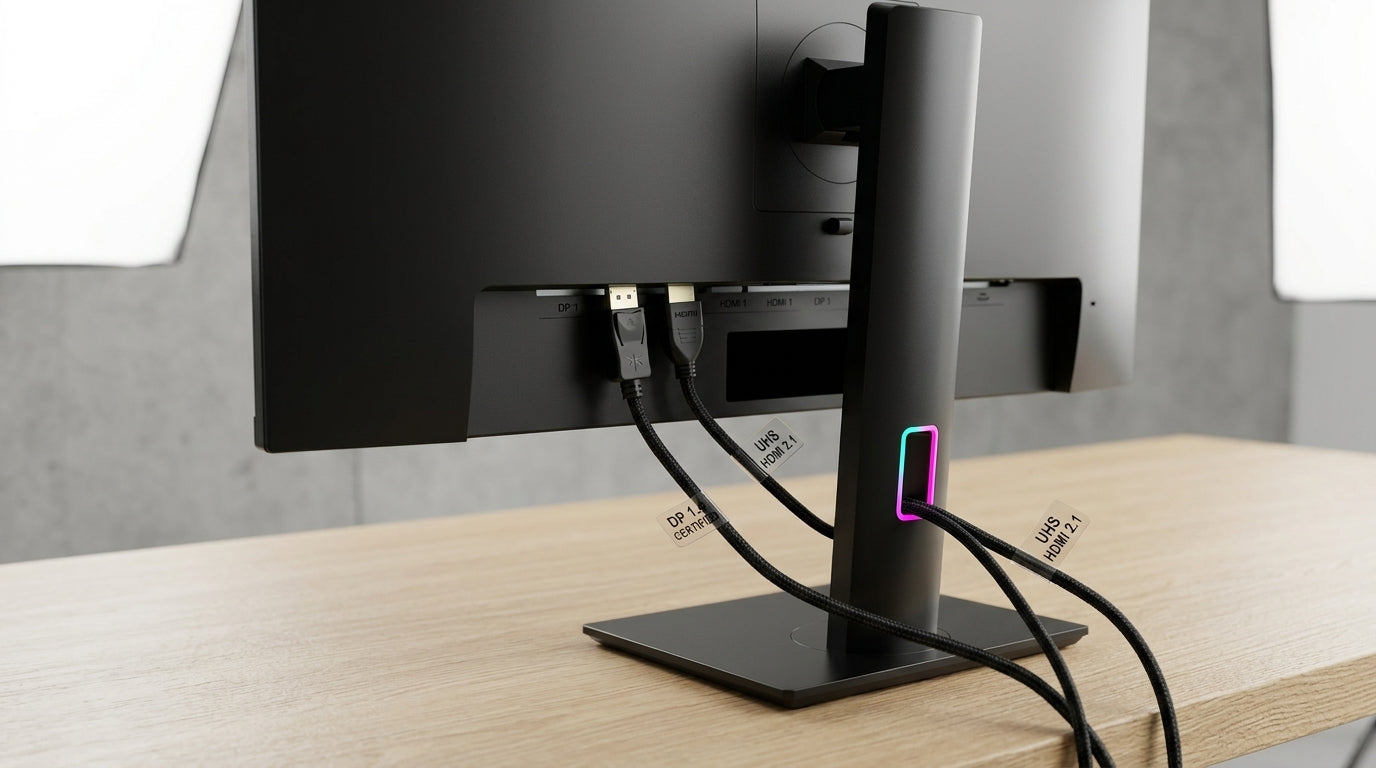

Many cables labeled HDMI 2.1 are limited to 18 Gbps TMDS signaling and will cap a monitor at 4K 60Hz. Only cables carrying the official Ultra High Speed hologram and QR code guarantee the full 48 Gbps needed for stable 4K 160Hz operation. On the DisplayPort side, choose VESA-certified HBR3 cables to maintain signal integrity at high refresh rates. KTC monitors such as the H32P22P include HDMI 2.1 and DP 1.4 ports that work reliably once paired with certified cables. Using uncertified cables often produces flickering, black screens, or handshake failures that users mistakenly attribute to the monitor.
Optimized Setup: Connecting RTX 40 Series and Consoles
The most stable configuration for users with both a PC and a console is to connect the RTX 40-series GPU via DisplayPort 1.4 and reserve an HDMI 2.1 port for the PS5 or Xbox Series X. Because current NVIDIA cards top out at DisplayPort 1.4a, they gain no extra capability from HDMI 2.1 on the PC side. This two-cable approach also enables automatic input switching on KTC monitors without manual intervention. Models such as the H27P6 and M27P6 provide the necessary port mix and support dual-mode operation for users who occasionally switch between 4K desktop work and high-refresh gaming.
Fixing the Refresh Rate Cap: Troubleshooting Your 160Hz Connection
If the monitor remains stuck at 60Hz or 120Hz, first confirm that the correct high-refresh mode is enabled in the KTC OSD menu, often labeled HDMI 2.1 Mode or Overclock. Next, verify that the cable meets Ultra High Speed or HBR3 certification. In the NVIDIA or AMD control panel, set output color depth to 10-bit and dynamic range to full. Signal dropouts during VRR or HDR sessions frequently trace back to marginal cables rather than the monitor hardware itself. What Is Screen Tearing And How Do You Fix It? How HDMI Dynamic HDR Metadata Actually Works Between Source and Display
Final Checklist: How to Verify Your 4K 160Hz Setup
Check that the cable carries the Ultra High Speed or HBR3 certification mark. Enable the high-bandwidth mode in the monitor OSD. Confirm 160Hz and 10-bit color appear in Windows display settings. Test VRR stability under load to ensure the connection holds variable refresh rates without flicker. How to Connect Your PS5 or Xbox Series X to a Gaming Monitor DisplayPort Alternate Mode Over USB-C: How Video, Data, and Power Share the Same Lanes
Frequently Asked Questions
Does DisplayPort 1.4 Require DSC for 4K 160Hz?
Yes. Uncompressed 4K 160Hz at 10-bit exceeds DisplayPort 1.4 bandwidth, so DSC must activate to reach the full refresh rate while keeping 10-bit color and 4:4:4 chroma.
Can I Use Any HDMI Cable Labeled 2.1 for 160Hz?
No. Only cables certified under the Ultra High Speed program reliably support the 48 Gbps needed. Standard 18 Gbps cables sold with an HDMI 2.1 label will limit performance.
Do RTX 40-Series GPUs Benefit From HDMI 2.1 Over DisplayPort 1.4?
No meaningful benefit exists for PC use. Both interfaces rely on DSC to achieve 4K 160Hz on these cards, so DisplayPort 1.4 remains the practical choice for desktop GPUs.
How Do I Confirm 10-Bit Color Is Active?
Open the NVIDIA or AMD control panel and set output color depth to 10-bit. Then verify the setting in Windows Advanced display settings and run a test pattern that highlights banding if the depth drops.
Will Enabling DSC Add Noticeable Input Lag?
No. DSC adds less than one scan line of latency, which remains imperceptible during gaming. The smoother frame delivery from 160Hz outweighs any theoretical uncompressed path at 120Hz.
